    DEWALT 20V MAX XR 3 x 360 High Precision Green Laser

    Mfr.: Dewalt
    Item #: I070341
    Mfr. #: DCLE34033D1
    *
    Pickup at Buena Park | Change Delivering to 92111 | Change

    Price: Call for pricing
    WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

    Description

    Master complex layout tasks with unparalleled accuracy. The 12V/20V MAX* XR High Precision 3 X 360 Line Laser offers exceptional precision and impressive accuracy over long distances. Engineered to streamline setup and boost your productivity, this dual-voltage laser is 40% more precise than the DCLE34030 Laser. It features a convenient fine adjust knob for effortless micro-tuning of plumb lines. This comprehensive kit includes a 20V MAX* battery, charger, ceiling mount bracket, and detector, so you're ready to go the moment you unbox it.
    • 40% More Accurate - Achieve peak accuracy on site with 1/8 in. precision at 50 ft.
    • Long-Range Visibility - Tackle expansive areas with a visible range up to 230 ft. (70m) and a maximum range of 330 ft. (100m) when paired with the DW0892G detector.
    • Full-Day Runtime - Power through your workday with up to 10 hours of continuous operation on a single charge**.

    Features

    • Dual-Compatibility - Seamlessly power your laser with either a DEWALT 20V MAX* or 12V MAX* battery (12V MAX* battery sold separately).

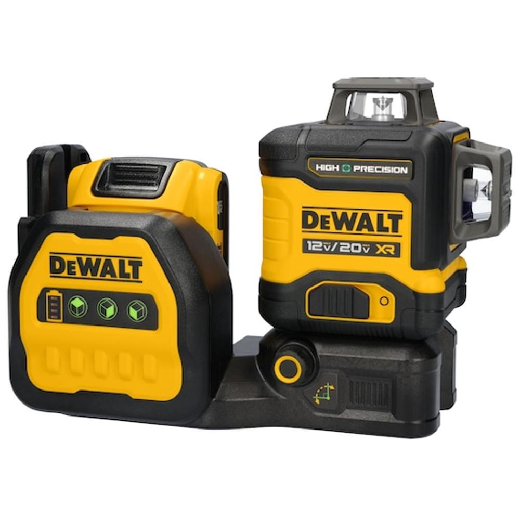

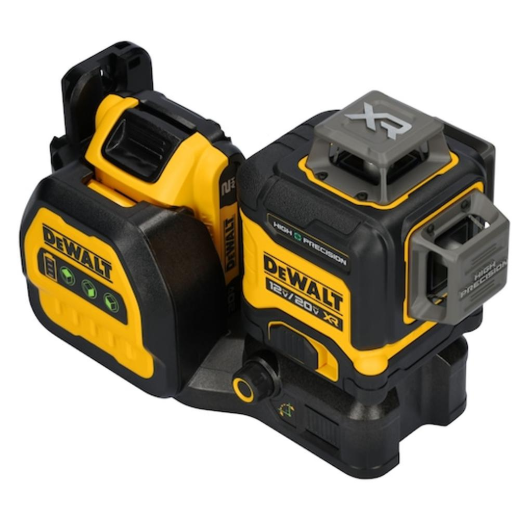

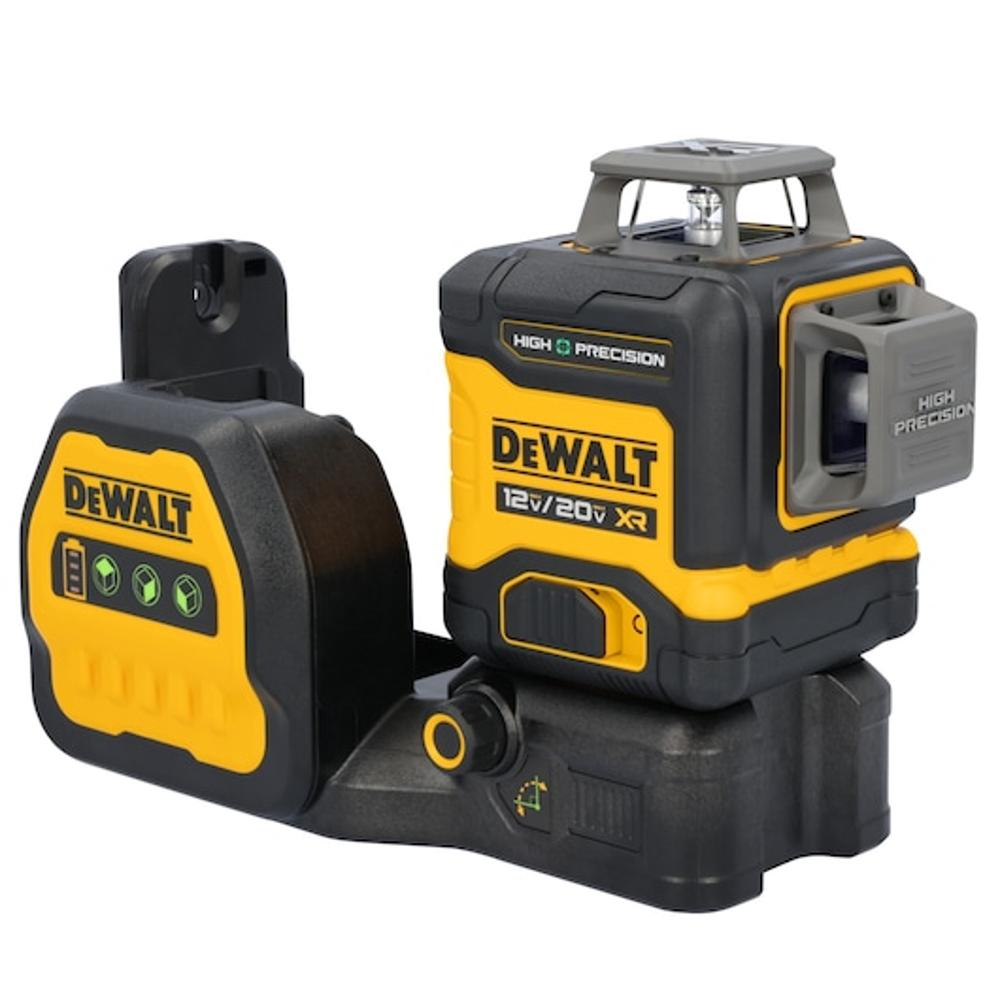

    • Versatile Attachment Options - Effortlessly mount this laser where you need it thanks to its integrated magnetic pivoting base. It features 1/4 in. -20 and 5/8 in. - 11 thread tripod mounts, plus rear-mounted magnets for flush attachment to metal surfaces.
    • IP54-Rated - Safeguard internal components against damage with the robust IP54-rated overmolded housing, providing resistance to water and debris (battery and charger not included).
    • Integrated magnetic pivoting base with 1/4 in.-20, 5/8 in.-11 thread for use with tripod (sold separately)
    • Precision Adjustments - Achieve perfectly aligned plumb lines with the intuitive fine-adjust knob for quick and precise corrections.
    • Out-Of-The-Box Functionality - Be ready to work immediately with this laser kit, which includes a DCB203 battery, charger, ceiling mount bracket, and detector.

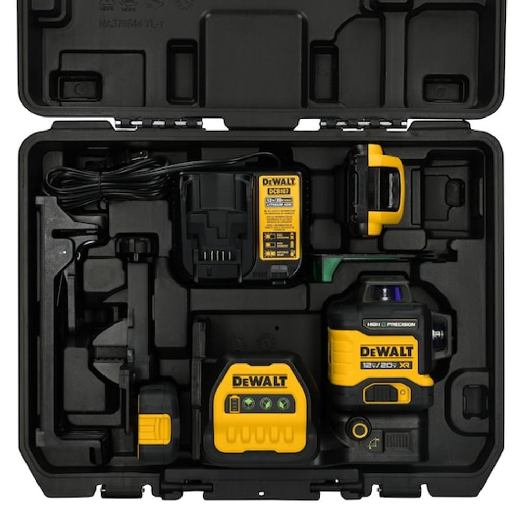

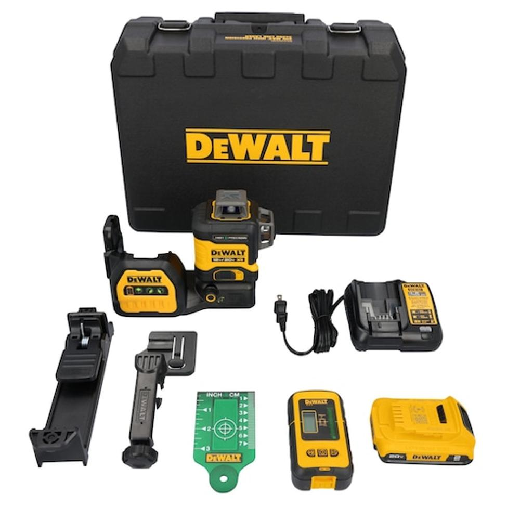

    Includes

    • (1) High Precision 3 X 360 Laser
    • (1) DW0892G Detector with grade rod clamp
    • (1) DCB203 20V MAX* 2.0Ah battery
    • (1) DCB107 Charger
    • (1) Ceiling bracket
    • (1) Target card
    • (1) 9V Battery (for detector)
    • (1) Hard Case
    Products specifications
    Battery Run Time [Hrs] 10
    Battery Source Rechargeable Li-Ion
    Has Pulse Mode Yes
    IP Rating 54
    Is Battery Included Yes
    Laser Accuracy ± 1/8 in. @ 50 ft.
    Laser Beam Color Green Beam
    Laser Beam Projection 3 x 360°
    Laser Classification 2
    Leveling Type Self-leveling
    Line Diagram 3 x 360°
    Materials Housing Plastic + Rubber Overmold
    Number of Batteries Included 2
    Number of Beams 3
    Operating Temperature [C] 4
    Operating Temperature [F] 39.2
    Packaging Plastic Case
    Product Height [in] 6.5
    Product Length [in] 9.5
    Product Weight [lbs] 4
    Product Weight [oz] 64
    Product Width [in] 5.5
    Visible Working Distance - Radius [ft] 230
    Visible Working Distance - Radius [m] 70
    Voltage [V] 20
    Working Distance with Detector [ft] 300
    Working Distance with Detector [m] 330
    Working Distance with Detector - Radius [ft] 330
    Working Distance with Detector - Radius [m] 100
    *
    *
    *
