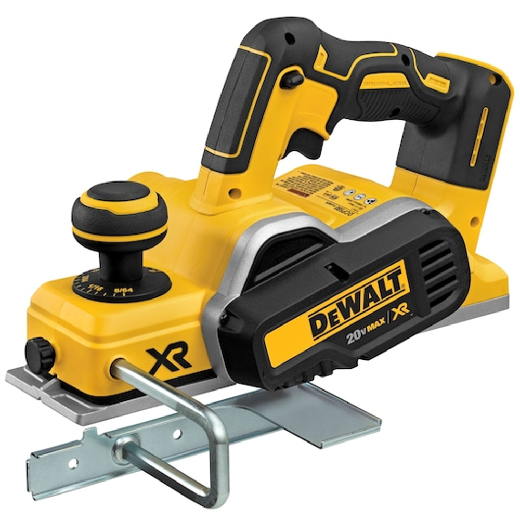

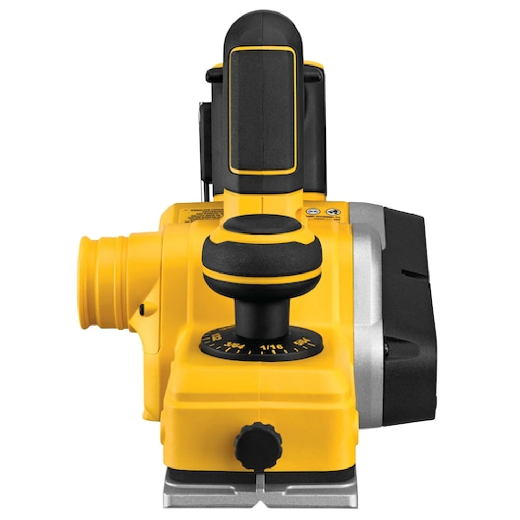

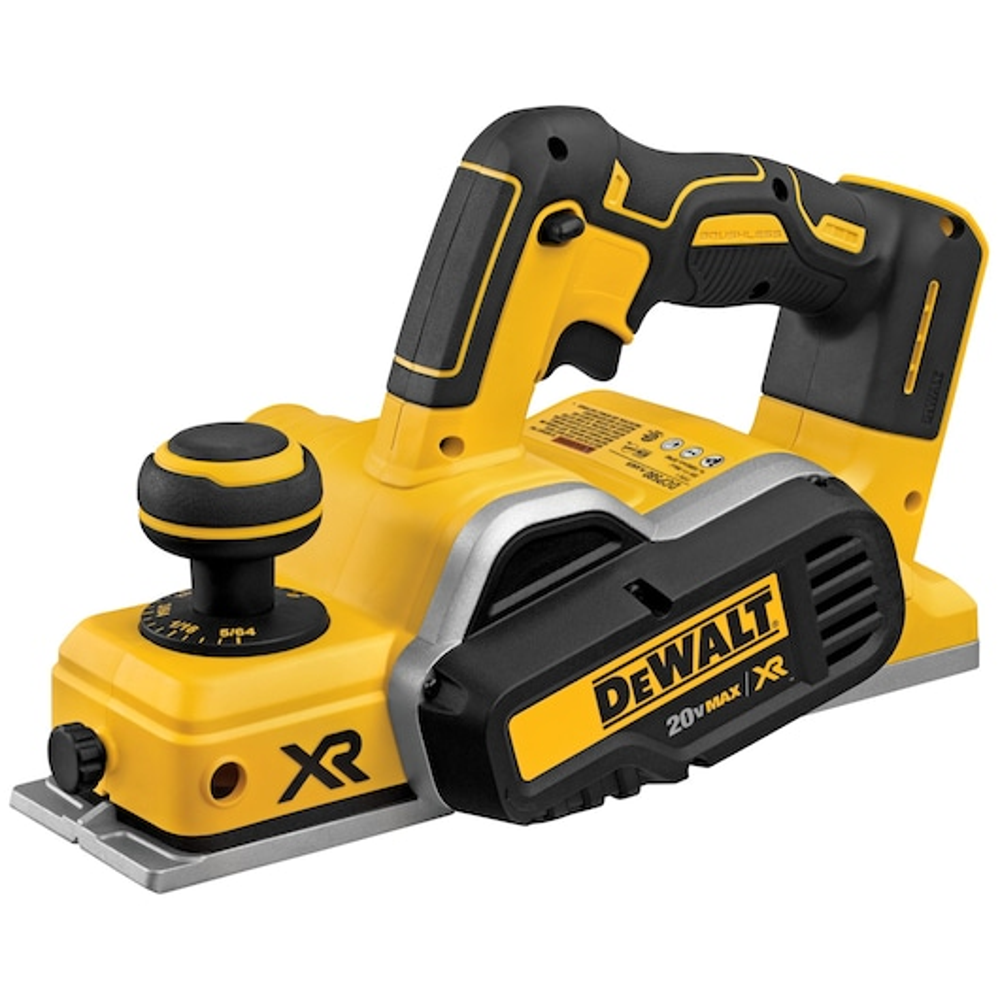

    DEWALT 20V MAX XR Brushless Cordless Planer (Tool Only)

    Mfr.: Dewalt
    Item #: I070637
    Mfr. #: DCP580B
    *
    Pickup at Buena Park | Change Delivering to 92111 | Change

    Price: Call for pricing
    WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

    Description

    • Experience superior power and extended runtime thanks to its advanced Brushless Motor.
    • Achieve rapid material removal with an impressive 30,000 cuts per minute.
    • Tackle projects with precision, featuring a maximum depth of cut of 5/64 in. (2 mm.).
    Unleash peak efficiency with the DCP580B's brushless motor, engineered to maintain consistent speed even under demanding loads. This high-performance planer boasts a 3-1/4 in. width capacity, offering micro-adjustments of depth to 1/256 in. increments, and a rebate capacity of 5/64 in. Weighing in at a mere 6.8 lbs and powered by the robust DEWALT 20V MAX* battery system, this lightweight, cordless tool frees you from corded constraints and allows for effortless transport around any jobsite. Please note: Battery, charger, and dust bag are sold separately.

    Features

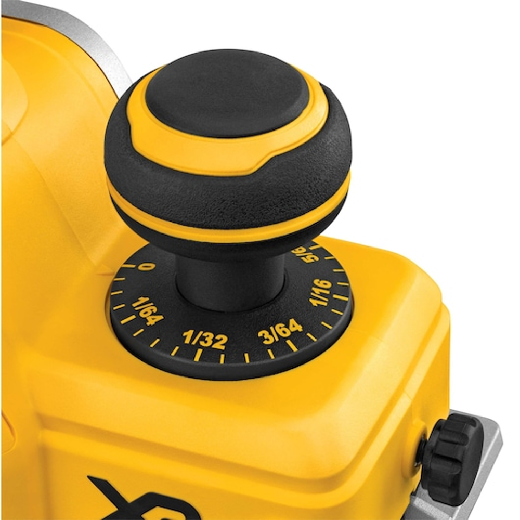

    • Achieve incredibly precise depth control with a calibrated adjustment knob that measures to 1/256 in. (approximately 0.01 mm).
    • Enjoy consistent, parallel cuts thanks to precision-machined front and back aluminum shoes.

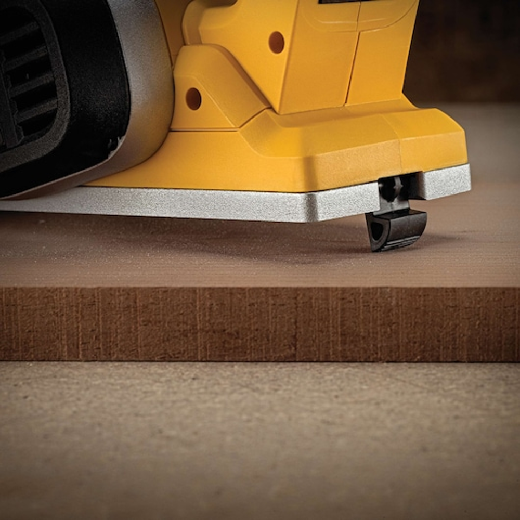

    • Protect your workpiece from marks with the convenient kickstand, allowing you to rest the planer on surfaces without gouging.

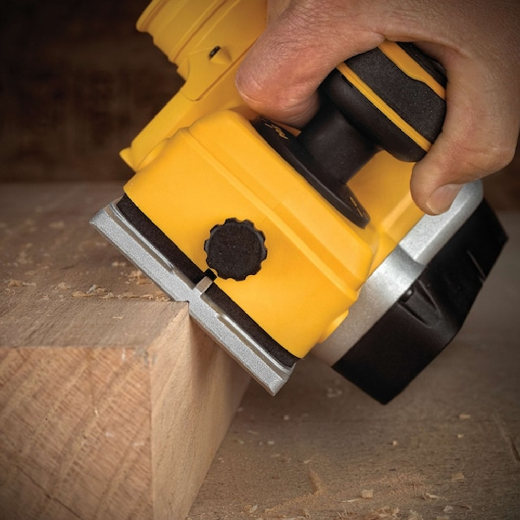

    • Easily create chamfered edges with the precision-machined groove integrated into the front shoe.
    • Benefit from enhanced belt durability and longevity with the advanced Poly-V drive belt.
    • Experience reduced user fatigue and increased comfort during extended use with the ergonomically designed handle.
    • Replacement blades are available under DW6654, Part Number: N447366.
    • Dust Bag (sold separately) can be found under DWV9390, Part Numbers N455893 + N455892.

    Includes

    • (1) Guide Fence
    • (1) Wrench
    • (1) User Guide
    Products specifications
    Battery Type Lithium Ion
    Battery Voltage [V] 20
    Color Yellow, Black
    Is Brushless Yes
    Max. CuttingSawing Depth [in] 5/65
    Max. Cutting Sawing Depth [mm] 2
    Max. Depth of Cut [mm] 2
    No Load Speed [RPM] 15000
    Planing Width [in] 3-1/4
    Power Input [W] 1400
    Power Source Battery
    Product Height [in] 8.9
    Product Height [mm] 226
    Product Length [in] 13.66
    Product Length [mm] 348
    Product Weight [g] 2500
    Product Weight [Kg] 2.5
    Product Weight [lbs] 7.4
    Product Weight [oz] 118.4
    Product Width [in] 8
    Product Width [mm] 203
    RPM 15000
    *
    *
    *
