  • Diamond CC3500 Walk Behind Saw with 30 in Blade Capacity

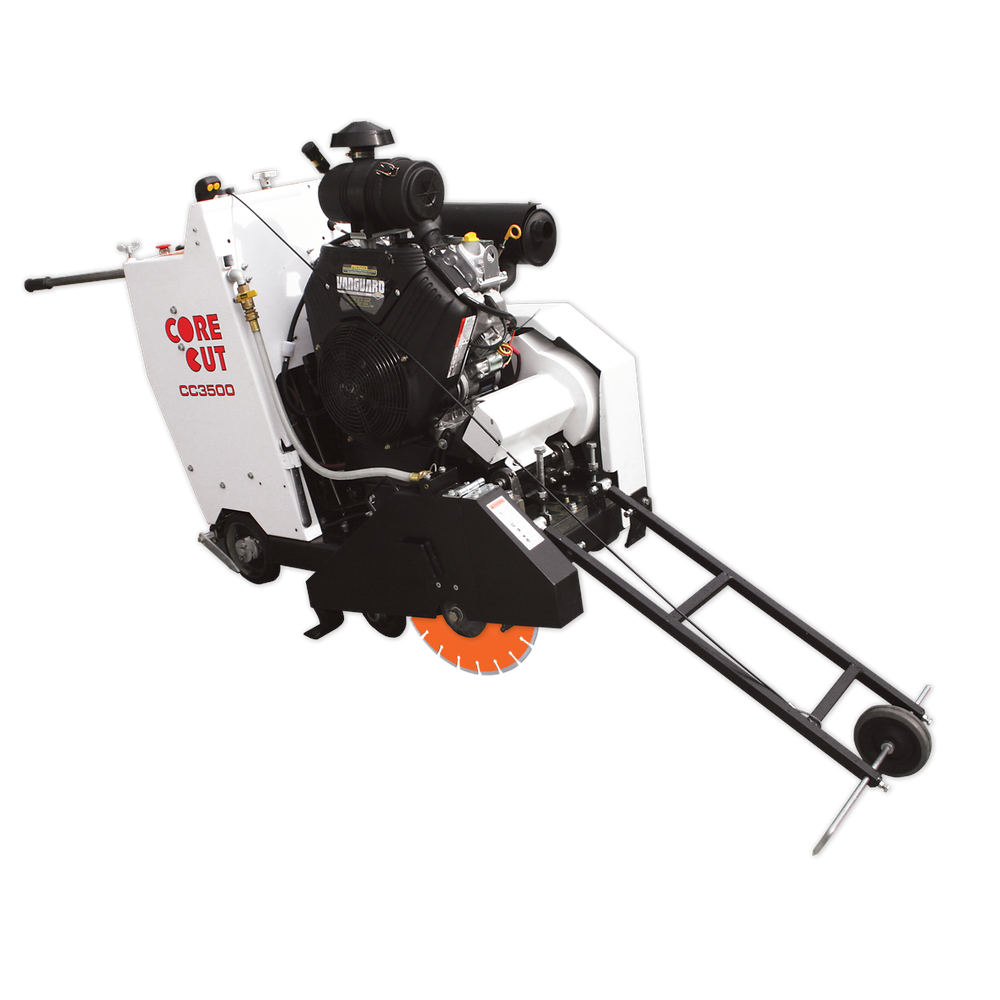

Diamond CC3500 Walk Behind Saw with 30 in Blade Capacity

Mfr.: Diamond Products
Item #: I095766
Mfr. #: 25337
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $29,409.56
i h h

Description

Ideal for municipalities and rental stores, this mid-size walk behind saw features a jackshaft design for full engine power. It offers easy maneuverability with self-propelled drive and fits through a 30 inch door frame.
  • Jackshaft design for full torque
  • 30% more torque with new jack shaft design
  • Strongest frame on the market
  • Easy to maneuver self propelled drive
  • Fits through 30 inch door frame

Features

  • Great mid-size saw for service, utility work and rental
  • Jack shaft allows full engine power
  • Engine adjustment mechanism for belt tightening
  • Strongest frame on the market
  • 30% more torque with jack shaft design

Includes

  • Telescoping front pointer
  • Cutting depth indicator
  • Quick disconnect blade flanges
  • Hour meter
  • Frame lift

Specifications


Maximum depth with 30" blade2-3/8 inchBlade shaft diameter1-3/4 inch
Arbor size1 inch w/drive pinBlade shaft drive6 belt
Blade mountingRight or LeftBlade raise lowerElectro-hydraulic
TransmissionEaton Model 10Drive speed0-200 feet/min
Air filter4 stageFuel capacity6 gallons
Blade capacity30 inchEngine power35 HP
Power sourceGasEngine makemodelBriggs & Stratton Vanguard
Part number5801308Catalog number25337
*
*
*
