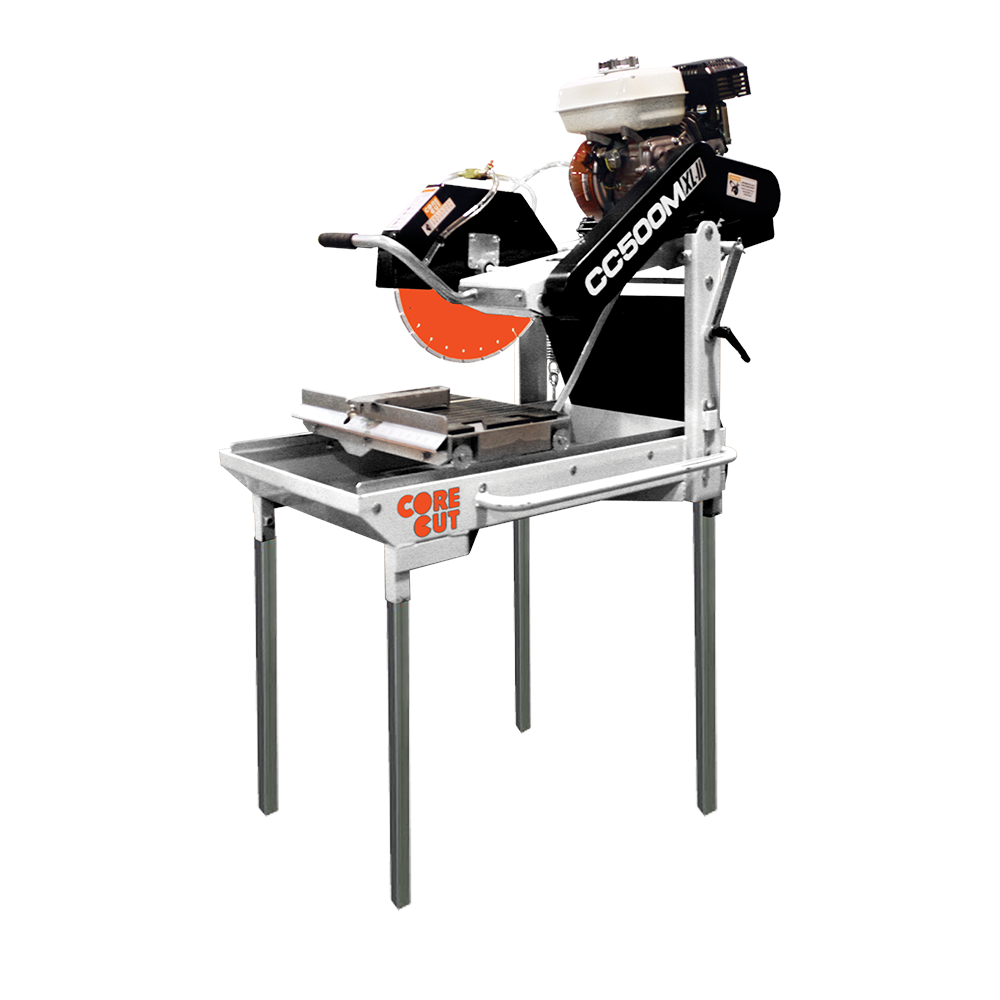

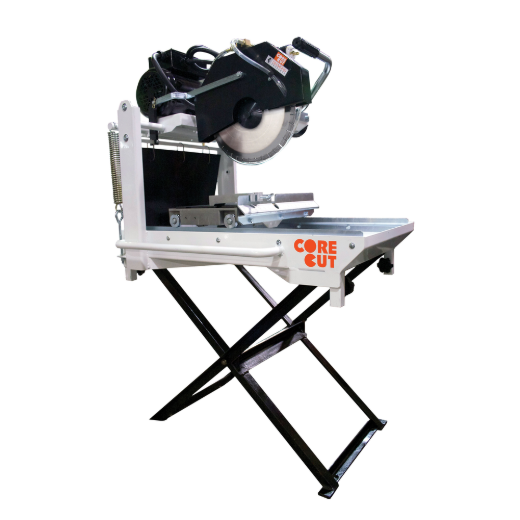

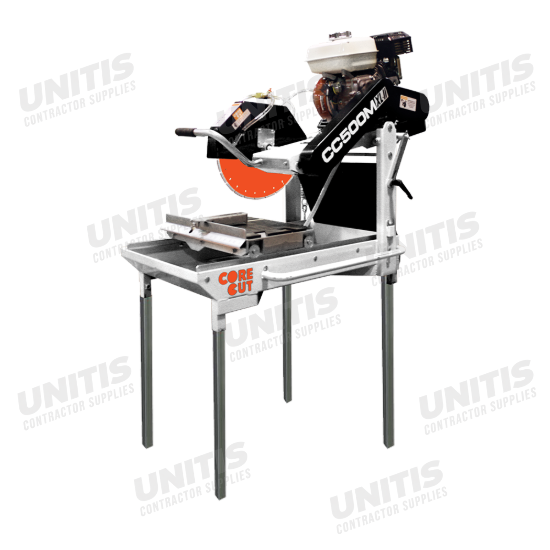

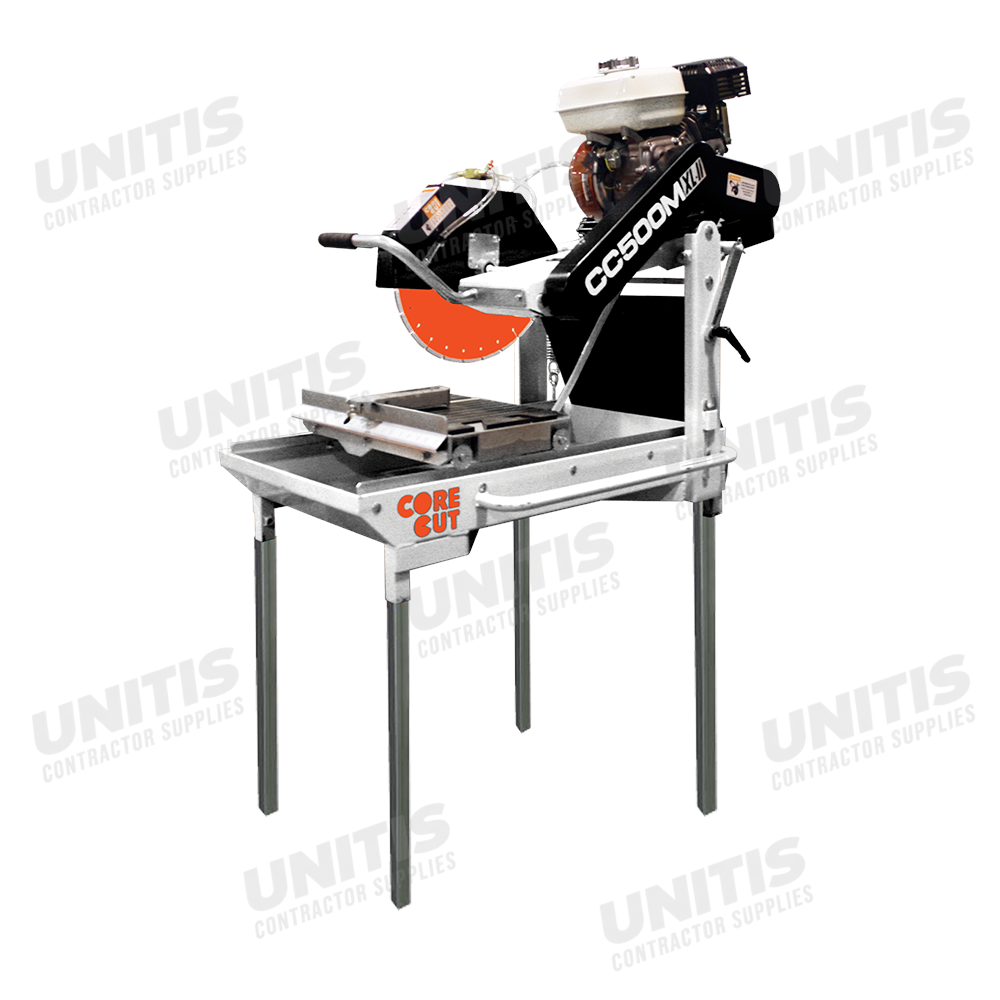

Diamond CC500MXL2 Masonry Saw

Mfr.: Diamond Products
Item #: I095736
Mfr. #: 03725
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4,095.97
i h h

Description

Versatile and powerful 14 inch capacity masonry saw available in gasoline and electric models. Features an open throat design for cutting longer materials and includes a water pump system.

Features

  • Stay level blade guard
  • Removable cutting head
  • Includes water pump
  • Open throat cutting
  • Heavy duty frame design

Includes

  • Water pump

Specifications


Maximum Depth of Cut5 inchBlade Shaft Diameter7/8 inch
Arbor Diameter1 inchBlade Shaft BearingsFlange block ball bearings
Blade Shaft Drive2 beltBlade MountingRight (electric)
Blade RaiseLowerCounterbalanced spring tensionedBlade CoolantDual spray tubes pump fed
Blade Capacity14 inchPower SourceElectric
Motor MakeBaldorMotor Power1.5 HP
PhaseSingle PhaseVoltage115 or 230 volt
Part Number5800799Catalog Number03725
*
*
*
