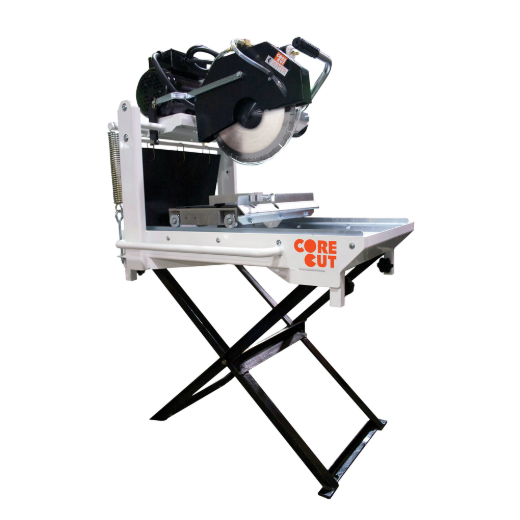

Diamond CC912TS Tile Saw

Mfr.: Diamond Products
Item #: I095738
Mfr. #: 46904
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $1,002.60
i h h

Description

Light-weight and compact tile saw with high performance cutting. It has a 9-inch blade capacity and a 1-inch arbor.

Features

  • Heavy duty table with measuring guide
  • Angle guide plate holds work piece at angles
  • Easily-adjustable parallel cutting guide
  • Quick-release tool-free table mount
  • Easy adjustment miter up to 45 degrees

Includes

  • Parallel Cutting Guide
  • Angle Guide Plate
  • M8 Combination Wrench
  • M19 Combination Wrench

Specifications


Power800 wattVoltage120 volt
PhaseSingle phaseArbor1 inch
Bevel0-45 degreeMax Cutting Depth1-7/8 inch
Max Cutting Depth at 451-7/16 inchWeight34 lbs
Blade Capacity9 inchMotor TypeElectric
*
*
*
