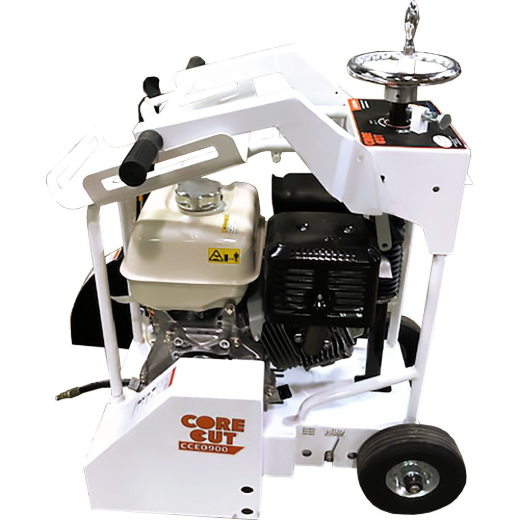

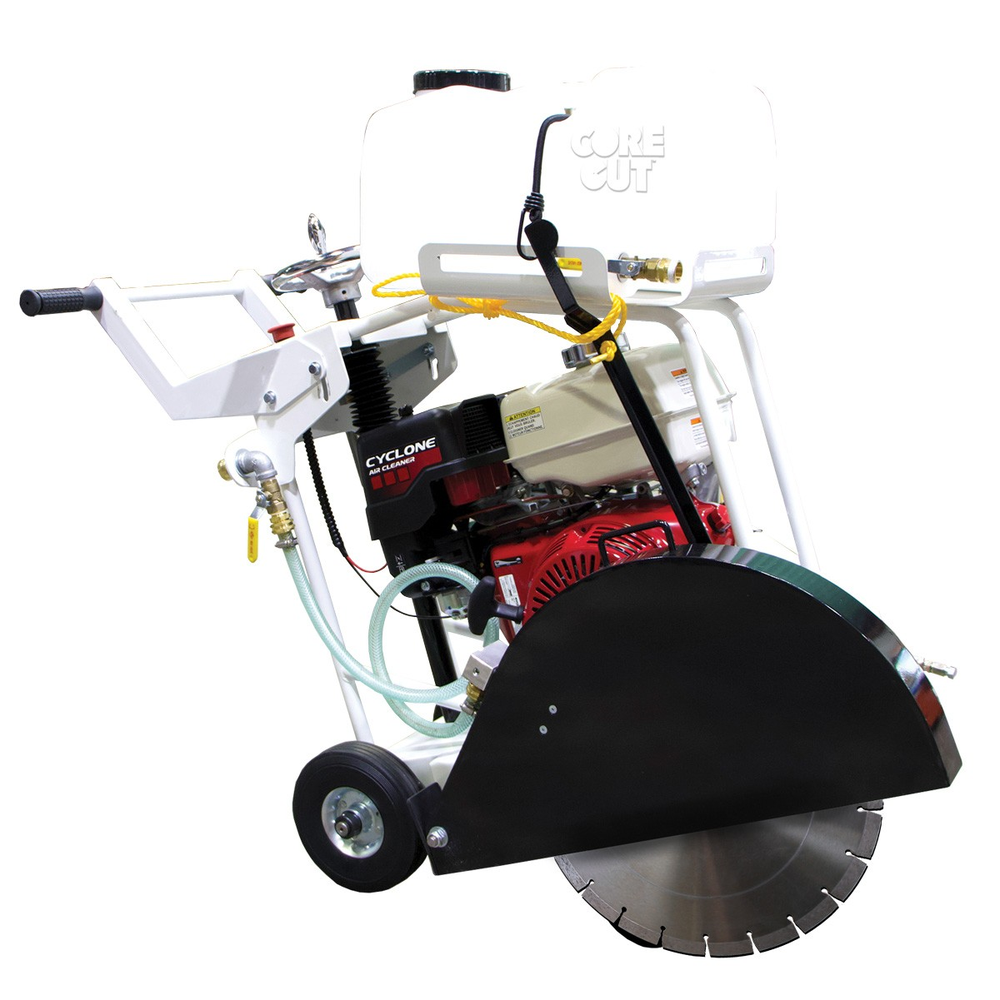

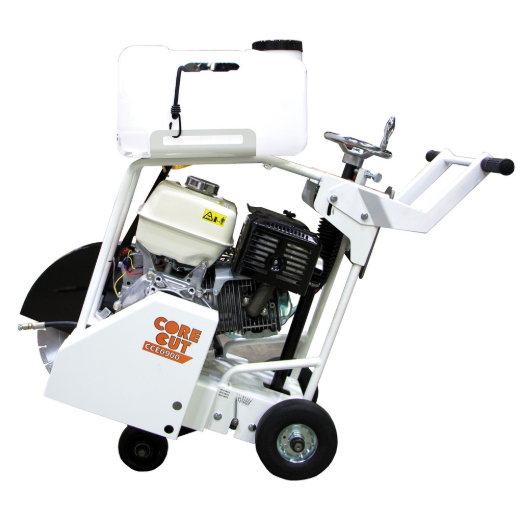

Diamond CCE0911H-20 11.7HP Honda Gas Walk Behind Saw with 20 in Guard

Mfr.: Diamond Products
Item #: I095767
Mfr. #: 30396
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3,950.26
i h h

Description

Portable walk behind saw with 20 inch blade capacity and Honda GX390 engine. Heavy-duty design suitable for two-person lifting with dust suppression capability.
  • 20 inch blade capacity
  • Honda GX390 11.7HP engine
  • Portable walk behind design
  • 275 lbs weight
  • 7-5/8 inch max cut depth

Features

  • Precision screw feed raise/lower system
  • Adjustable handlebars
  • Easy-read built-in depth indicator
  • Water tank and lifting bale included
  • Poly V-belts for drive system

Includes

  • Water tank
  • Lifting bale

Specifications


Max Depth of Cut7-5/8 inchBlade Shaft RPM2600
Blade Shaft Diameter1 inchArbor Size1 inch with single pin
Blade RaiseLowerPrecision screw feedSawing SideRight side only
Weight275 lbsPart Number5801613
Catalog Number30396Engine MakeHonda
Engine ModelGX390Engine Power11.7 HP
Blade Capacity20 inch
*
*
*
