  • Dual Grade Laser with RC703 Radio Remote, CR600, C50 & C51 Adapters, 10 Ah NiMH Batteries, Charger,

Dual Grade Laser with RC703 Radio Remote, CR600, C50 & C51 Adapters, 10 Ah NiMH Batteries, Charger,

Mfr.: Spectra Precision
Item #: I090595
Mfr. #: GL722
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $10,561.00
i h h

Description

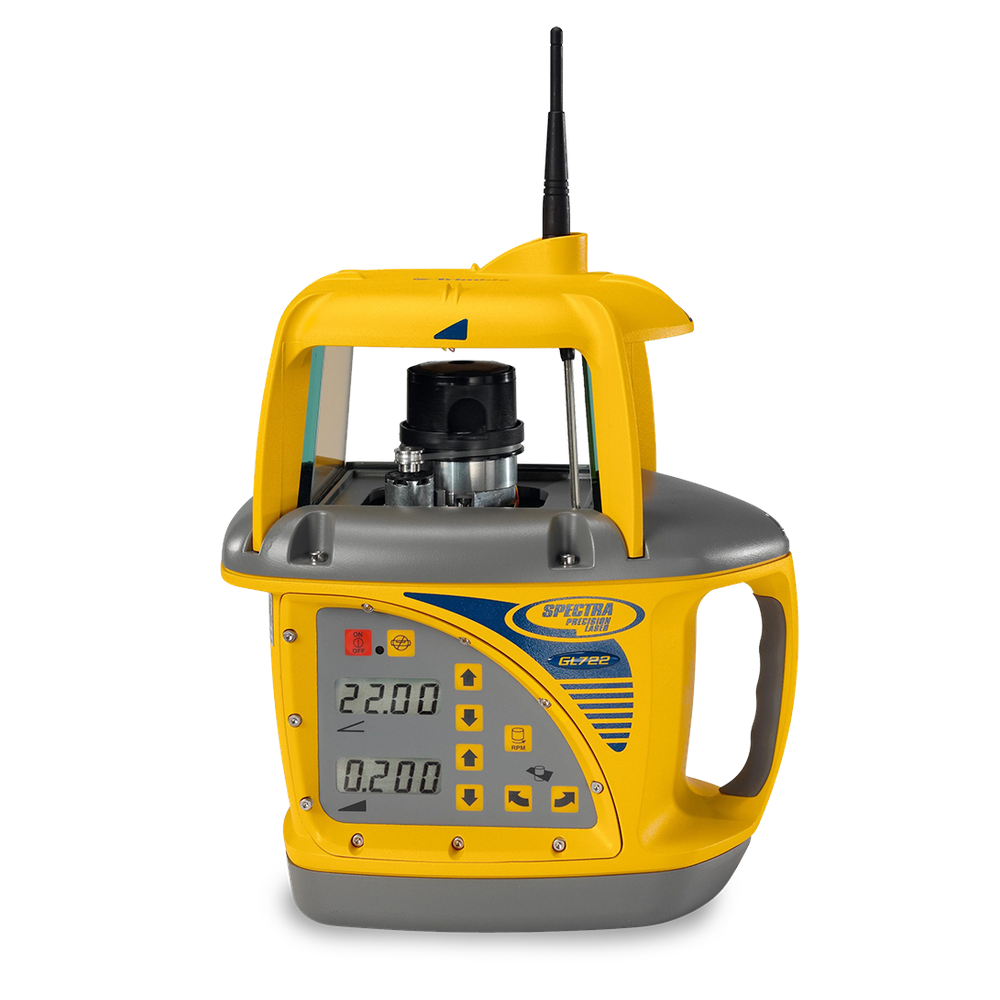

The GL722 dual grade laser is one of the most advanced grade lasers on the market, offering long-range operation and advanced radio remote capabilities. Key features like grade matching, Planelok, and Automatic Axis Alignment enable quick and highly accurate set-ups for any grade application. This rugged tool includes active temperature compensation for stable results regardless of environmental changes and a fully sealed aluminum housing for durability in all work conditions. Its long-life battery and wireless operated sleep mode ensure it remains functional throughout the workday and during breaks.

Features

  • Active Temperature Compensation for accurate, stable results regardless of temperature change
  • Long Range Wireless Link provides full functional control even on a 3m tripod
  • Automatic Axis Alignment eliminates costly errors by automatically aligning to your grade hub
  • Fully Sealed, Rugged Aluminum Housing with weather-resistant control panel
  • Grade Bump and Grade Reverse for simple remote grade adjustments and mirroring
  • Machine Control Compatible with all laser-based machine control systems
  • Automatic off-grade sensor prevents incorrect grading and wasted hours
Products specifications
Axis Grade Range X -10 to +10%
Axis Grade Range Y -0.500 to +25%
Self-Leveling Up to 25%
Grade Resolution 0.001%
Servo Deadband Accuracy 4.6 arc seconds
Laser Classification CDRH II (IECI)
Operating RangeRadius 450 m (1500 ft) with machine-mounted receivers
Mounting Threads 5/8 inch x 11 inch (opt 3-1/2 inch x 8 inch adapt
Housing Waterproof Aluminum Housing
Weight 8.5 kg (18.8 lbs.)
Dimensions (HxWxD) 29.8 cm x 25.4 cm x 19.7 cm (11.75 in x 10.0 in x
Remote Operation Range 225 m (750 ft) General, 150 m (500 ft) Automatic
Remote Battery Life 2.5 weeks

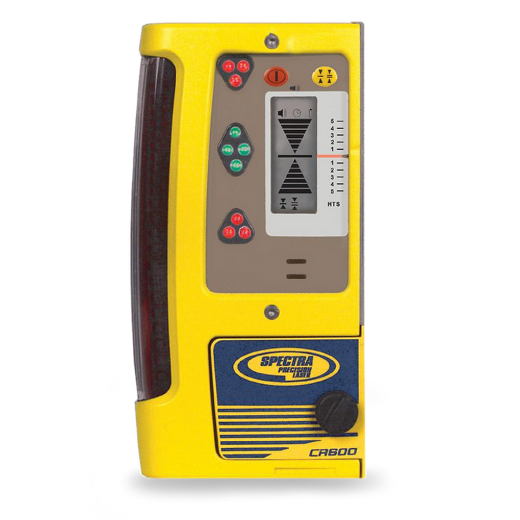

Included Receiver CR600
Receiver Features 270-degree reception angle, 15 display channels,
*
*
*
