ERTEC Gr8 Guard 48-inch x 24-inch Drainage Inlet Protection System

Mfr.: Ertec Pro Wattle
Item #: I090712
Mfr. #: GG 48x24
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $153.28
i h h

Description

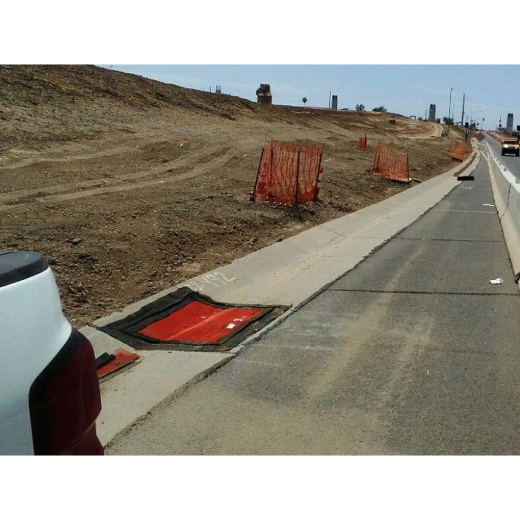

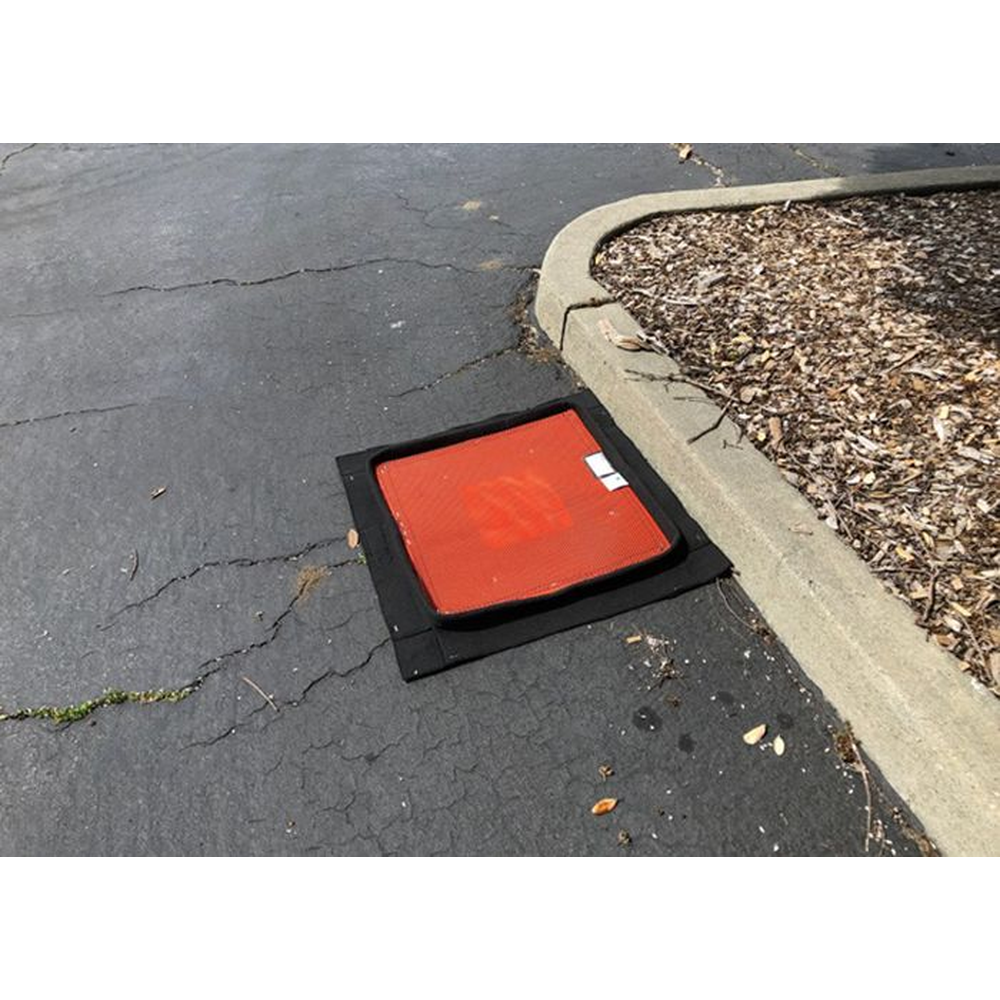

ERTEC GR8 Guard is a high-performance drainage inlet protection system designed specifically for grates located in paved areas. This model is sized to fit grates up to 48x24 inches and should be installed directly on top of the grate, extending at least 3 inches beyond the grate perimeter. The system is engineered to filter sediment and debris while allowing stormwater to pass through efficiently. While it can withstand periodic vehicle run-overs, it is recommended for areas without constant stop-and-go traffic.

Features

  • Easy installation using 16-gauge tie wires, gravel bags, or adhesive caulk.
  • Durable construction that allows for periodic vehicle run-overs.
  • Efficient sediment control with a design that is easily cleaned and maintained.
  • Removable and reusable solution for long-term or multi-phase projects.
Products specifications
Compatible Grate Size Less than 48 inchx24 inch
Minimum Overlap 3 inches beyond grate in each direction
Anchor Methods 16-gauge tie wire, pea-gravel snake bags, traffic
Tie Wire Specification 16-gauge, 18-inch lengths
Maintenance Schedule Inspect after every rainfall event and daily duri
Sediment Removal Threshold 50% of the barrier height
Traffic Limitations Not suitable for constant stop-and-start traffic
*
*
*
