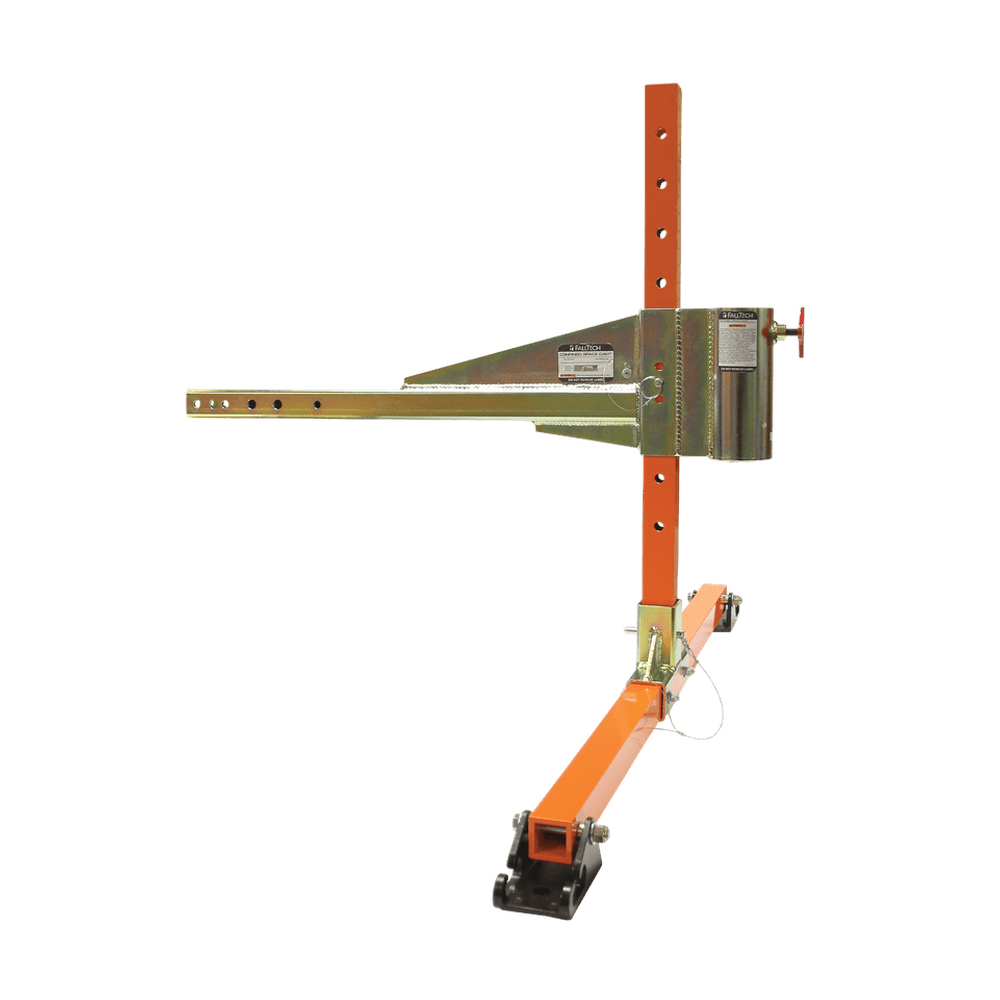

Falltech 3pc Vehicle Hitch-mount Base for Davit Arm

Mfr.: FallTech
Item #: I090363
Mfr. #: 6501528
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $2,245.93
i h h

Description

The FallTech 6501528 is a versatile 3-piece modular base designed to transform a vehicle into a reliable portable anchor point for confined space entry and retrieval. This system offers exceptional stability through its unique pivoting feet and vertical T-bar bracket, ensuring worker safety in demanding environments. Its lightweight aluminum construction and tool-free assembly make it an ideal solution for fast-paced industrial and construction work sites.
  • Lightweight powder-coated aluminum construction
  • Tool-free assembly with detent pin connections
  • Adjustable height in 3-inch increments

Features

  • Installs to Class 3 minimum trailer hitches with a 2-inch square receiver
  • Includes a steel hitch bar with a PVC mast sleeve insert and mast securing handscrew
  • Provides a vertical height adjustment range of 11 inches up to 36 inches
  • Meets OSHA 1926.502 and 1910.66 when used with appropriate davit arms

Includes

  • Horizontal Foot Bar with pivoting feet
  • Vertical Adjustment Post
  • Square Hitch Bar with PVC mast sleeve
  • Two (2) Detent Pins
Products specifications
Rescue Static Strength 5,000 lb min.
Entry Static Strength 1,800 lb min.
Rescue Capacity 2 users, 310 lb each
EntryEgress Capacity 1 user, 310 lb max
Height Adjustment 11 inch to 36 inch in 3 inch steps
Material 6061 Aluminum and Plated Steel
Hitch Requirement Class 3 with 2 inch receiver
Compliance OSHA 1926.502 and 1910.66
Sleeve Insert PVC Pipe
Finish Powder Coated Orange
*
*
*
