FallTech Hinged Reusable Wood Roof Anchor

Mfr.: FallTech
Item #: I005886
Mfr. #: 7410
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $51.57
i h h

Description

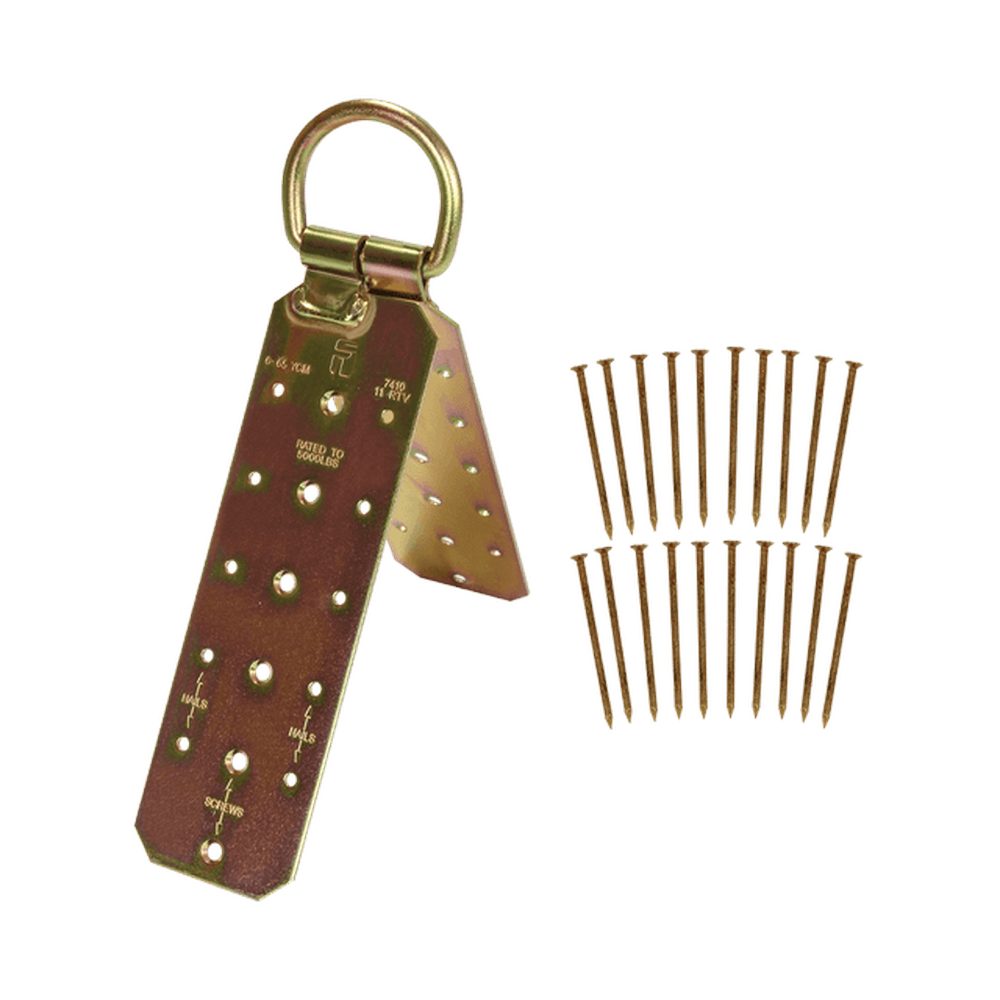

The FallTech 7410 Hinged Reusable Wood Roof Anchor is a high-strength fall protection solution designed for temporary use on wood-frame structures. Its versatile hinged design allows the anchor to conform to various roof pitches, making it suitable for both flat surfaces and sloped ridges up to 12/12. Constructed from heavy-duty plated alloy steel, this anchor provides a reliable and cost-effective connection point that can be easily moved from one jobsite to the next.
  • Reusable Design
  • Plated Alloy Steel
  • Hinged Ridge Mounting

Features

  • Hinged design conforms to flat or sloped roofs up to 12/12 pitch.
  • Features 10 inch x 3 inch anchoring plates with a 2-1/4 inch connecting D-ring.
  • Includes countersunk screw holes and marked holes for nails or screws.
  • Zinc-plated finish provides enhanced corrosion resistance for outdoor use.

Includes

  • Hinged Anchor Plates
  • 20 qty 16D Nails
Products specifications
ANSI User Capacity 130 to 310 lbs
OSHA User Capacity 130 to 425 lbs
Static Strength 5,000 lbs min
Part Number 7410
Material Plated Alloy Steel
Product Weight 2.79 lbs
Compliance OSHA 1926.502, 1910.66
D-Ring Size 2-1/4 inch
Roof Pitch Up to 12/12 pitch
Plate Dimensions 10 inch x 3 inch
*
*
*
