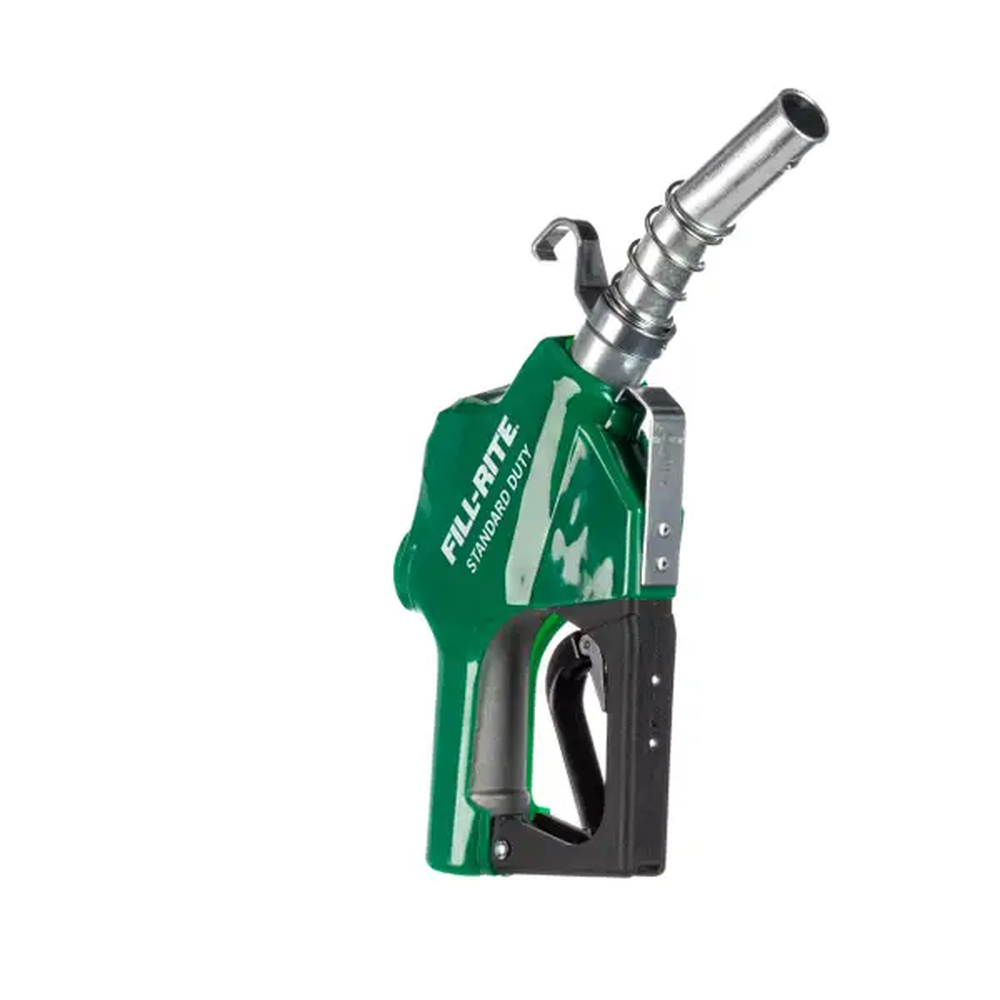

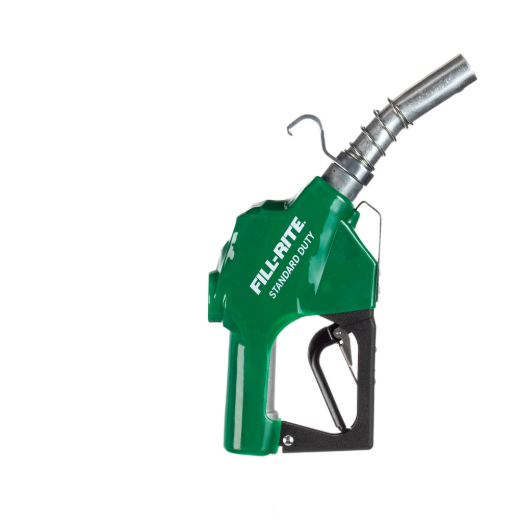

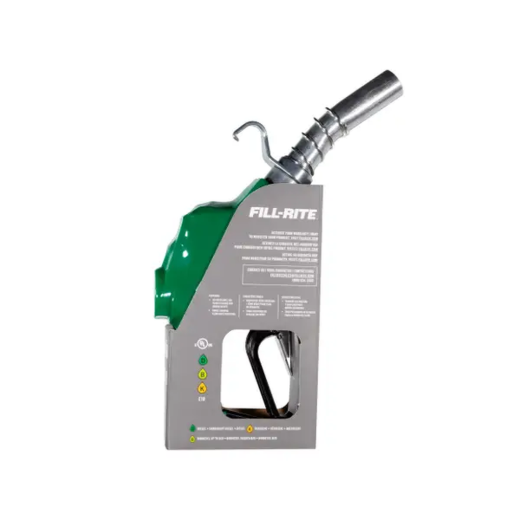

Fill-Rite Automatic Diesel Spout Nozzle - 1" - Green

Mfr.: Tuthill Fill-Rite
Item #: I094487
Mfr. #: SDN100GAN
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $153.85
i h h

Description

The SDN100GAN is a 1-inch automatic shutoff nozzle designed specifically for diesel fuel transfer applications. This standard-duty nozzle features a green jacket and large spout, offering reliable performance with automatic shut-off to prevent overfilling and spills.
  • Automatic shut-off prevents overfilling and spilling
  • Cast-aluminum construction for durability

Features

  • 1 inch automatic shutoff nozzle designed for fuel transfer
  • Designed for diesel applications
  • 1-1/8 inch large spout size
  • Green jacket
  • Standard-duty grade
  • Cast-aluminum construction
  • Engineered with rugged cast-aluminum construction
  • Built to last through demanding applications
  • Easy to use
  • Included spout spring on automatic nozzles
  • Spout spring ensures optimal nozzle placement
  • Eliminates opportunity for damage
  • Adjustable latching
  • Three separate latch positions on automatic nozzles
  • Allows quick and easy tailoring of flow rates
  • Automatic shut-off reduces mess
  • Prevents overfilling and spilling
  • Keeps user safe and efficient
  • Available in multiple configurations
  • Variety of configurations to meet application requirements
  • Temperature compatibility options
  • Flow compatibility options
  • Fluid compatibility options
  • Not intended for gravity flow systems
  • Max flowrate 25 GPM / 94 LPM
  • Inlet size/connection/thread: 1 inch / Female / NPT
  • Spout diameter: 1.125 inches
  • Max pressure: 50 PSI
  • Flowrate range: 5 to 25 GPM
  • Package dimensions: 14.75 x 9 x N/A inches
  • Gross weight: 3.87000 lbs

Includes

  • spout spring
Products specifications
Model SDN100GAN
Type Automatic shutoff nozzle
Application Diesel fuel transfer
Nozzle Size 1 inch
Spout Size 1-1/8 inch
Spout Color Green
Construction Cast-aluminum
Duty Grade Standard-duty
Max Flow Rate 25 GPM
Max Flow Rate Metric 94 LPM
Inlet Size 1 inch
Connection Type Female NPT
Max Pressure 50 PSI
Flow Range 5-25 GPM
Latch Positions 3
Package Height 14.75 in
Package Width 9 in
Gross Weight 3.87 lbs
Shutoff Type Automatic
Compatible Fluids Diesel
*
*
*
