Fill-Rite Fuel Transfer Hose with Static Wire - 1" x 12'

Mfr.: Tuthill Fill-Rite
Item #: I094474
Mfr. #: FRH10012
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $79.93
i h h

Description

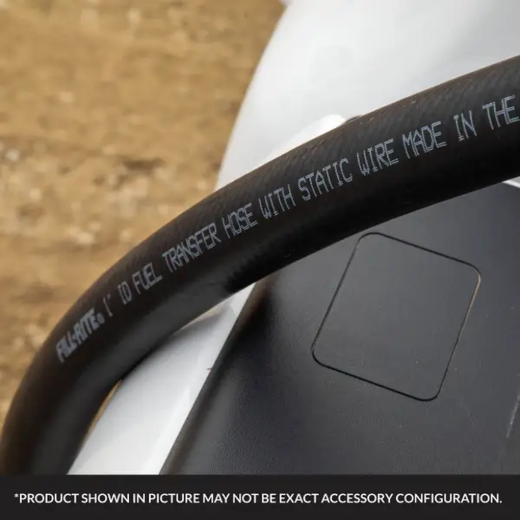

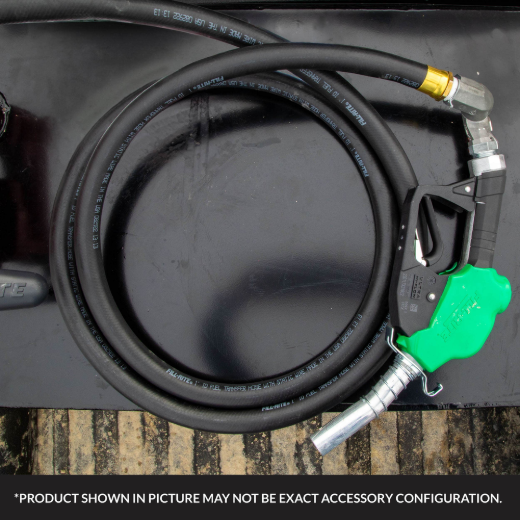

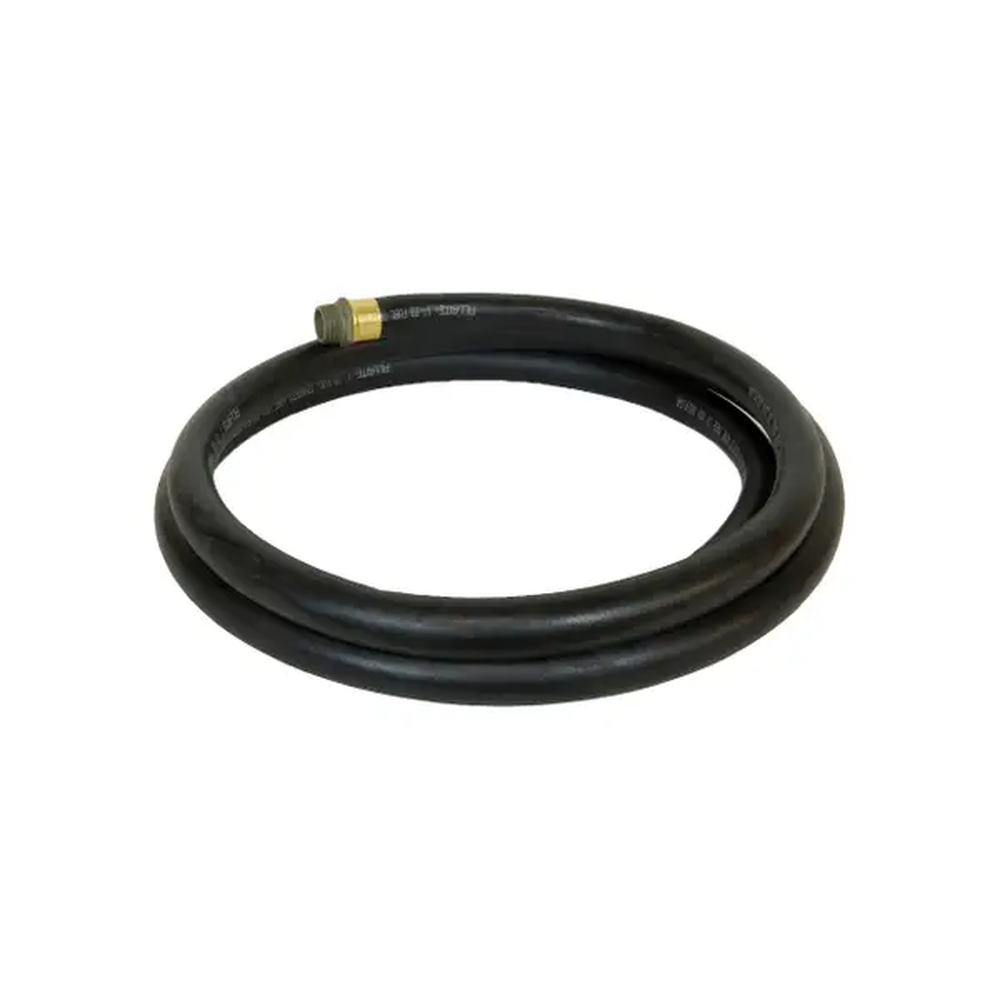

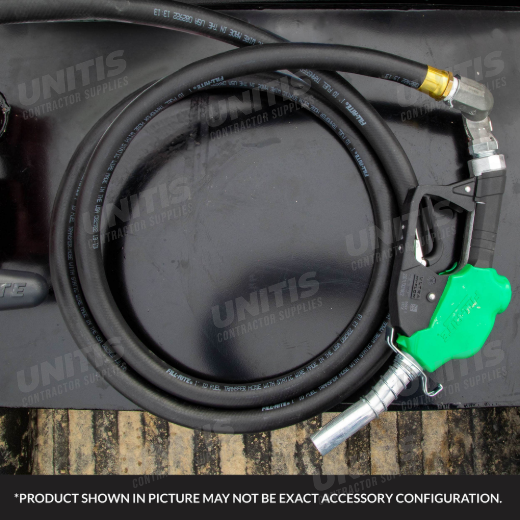

A 1-inch diameter by 12-foot long fuel transfer hose designed for safe and efficient fluid transfer. It features a stainless steel ground wire for static prevention and an internal anti-kink spring guard to maintain smooth flow and extend hose life.
  • Stainless steel ground wire runs entire length for safety
  • Internal spring guard reduces kinking for better performance

Features

  • Durable Construction - nitrile inner tube resists corrosion from fuels while rugged neoprene exterior withstands abrasive outdoor environments
  • Anti-Kink Performance - internal spring guard reduces kinking during use, ensuring smooth fluid flow and longer hose life
  • Internal Ground Wire - stainless steel ground wire runs the entire length of the hose, ensuring safety by preventing static buildup

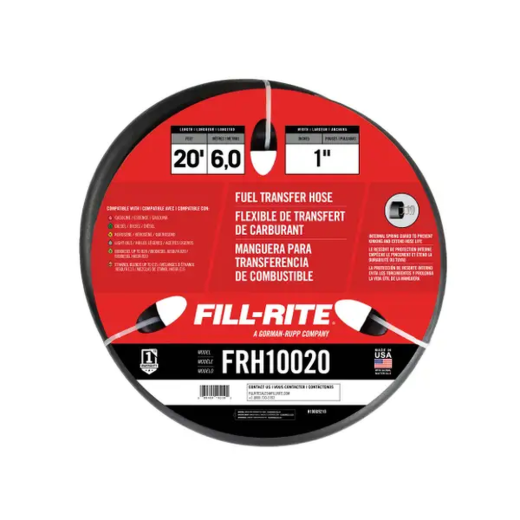

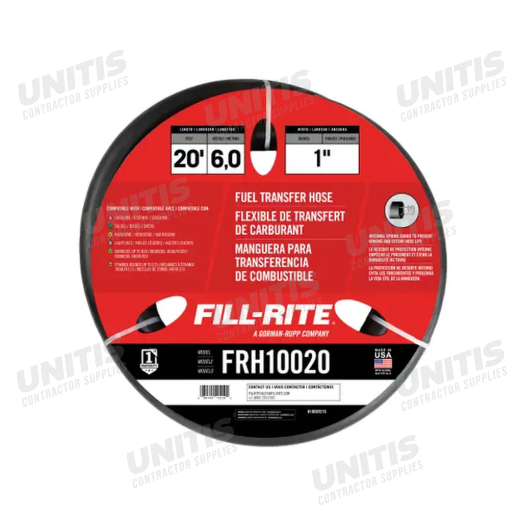

  • Multiple Sizes Available - configurations available in 12-, 14-, and 20-foot lengths with 3/4 inch and 1 inch NPT threads, meeting the specific needs of your application
  • UL Listed Models Available - models FRH07512UL and FRH10012UL are UL Listed for compliance in AC voltage applications

Includes

  • Discharge Hose 1 inch X 12' Hose with Static Ground Wire
Products specifications
Model FRH10012
Hose Diameter 1 inch
Hose Length 12 feet
Inlet Size 1 inch
Inlet Connection Male NPT
Outlet Size 1 inch
Outlet Connection Male NPT
Static Wire Yes
Max Operating Pressure 50 PSI
Compatible Fluids Diesel, Gasoline, Crop Oil, B20
Also Compatible Gear Oils, Motor Oils, Hydraulic Oils
Assembled Dimensions 1.7 x 1.7 x 180 in
Assembled Weight 6.2 lbs
Package Dimensions 5.5 x 15.5 x 19.5 in
Package Weight 6 lbs
Inner Tube Material Nitrile
Exterior Material Neoprene
Ground Wire Material Stainless Steel
Thread Type NPT
Spring Guard Length 7 inches
*
*
*
