Fill-Rite 115V AC Fuel Transfer Pump with Hose & Nozzle - 20 GPM

Mfr.: Tuthill Fill-Rite
Item #: I094471
Mfr. #: FR700V
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $1,080.15
i h h

Description

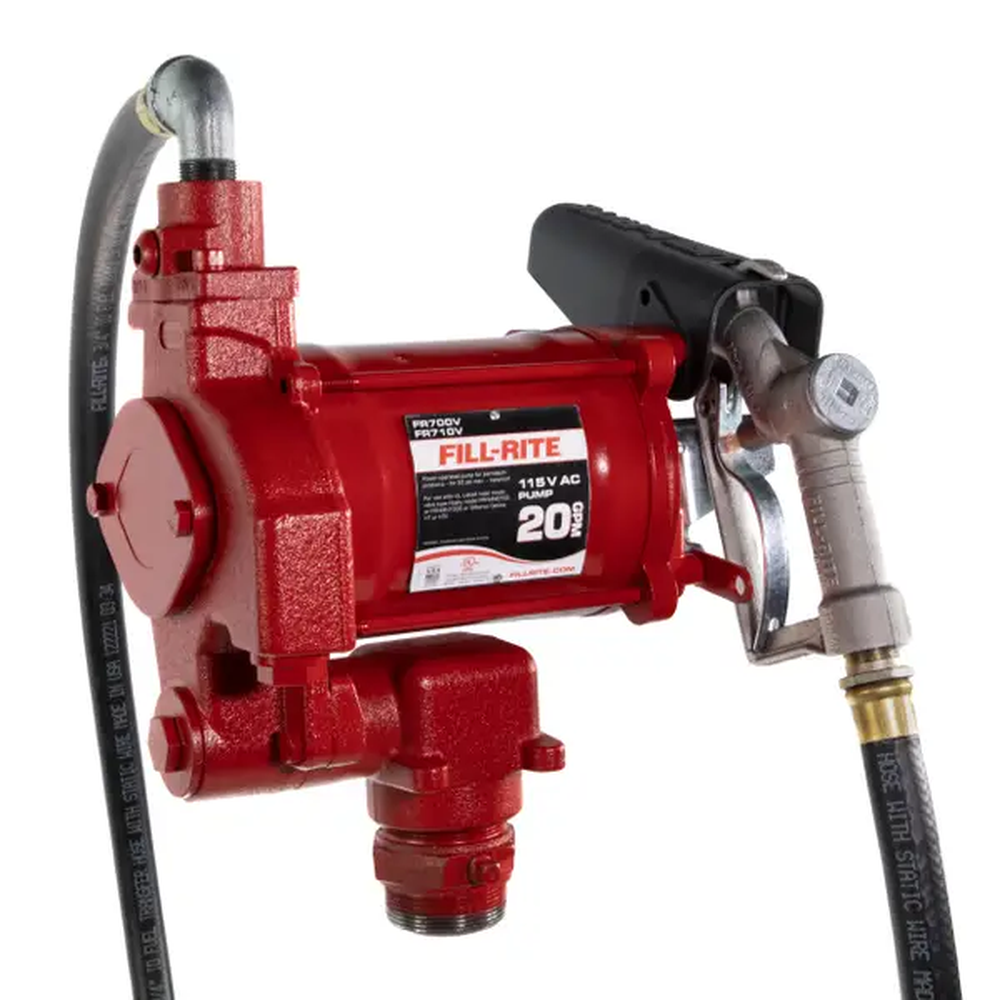

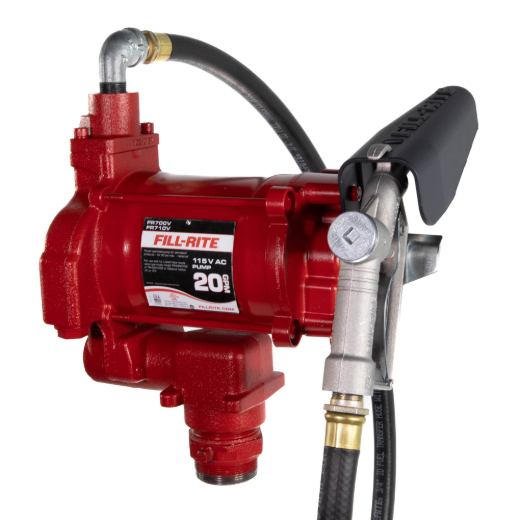

A heavy-duty fuel transfer pump designed for stationary aboveground tanks, featuring 115V AC power, 20 GPM flow rate, and rotary vane technology for consistent performance in demanding conditions.
  • Heavy-duty cast-iron construction for durability
  • 20 GPM flow rate ideal for large equipment fuel tanks

Features

  • Cast-Iron Construction - heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • High Performance - Fill-Rite's trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling large equipment with fuel tanks sized at 20-80 gallons

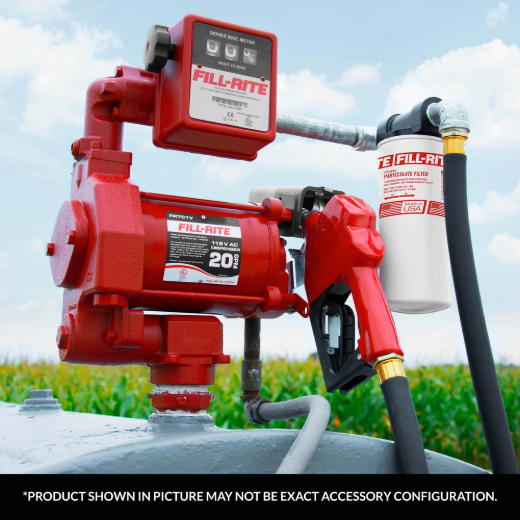

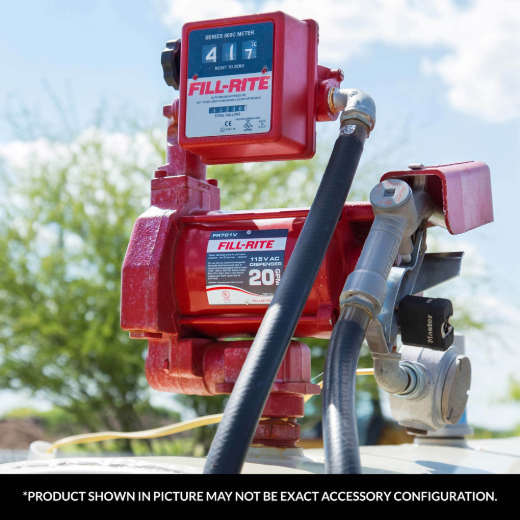

  • Stationary Tanks - powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks
  • Reliable Technology - rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
  • Long Life - thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
  • Equipment Safeguard - built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
  • Limited Lifetime Warranty - we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment

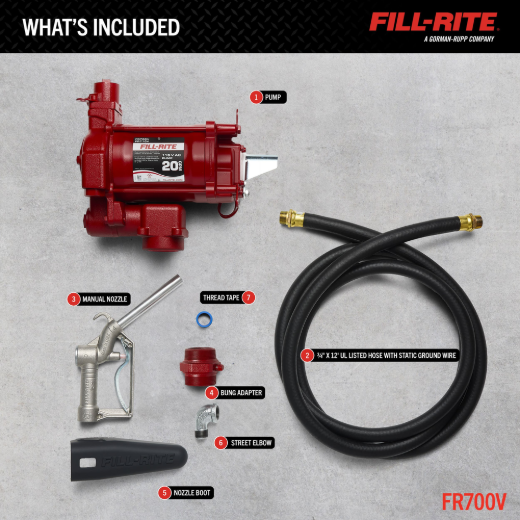

Includes

  • Hose
  • Nozzle
  • Installation components
  • Nozzle Boot
  • PTFE Tape Roll
  • 3/4 inch NPT Street Elbow
  • Locking Nut
  • Fastener
Products specifications
Model FR700V
Power Type 115V AC
Max Flow Rate 20 GPM
Flow Rate Metric 75 LPM
Compatible Fluids Diesel, Kerosene, Biodiesel B20
Also Compatible Gasoline E15, Mineral Spirits
Inlet Size 1.25 inch
Inlet Connection Female NPT
Outlet Size 0.75 inch
Outlet Connection Female NPT
Mounting Size 2 inch
Mounting Type Bung Mount
Duty Cycle 30 min on/30 min off
Motor Power 0.33 HP
Max Current 5.5 A
Suction Lift 15 ft
Dry Vacuum 12 inch Hg
Discharge Head 53 ft
Strainer Mesh Size 40 x 40 x .010 inch
Max Discharge Pressure 23 PSI
Viscosity Range 0.38 - 2.4 cSt
Discharge Hose 3/4 inch X 12 UL Listed
Hose Feature Static Ground Wire
Nozzle Type 3/4 inch Cast Aluminum

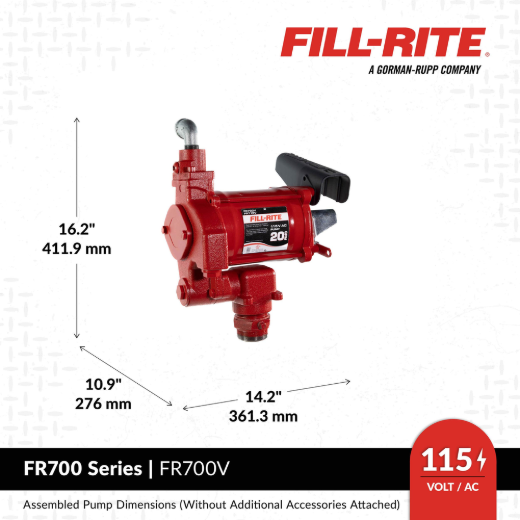

Assembled Height 17.3 in
Assembled Width 14.2 in
Assembled Depth 11.3 in
Assembled Weight 48.8 lbs
Package Height 10.25 in
Package Width 20.56 in
Package Depth 19.56 in
Gross Weight 57.4 lbs
Made In USA
Warranty Limited Lifetime
*
*
*
