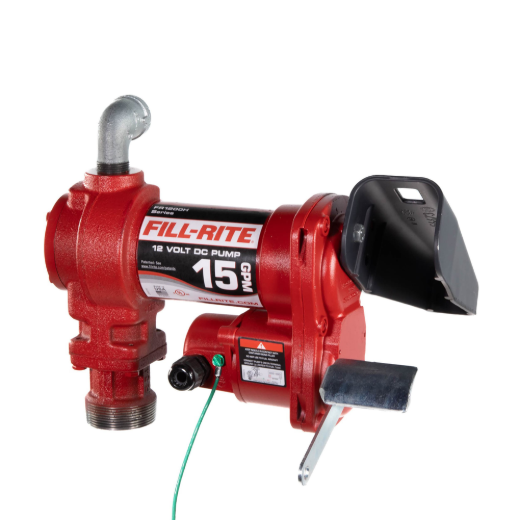

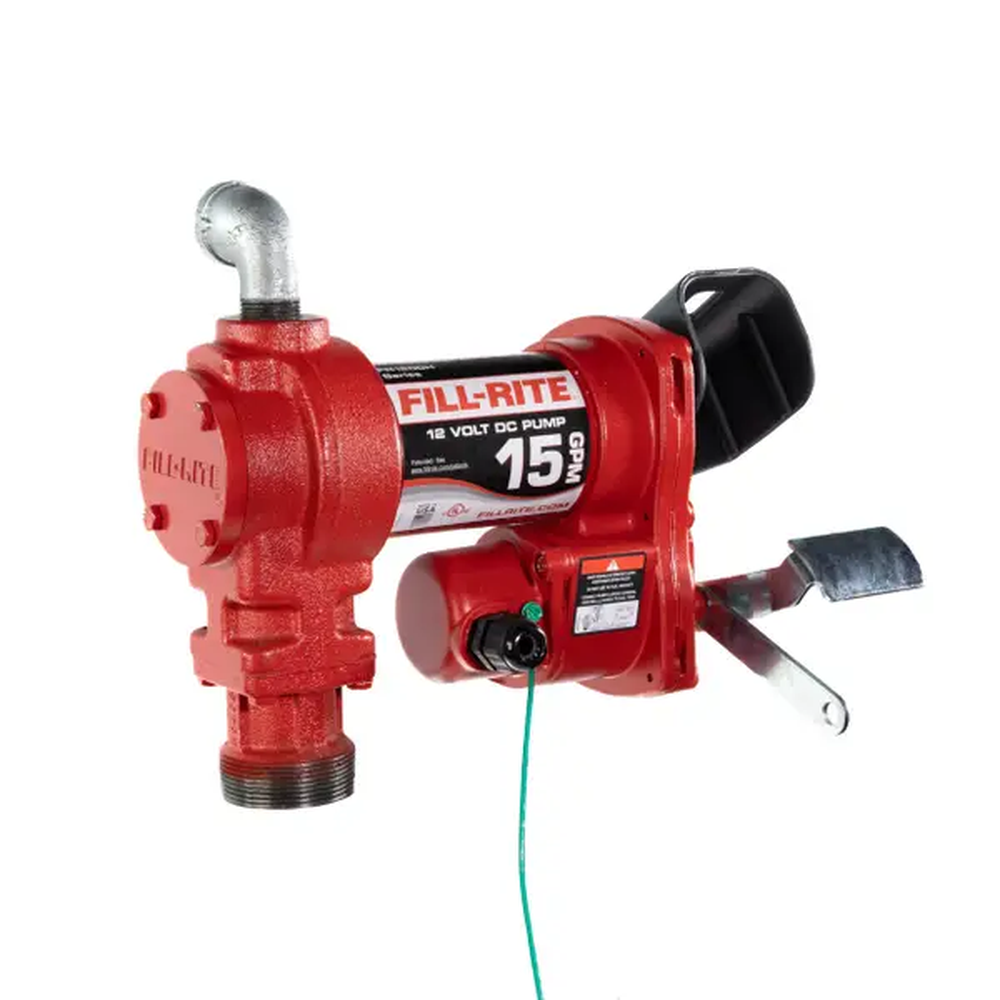

Fill-Rite 12V DC Fuel Transfer Pump - 15 GPM

Item #: I094464
Mfr. #: FR1204H
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $528.44
i h h

Description

A heavy-duty 12V DC fuel transfer pump designed for reliable performance in field and job site conditions, capable of transferring 15 gallons per minute for filling equipment with fuel tanks from 15-60 gallons.
  • Cast-iron construction for unmatched durability
  • Thermally-protected motor prevents overheating

Features

  • Cast-Iron Construction - heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • Reliable Performance - Fill-Rite's trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons

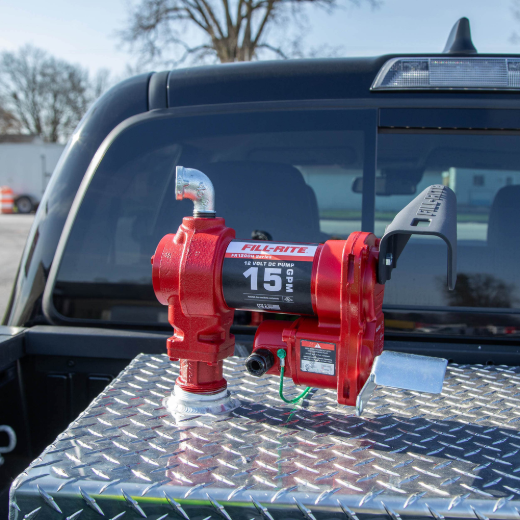

  • Mobile Tanks - powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
  • Fluid Compatibility - designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
  • Easy Installation - adjustable electrical junction box rotates 180 for easier wiring and more flexible installations in tight spaces
  • Long Life - thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
  • Equipment Safeguard - built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
  • Reliable On-Off Switch - on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
  • Limited Lifetime Warranty - we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment

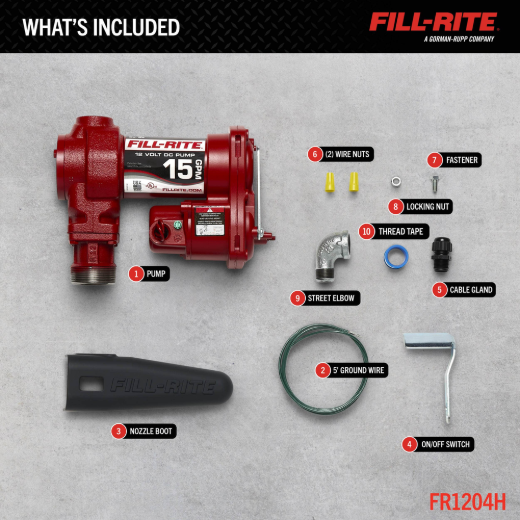

Includes

  • Nozzle Boot
  • PTFE Tape Roll
  • 3/4 inch NPT Street Elbow
  • Ground Wire
  • Cable Gland
  • (2) Wire Nuts
  • Locking Nut
  • Fastener
Products specifications
Model FR1204H
Voltage 12V DC
Flow Rate 15 GPM / 57 LPM
Power Type 12V DC
Compatible Fluids Diesel, Kerosene, Biodiesel B20, Gasoline E15, Mi
Inlet SizeThread 1 inch NPT
Outlet SizeThread 0.75 inch NPT
Mounting SizeType 2 inch NPT Bung Mount
Duty Cycle 30 min on / 30 min off
Motor Power 0.25 HP
Max Current 20 A
Thermal Protection Yes
Self Priming Yes
Suction Lift 8 ft
Dry Vacuum 5 inch Hg
Discharge Head 37 ft
Strainer Mesh Size 20x20 Micron
Max Operating Pressure 16 PSI
Viscosity Range 1 to 4 cSt

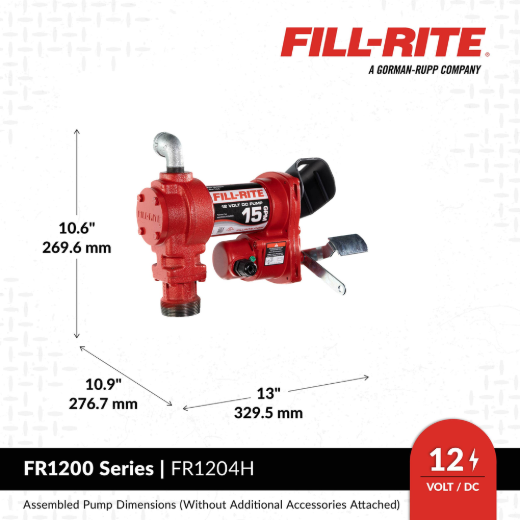

Assembled Dimensions 9.5 x 13.0 x 6.5 in
Assembled Weight 19.9 lbs
Package Dimensions 6.63 x 12.63 x 15.25 in
Gross Weight 21 lbs
*
*
*
