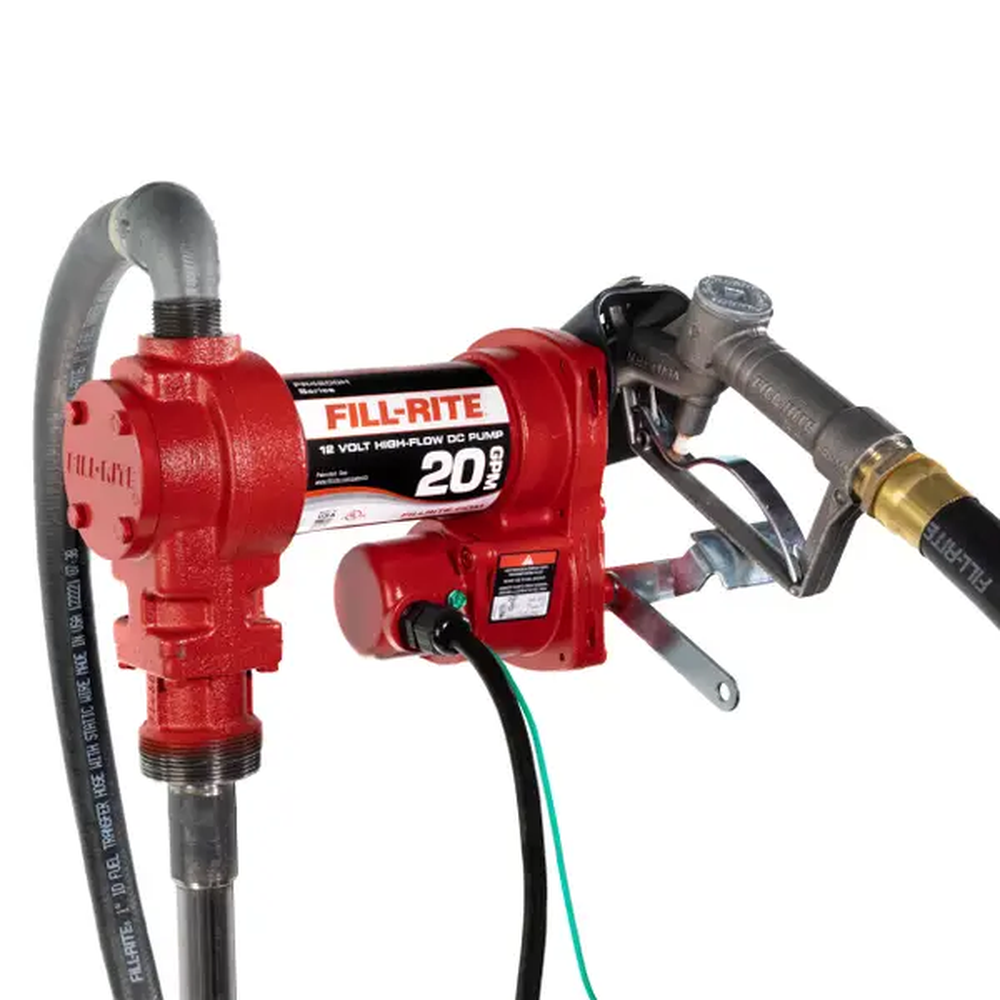

Fill-Rite 12V DC Fuel Transfer Pump with Nozzle - 20 GPM

Mfr.: Tuthill Fill-Rite
Item #: I094469
Mfr. #: FR4210H
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $837.59
i h h

Description

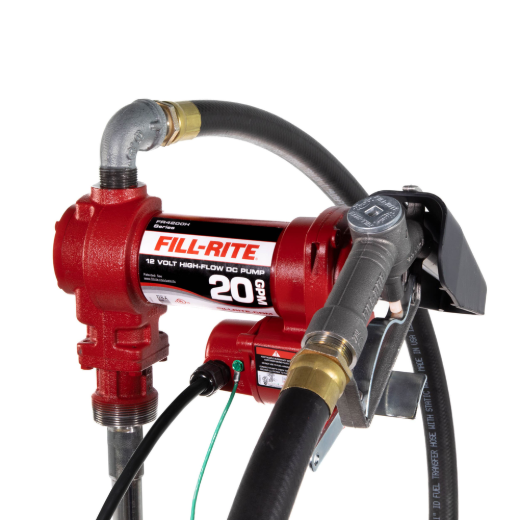

A heavy-duty 12V DC fuel transfer pump designed for transferring gasoline, diesel, ethanol blends up to E15, biodiesel blends up to B20, kerosene, and mineral spirits. It features cast-iron construction, rotary vane pump technology delivering 20 gallons per minute, and comes complete with hose, nozzle, suction pipe, and installation components for mobile tank applications.
  • Heavy-duty cast-iron construction for durability
  • 20 GPM flow rate ideal for 20-80 gallon fuel tanks

Features

  • Cast-Iron Construction - heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • Reliable Performance - Fill-Rite's trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling equipment with fuel tanks from 20-80 gallons

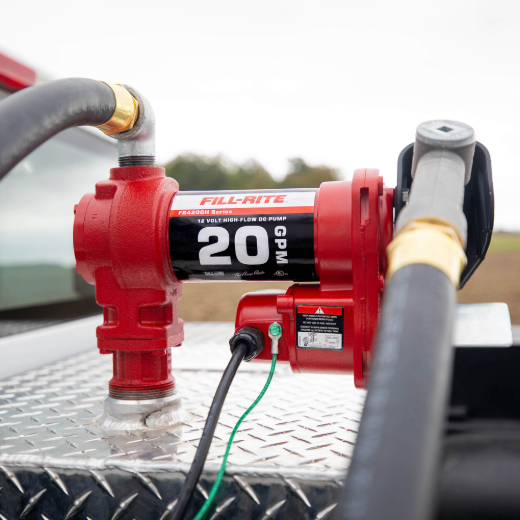

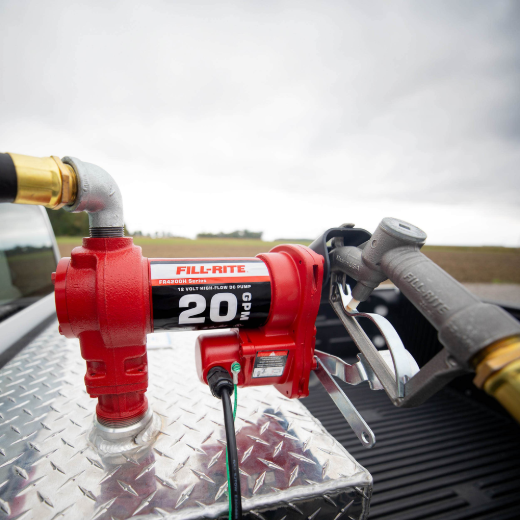

  • Mobile Tanks - powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
  • Fluid Compatibility - designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
  • Easy Installation - adjustable electrical junction box rotates 180 for easier wiring and more flexible installations in tight spaces
  • Long Life - thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
  • Equipment Safeguard - built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
  • Reliable On-Off Switch - on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
  • Limited Lifetime Warranty - we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment

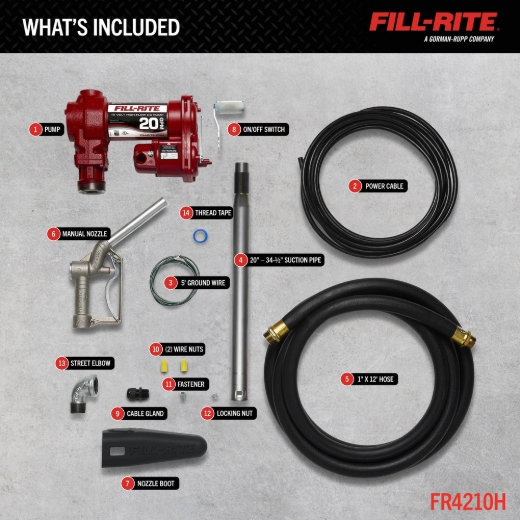

Includes

  • Hose
  • Nozzle
  • Suction pipe
  • Installation components
  • Nozzle Boot
  • PTFE Tape Roll
  • 1 inch NPT Street Elbow
  • Ground Wire
  • Cable Gland
  • (2) Wire Nuts
  • Locking Nut
  • Fastener Static Wire
Products specifications
Model FR4210H
Voltage 12V DC
Flow Rate 20 GPM / 75 LPM
Power Type 12V DC
Compatible Fluids Diesel, Gasoline, E15, B20, Kerosene
Inlet SizeConnection 1 inch Female NPT
Outlet SizeConnection 1 inch Female NPT
Mounting SizeType 2 inch NPT Bung Mount
Duty Cycle 30 min on/30 min off
Motor Power 0.25 HP
Max Current 19 A
Thermal Protection Yes
Self Priming Yes
Suction Lift 8 ft
Dry Vacuum 5 inch Hg
Discharge Head 37 ft
Strainer Mesh Size 20x20 Micron
Max Pressure 16 PSI
Viscosity Range 1 to 4 cSt
Ground Wire Yes
Cable Length 18 ft
Cable Gauge 12 GA
Cable Connection Bare Leads
Suction Pipe 20 inch-34.5 inch Telescoping Steel
Discharge Hose 1 inch x 12 with Ground Wire
Nozzle 1 inch Cast Aluminum Manual

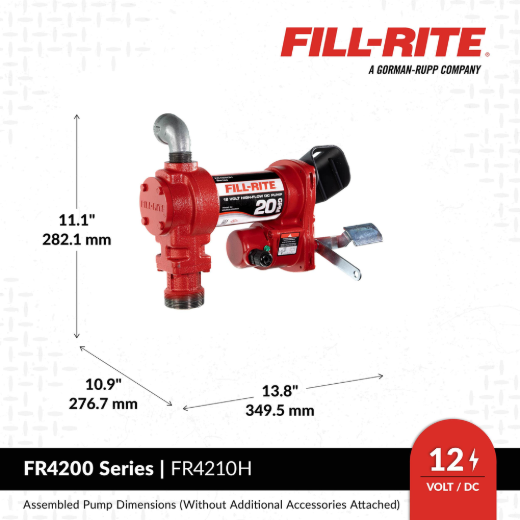

Dimensions 8.4 x 13.7 x 6.5 in
Weight 32.2 lbs
Package Dimensions 10.63 x 15.44 x 18.31 in
Package Weight 35 lbs
*
*
*
