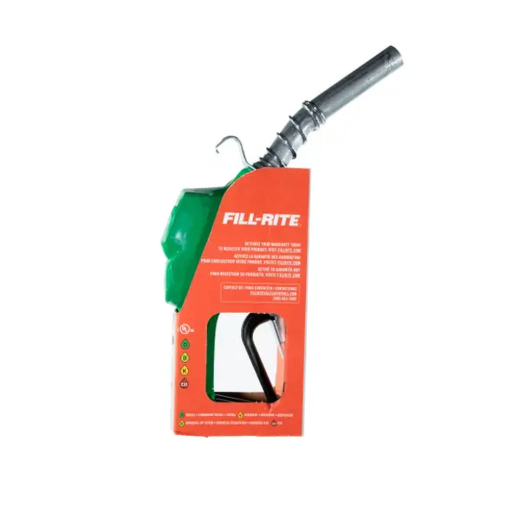

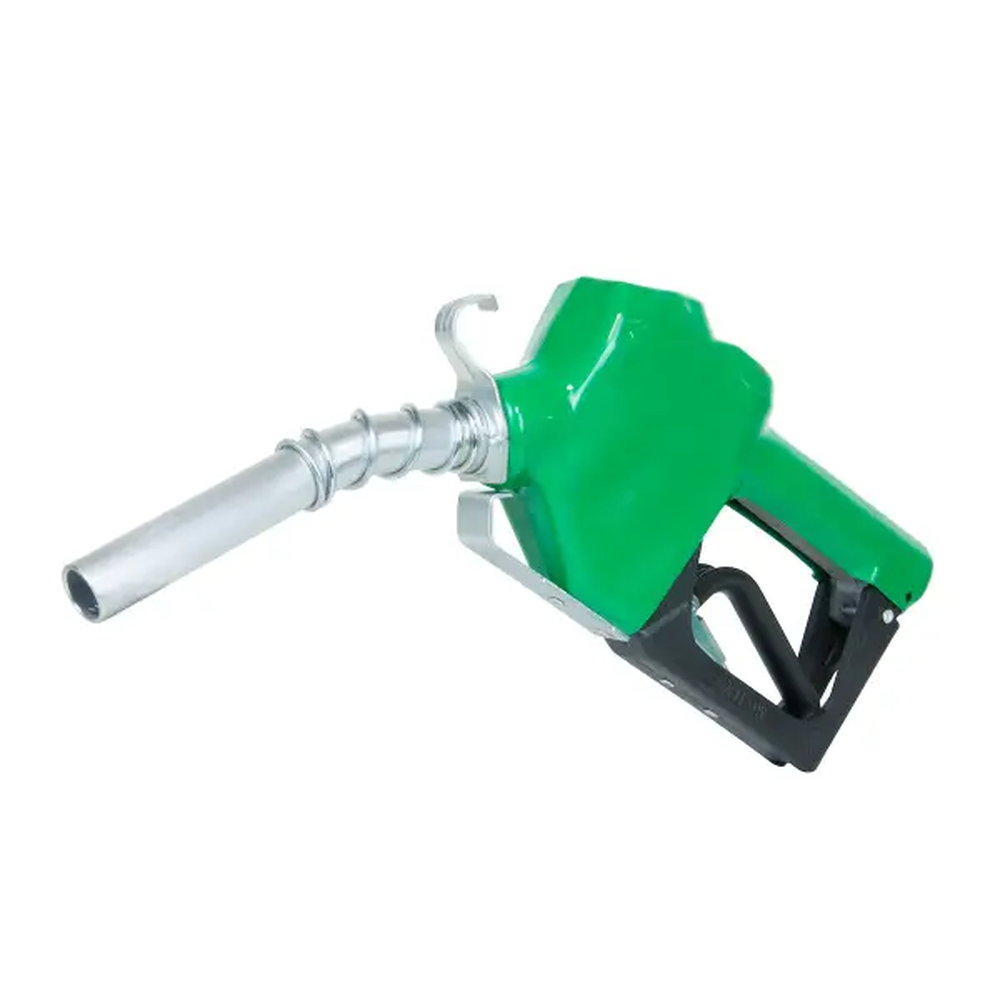

Fill-Rite Automatic Diesel Spout Nozzle - 3/4" - Green

Mfr.: Tuthill Fill-Rite
Item #: I094479
Mfr. #: N075DAU10
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $155.67
i h h

Description

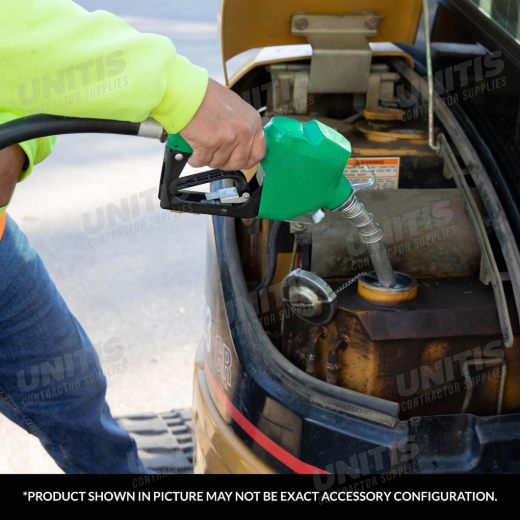

The N075DAU10 is a 0.75 inch automatic shutoff nozzle designed for fuel transfer, equipped with a 15/16 inch gasoline-sized spout and a green jacket, ideal for diesel applications. It features cast-aluminum construction and automatic shut-off to prevent overfilling.
  • Automatic shut-off reduces mess and prevents overfilling
  • Cast-aluminum construction for durability in demanding applications

Features

  • Cast-Aluminum Construction - engineered with rugged cast-aluminum construction, built to last through the most demanding applications
  • Easy to Use - included spout spring on automatic nozzles ensure optimal nozzle placement each time you fill, eliminating opportunity for damage
  • Adjustable Latching - three separate latch positions on automatic nozzles allow you to quickly and easily tailor flow rates for different equipment
  • Automatic Shut-Off - automatic shut-off reduces mess by preventing overfilling and spilling, keeping you safe and efficient
  • Multiple Configurations - available in a variety of configurations to meet your application's temperature, flow, and fluid compatibility requirements

Includes

  • spout spring
Products specifications
Model N075DAU10
Type Automatic Diesel Nozzle
Inlet Size 0.75 inch
Connection Female NPT
Spout Diameter 0.9375 inch
Max Flowrate 14.5 GPM / 54.8 LPM
Max Pressure 50 PSI
Compatible Fluids Diesel, Gasoline, Kerosene
Construction Cast-Aluminum
Color Green

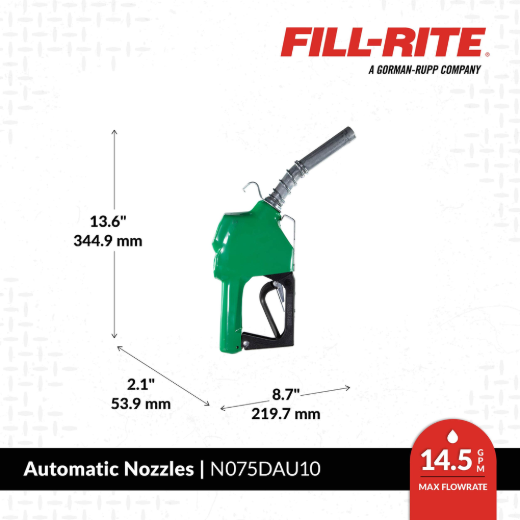

Assembled Dimensions 8.7 x 2.1 x 13.7 in
Assembled Weight 2.5 lbs
Package Dimensions 4 x 9.25 x 18 in
Package Weight 2.683 lbs
*
*
*
