  • Fill-Rite Automatic Gasoline Spout Nozzle - 3/4" - Red

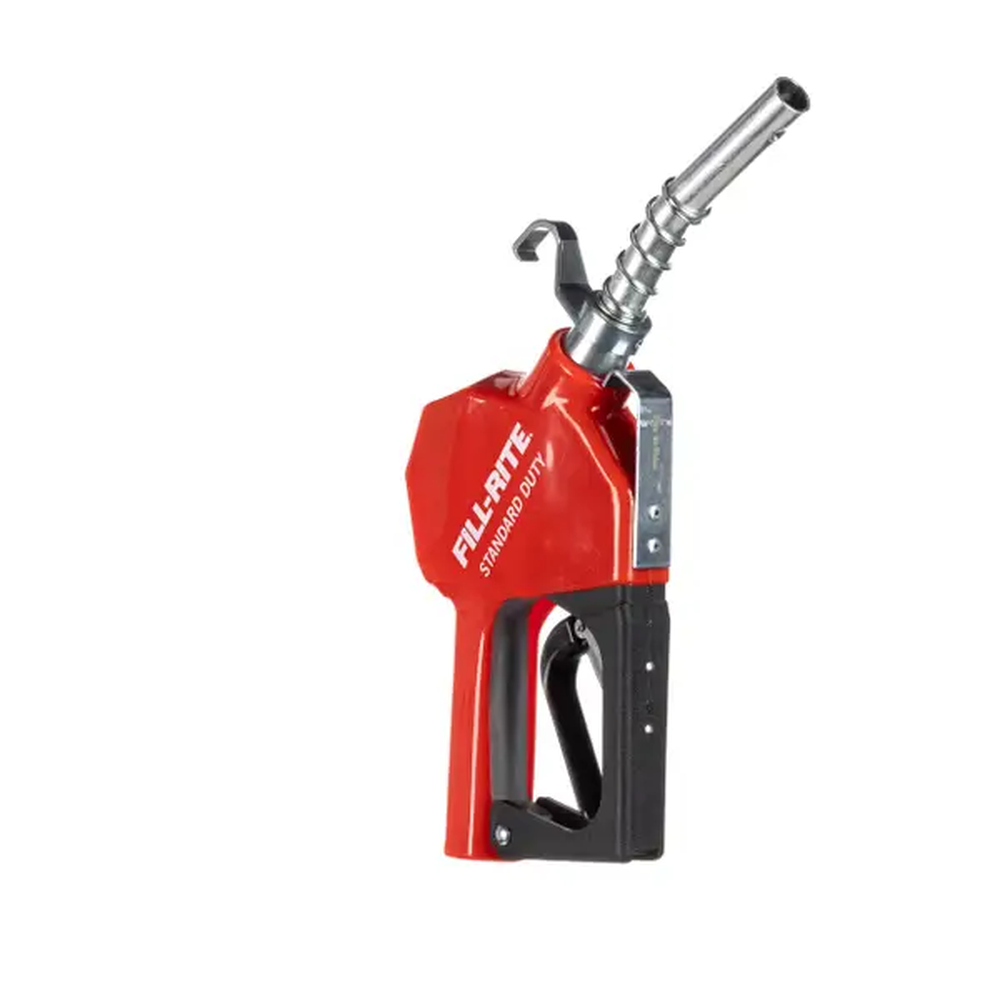

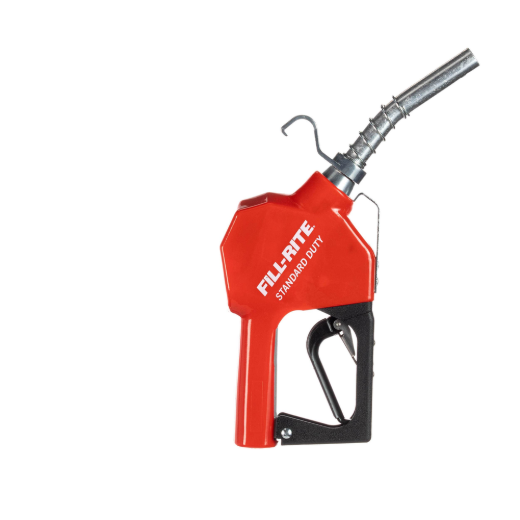

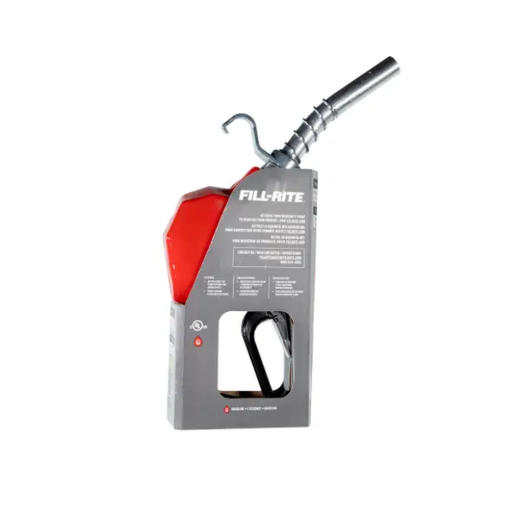

Fill-Rite Automatic Gasoline Spout Nozzle - 3/4" - Red

Mfr.: Tuthill Fill-Rite
Item #: I094486
Mfr. #: SDN075RAN
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $103.47
i h h

Description

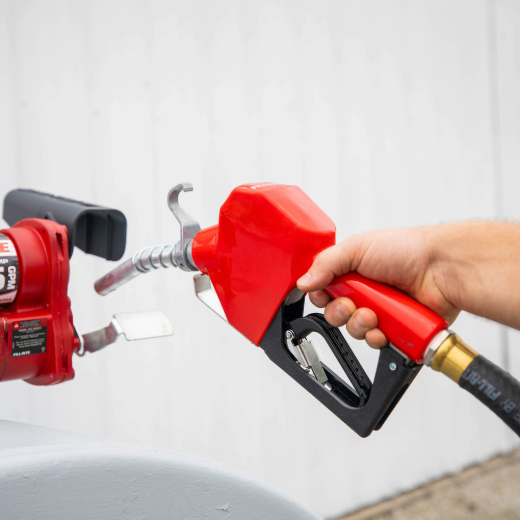

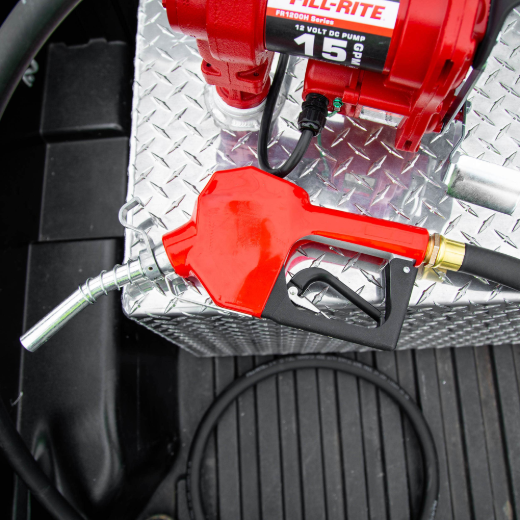

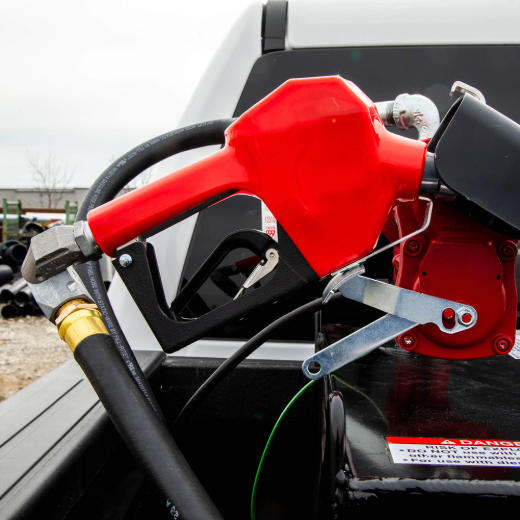

The SDN075RAN is a 0.75 inch automatic shutoff nozzle designed for fuel transfer applications, specifically for gasoline. It features a red jacket and is part of the Fill-Rite SD Series, offering standard-duty performance with reliable construction.
  • Automatic shut-off prevents overfilling and spilling
  • Cast-aluminum construction for durability

Features

  • Cast-Aluminum Construction - engineered with rugged cast-aluminum construction, built to last through the most demanding applications
  • Easy to Use - included spout spring on automatic nozzles ensure optimal nozzle placement each time you fill, eliminating opportunity for damage
  • Adjustable Latching - three separate latch positions on automatic nozzles allow you to quickly and easily tailor flow rates for different equipment
  • Automatic Shut-Off - automatic shut-off reduces mess by preventing overfilling and spilling, keeping you safe and efficient
  • Multiple Configurations - available in a variety of configurations to meet your application's temperature, flow, and fluid compatibility requirements

Includes

  • Spout spring
Products specifications
Model SDN075RAN
Type Automatic nozzle
Application Gasoline
Spout Size 13/16 inch
Inlet Size 0.75 inch
Inlet Connection Female NPT
Max Flow Rate 14.5 GPM
Max Pressure 50 PSI
Jacket Color Red
Construction Cast-aluminum
Latch Positions 3

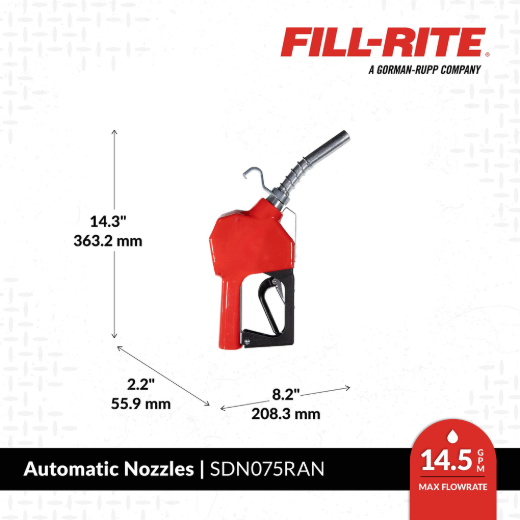

Package Dimensions 14.5 x 9.5 x N/A in
Weight 2.93 lbs
*
*
*
