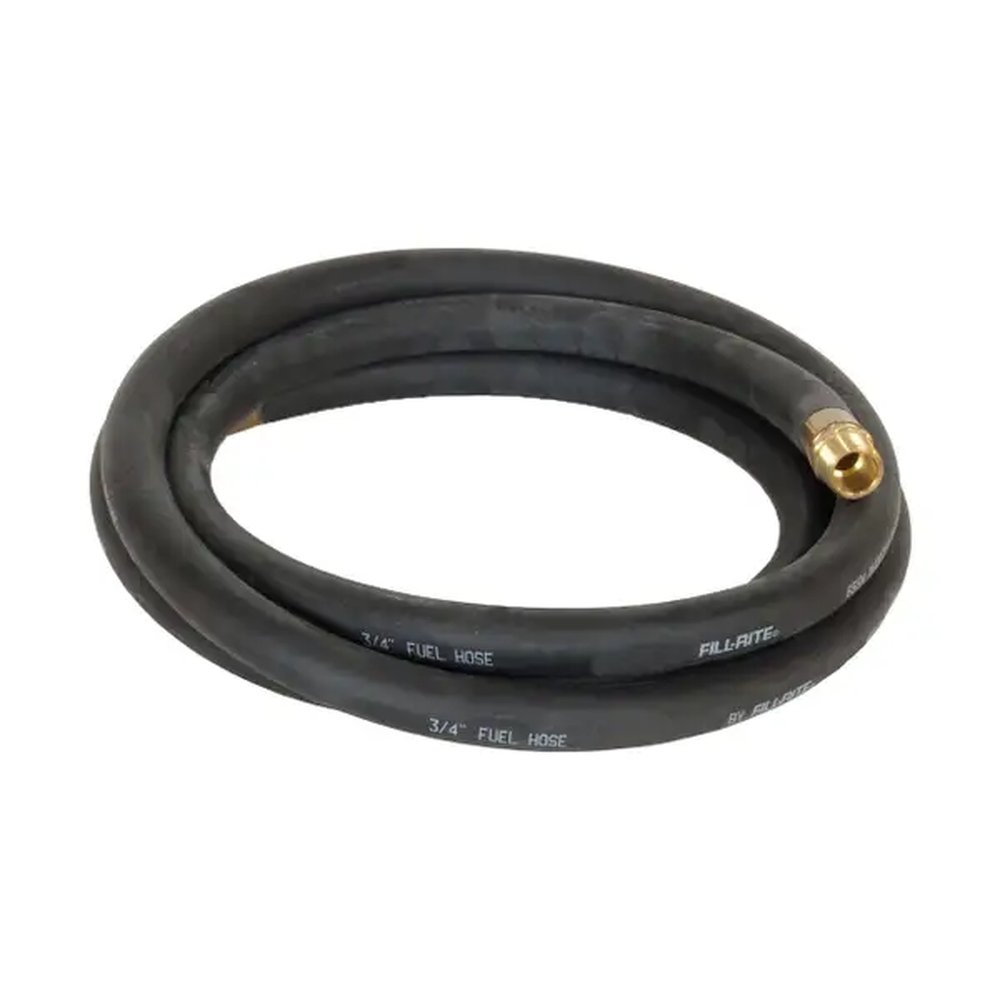

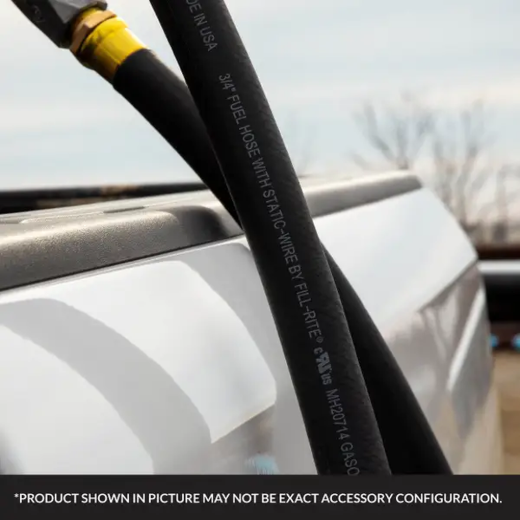

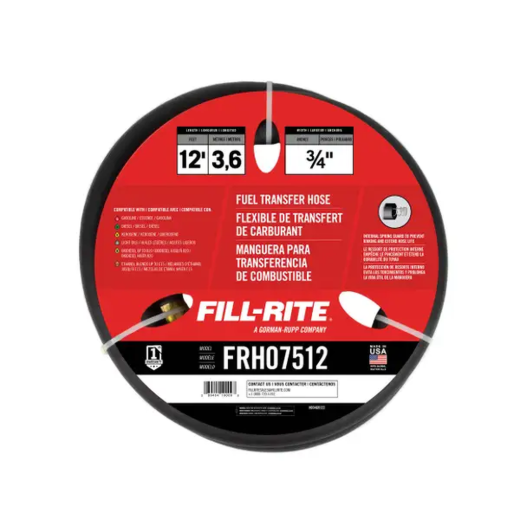

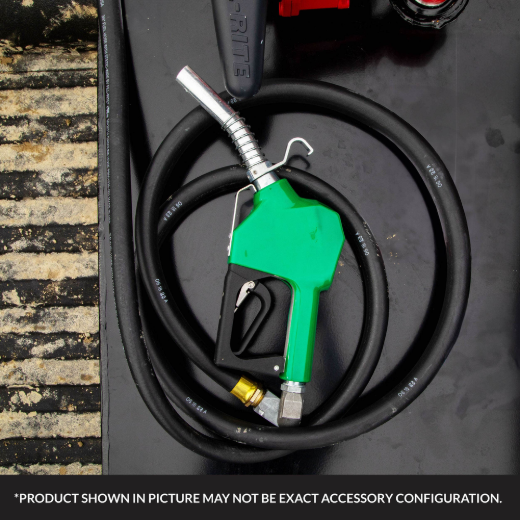

Fill-Rite Fuel Transfer Hose with Static Wire & Internal Spring Guards - 3/4" x 12'

Mfr.: Tuthill Fill-Rite
Item #: I094472
Mfr. #: FRH07512
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $50.37
i h h

Description

A 0.75-inch by 12-foot fuel transfer hose designed for transferring various fuels and oils. It features a stainless steel ground wire for safety and an internal spring guard to prevent kinking, ensuring reliable performance in demanding conditions.
  • Stainless steel ground wire runs entire length for static prevention
  • Internal spring guard reduces kinking for smooth fluid flow

Features

  • Durable Construction - nitrile inner tube resists corrosion from fuels while rugged neoprene exterior withstands abrasive outdoor environments
  • Anti-Kink Performance - internal spring guard reduces kinking during use, ensuring smooth fluid flow and longer hose life
  • Internal Ground Wire - stainless steel ground wire runs the entire length of the hose, ensuring safety by preventing static buildup
  • Multiple Sizes Available - configurations available in 12-, 14-, and 20-foot lengths with 3/4 inch and 1 inch NPT threads, meeting the specific needs of your application
  • UL Listed Models Available - models FRH07512UL and FRH10012UL are UL Listed for compliance in AC voltage applications

Includes

  • Discharge Hose 3/4 inch X 12' Hose with Static Ground Wire
Products specifications
Model FRH07512
Hose Diameter 0.75 in
Hose Length 12 ft
Inlet Size 0.75 in
Inlet Connection Male
Inlet Thread NPT
Outlet Size 0.75 in
Outlet Connection Male
Outlet Thread NPT
Max Pressure 50 PSI
Static Wire Yes
Inner Tube Material Nitrile
Exterior Material Neoprene
Assembled Height 1.4 in
Assembled Width 1.4 in
Assembled Depth 144 in
Assembled Weight 4.5 lbs
Package Height 5.5 in
Package Width 15.5 in
Package Depth 19.5 in
Gross Weight 4.67 lbs
Compatible Fluids Diesel, Gasoline, Oils
Spring Guard Length 7 in
*
*
*
