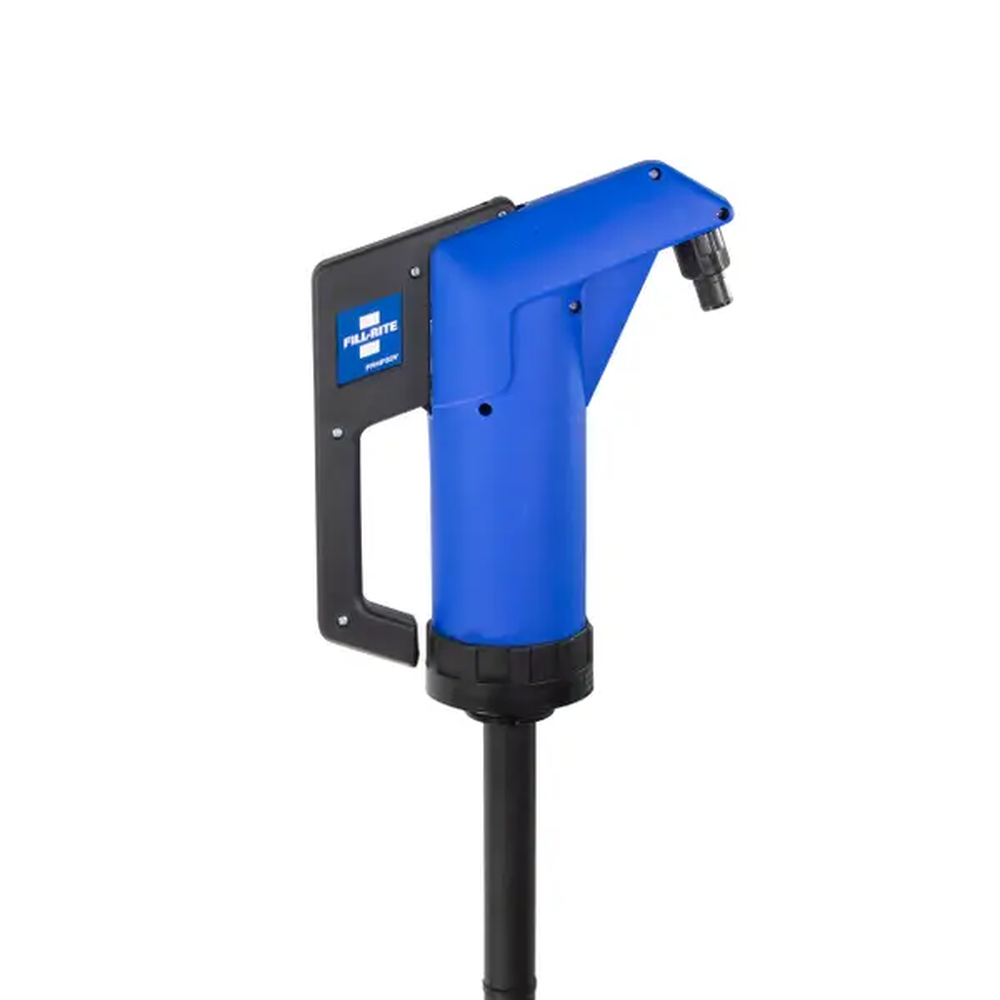

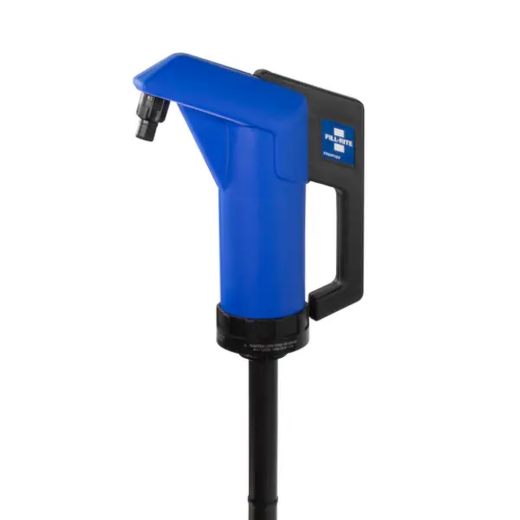

Fill-Rite DEF Hand-Operated Lever Pump

Mfr.: Tuthill Fill-Rite
Item #: I094478
Mfr. #: FRHP32V
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $163.28
i h h

Description

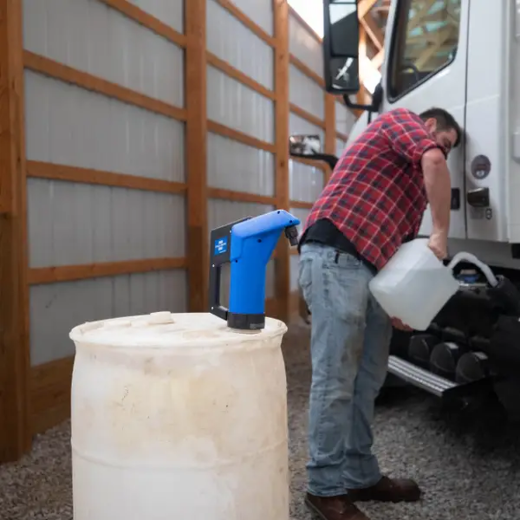

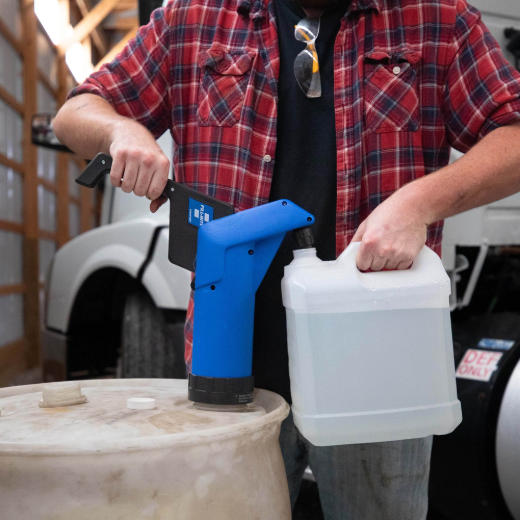

A hand-operated, economy chemical transfer pump designed for low-volume transfer applications from 55-gallon drums, delivering 11 oz. per stroke without requiring electricity.
  • No electricity needed - ideal for low-volume applications where power is unavailable
  • Economical solution - reliably transfers 11 oz. per stroke from 55-gallon drums

Features

  • Polypropylene Construction - rugged polypropylene body resists corrosion in demanding chemical and industrial applications
  • Economical Solution - reliably transfers 11 oz. per stroke from 55-gallon drums in low-volume transfer applications
  • No Electricity Needed- ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
  • Flexible Fluid Compatibility - compatible with a wide variety of fuel, oil, and chemical fluids

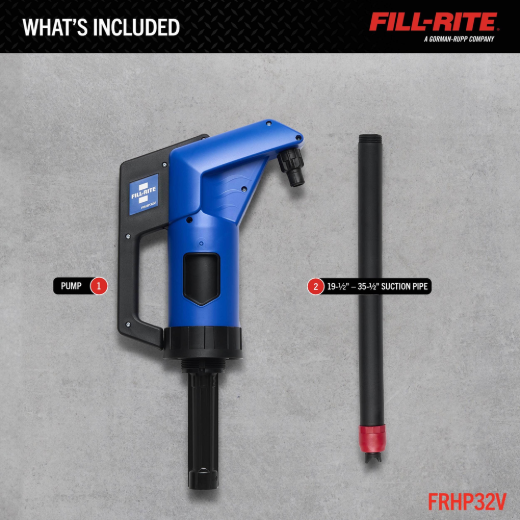

Includes

  • Suction Pipe
  • Installation components
Products specifications
Model FRHP32V
Max Flowrate 11 oz. Per Stroke / 33 mL
Power Type Hand-Operated
Compatible Fluids Diesel, DEF, Antifreeze, Mild Acids, Light Oils
Inlet Size 1 inch
Inlet Thread NPT
Outlet Size 0.75 inch
Outlet Connection Hose Barb
Mounting Size 2 inch
Mounting Thread NPT
Mounting Type Bung Mount
Self Priming No
Duty Cycle Continuous Duty
Suction Pipe Type Polypropylene Telescoping
Suction Pipe Length 19 1/2 inch - 35 1/2 inch

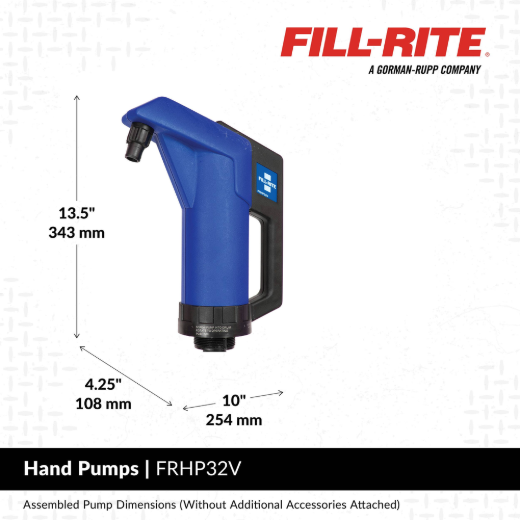

Assembled Height 13.5 in
Assembled Width 9.25 in
Assembled Depth 4.0 in
Assembled Weight 2.7 lbs
Package Height 9.33 in
Package Width 20.79 in
Package Depth 4.45 in
Gross Weight 3.4 lbs
Material Polypropylene
Construction Rugged polypropylene body
Corrosion Resistance Yes
Application Chemical and industrial
Transfer Volume Low-volume
Source Capacity 55-gallon drums
Mobility Stationary or mobile use
Fluid Types Fuel, oil, chemical fluids
*
*
*
