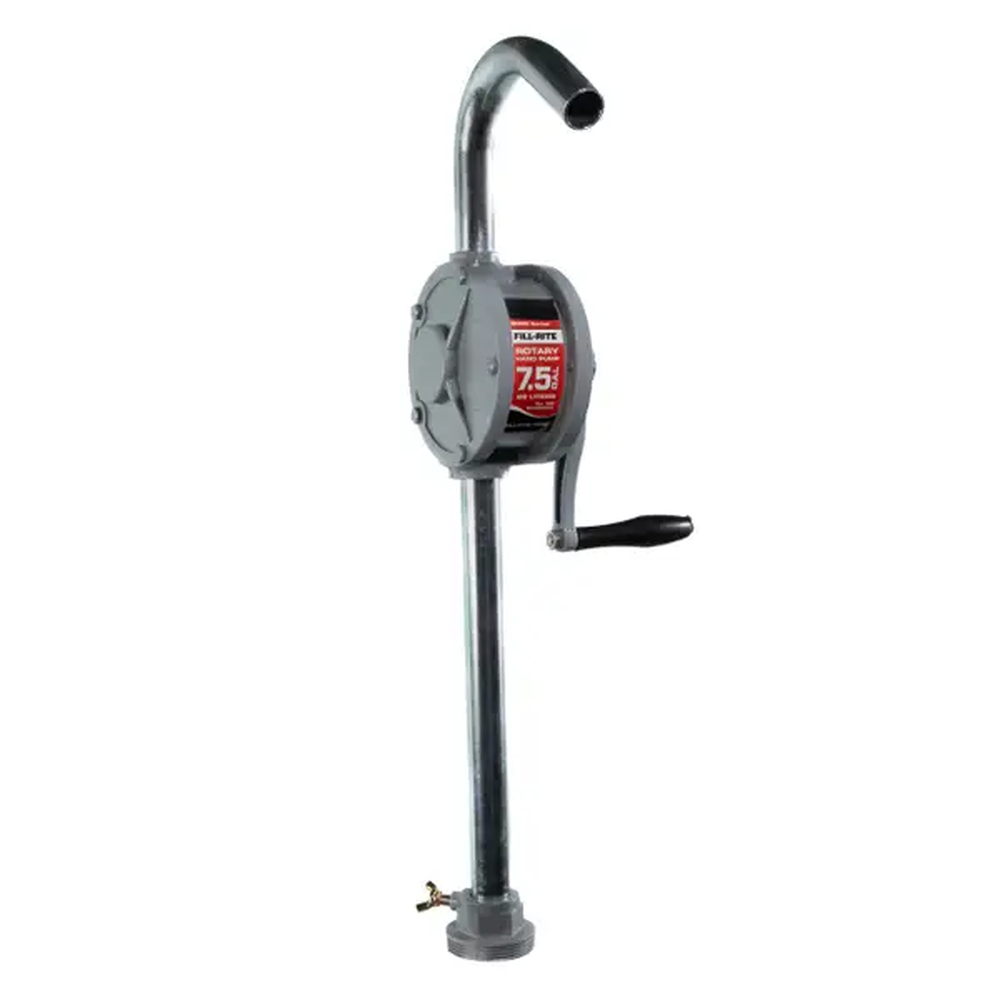

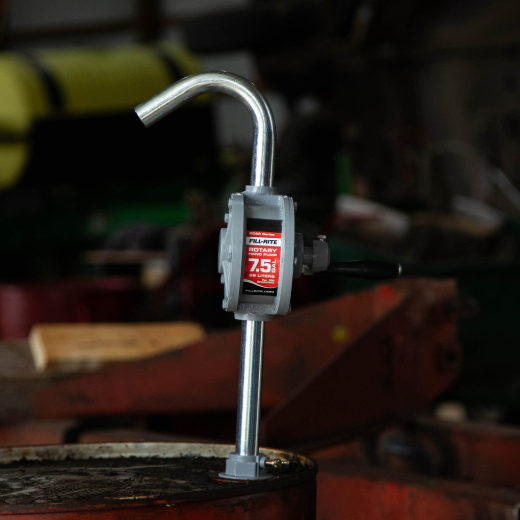

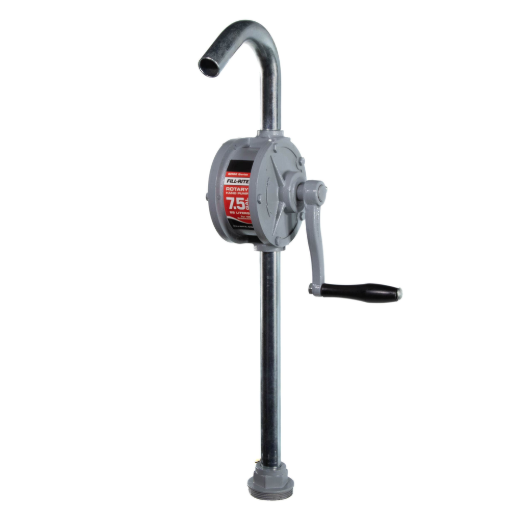

Fill-Rite Rotary Hand-Operated Fuel Transfer Pump with Pail Spout

Mfr.: Tuthill Fill-Rite
Item #: I094484
Mfr. #: SD62
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $122.11
i h h

Description

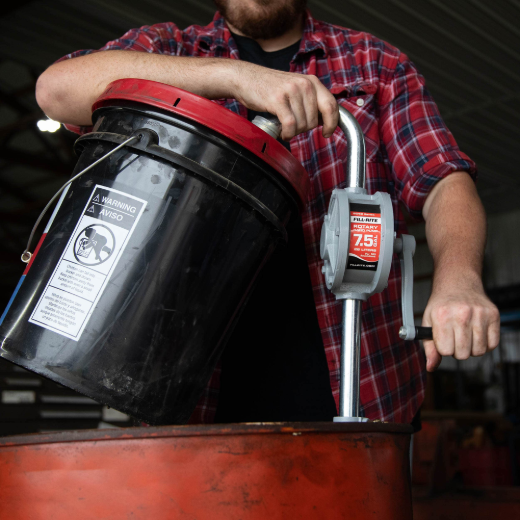

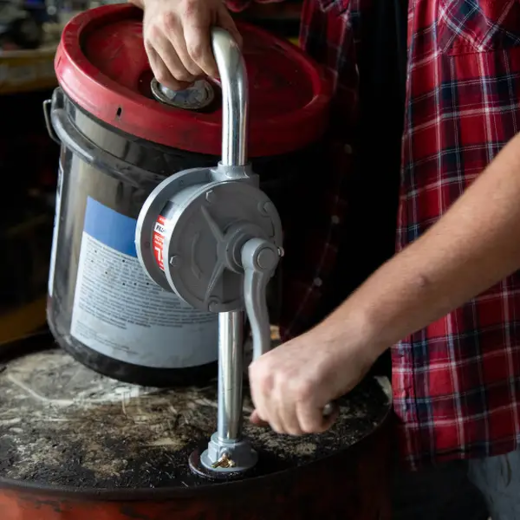

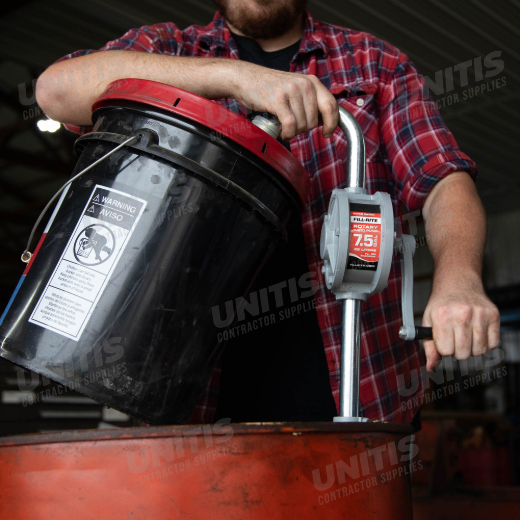

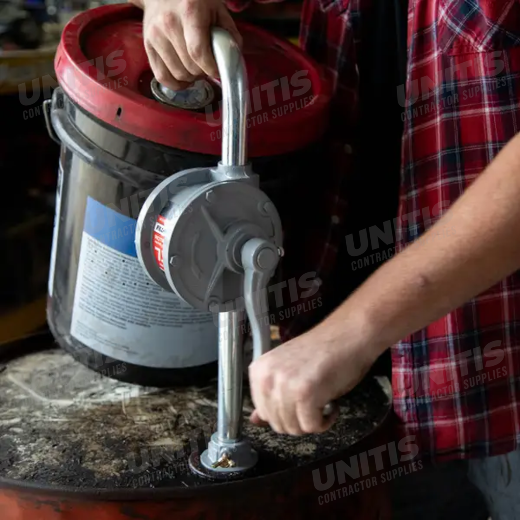

The SD62 is a hand-operated, economy fuel transfer pump designed for small volume applications around the home or shop. It delivers 7.5 gallons per 100 revolutions and comes complete with installation components, requiring no electricity for operation.
  • Economical solution for small volume applications
  • No electricity needed for complete mobility

Features

  • Economical Solution - standard-duty performance is ideal for small volume applications around the home or shop
  • No Electricity Needed- ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility
  • Flexible Fluid Compatibility - compatible with a variety of fluids including automotive fluids for use on a drum, tote, or barrel
  • Constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications
  • Supported by a wide network of distributors and retailers for replacement parts and rebuild kits

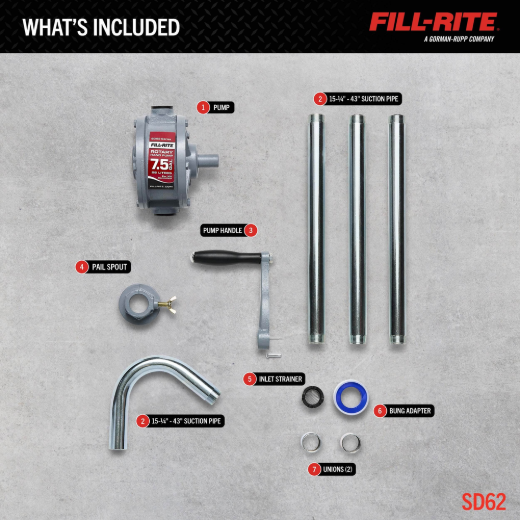

Includes

  • Spout
  • Suction pipe
  • Installation components
Products specifications
Model SD62
Type Rotary Hand-Operated Fuel Pump
Max Flow Rate 7.5 Gal/100 Revolutions
Flow Rate Liters 28 Liters/100 Revolutions
Power Type Hand-Operated
Compatible Fluids Diesel, Mineral Spirits
Inlet Size 0.75 inch
Inlet Connection Female NPT
Outlet Size 0.75 inch
Outlet Connection Female NPT
Mounting Size 2 inch
Mounting Thread NPT
Mounting Type Bung Mount
Self Priming No
Duty Cycle Continuous
Suction Pipe 15 1/4 inch - 43 inch Steel 3-Piece
Nozzle 3/4 inch Cast Aluminum Pail Spout
Discharge Hose Not Included
Additional Accessories None

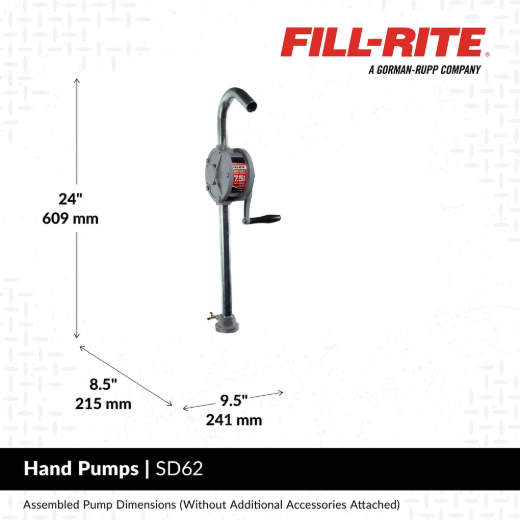

Product Height 10.6 inches
Product Width 10.0 inches
Product Depth 8.1 inches
Product Weight 9.8 lbs
Package Height 5.75 inches
Package Width 6.5 inches
Package Depth 14.5 inches
Gross Weight 11.4 lbs
*
*
*
