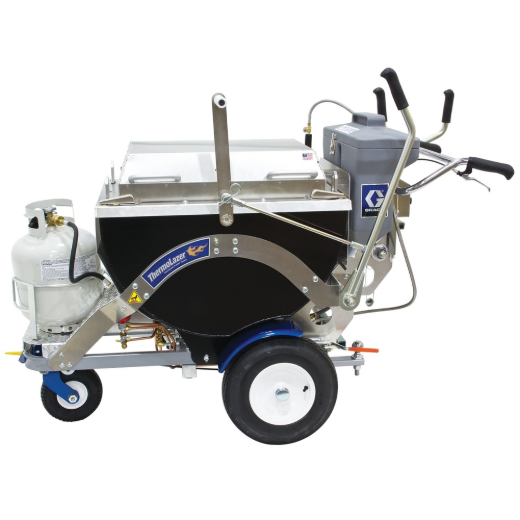

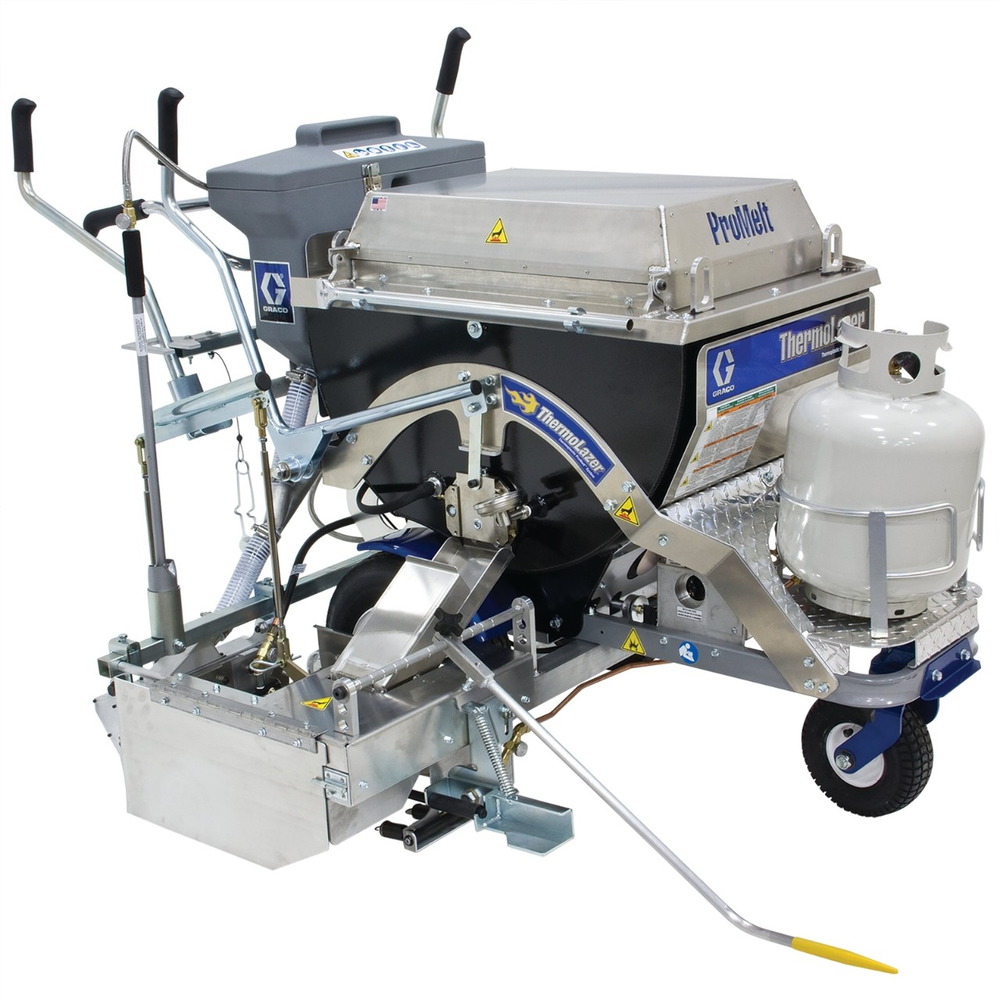

Graco ThermoLazer ProMelt Thermoplastic Striping System with 4 in. SmartDie II

Mfr.: Graco Inc
Item #: I098483
Mfr. #: 24H623
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $30,028.64
i h h

Description

The ThermoLazer ProMelt unit is a walk-behind line striper that melts 300 lbs of thermoplastic on board in less than an hour, eliminating the need for a premelt kettle truck or trailer. It features ProMelt technology, SmartDie II system, and ergonomic design for easy operation.
  • Melts 300 lbs of thermoplastic on board in less than an hour
  • 4 Chamber Melting System with 100,000 BTUs
  • SmartDie II System with fast change-out and mil thickness adjustment
  • Ease-Z-Steer Handle Bar System for easy turning and handling
  • Optional LineDriver System for higher productivity

Features

  • ProMelt Technology: 4 Chamber Melting System, 100,000 BTUs
  • SmartDie II System: fast change-out, hardened steel dies, mil thickness adjustment, use with or without heat, floats with surface, external heat system with 4-torch die heat
  • Ergonomic Design: easier to use, almost effortless to push/pull

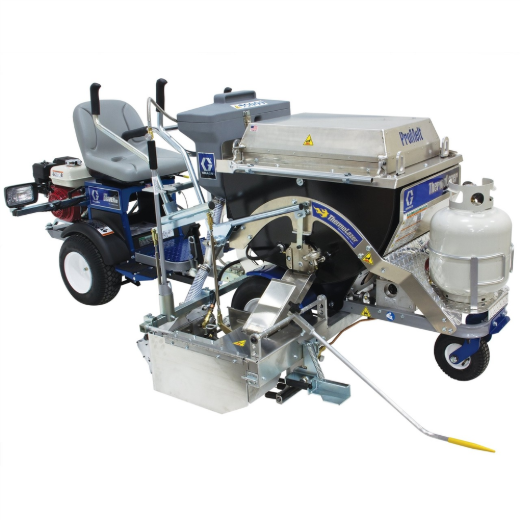

  • Optional LineDriver System: higher productivity, straighter lines, patented dual pedal system

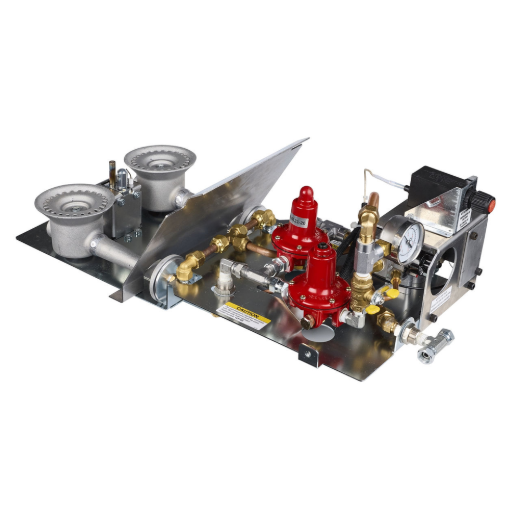

  • ProMelt Burner Tray: removable in minutes for easy maintenance

Includes

  • 4 in SmartDie II

Specifications


Compatible MaterialGlass Beads, Alkyds, ThermoplasticCompatible SurfacesPavement
Maximum Working Pressure (psi)250ModelThermoLazer
Number of ColorsOne ColorNumber of Hoppers1
SeriesProMeltTypeWalk-Behind Line Striper
Weight (lb)345Maximum Working Pressure (bar)17.24
Maximum Working Pressure (kPa)172.4Weight (kg)156.5
*
*
*
