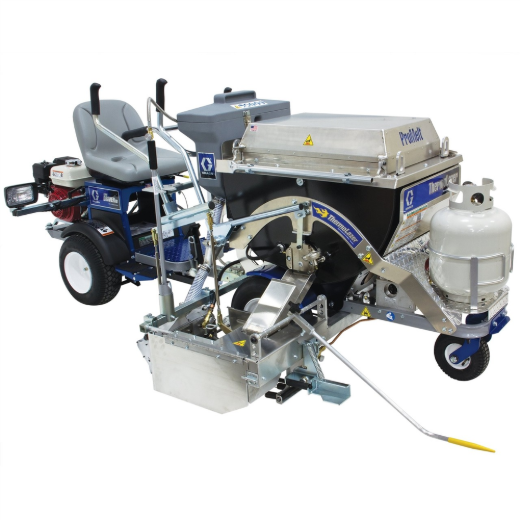

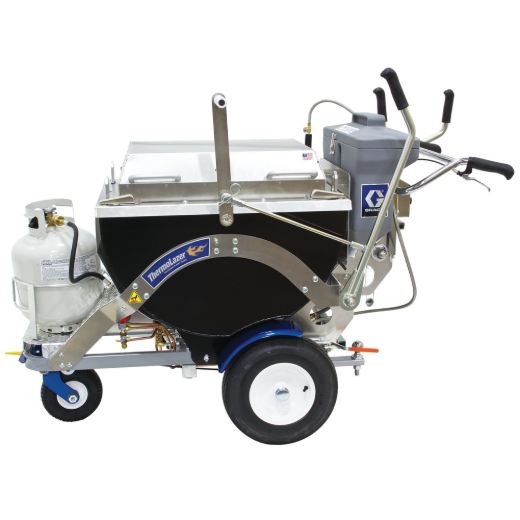

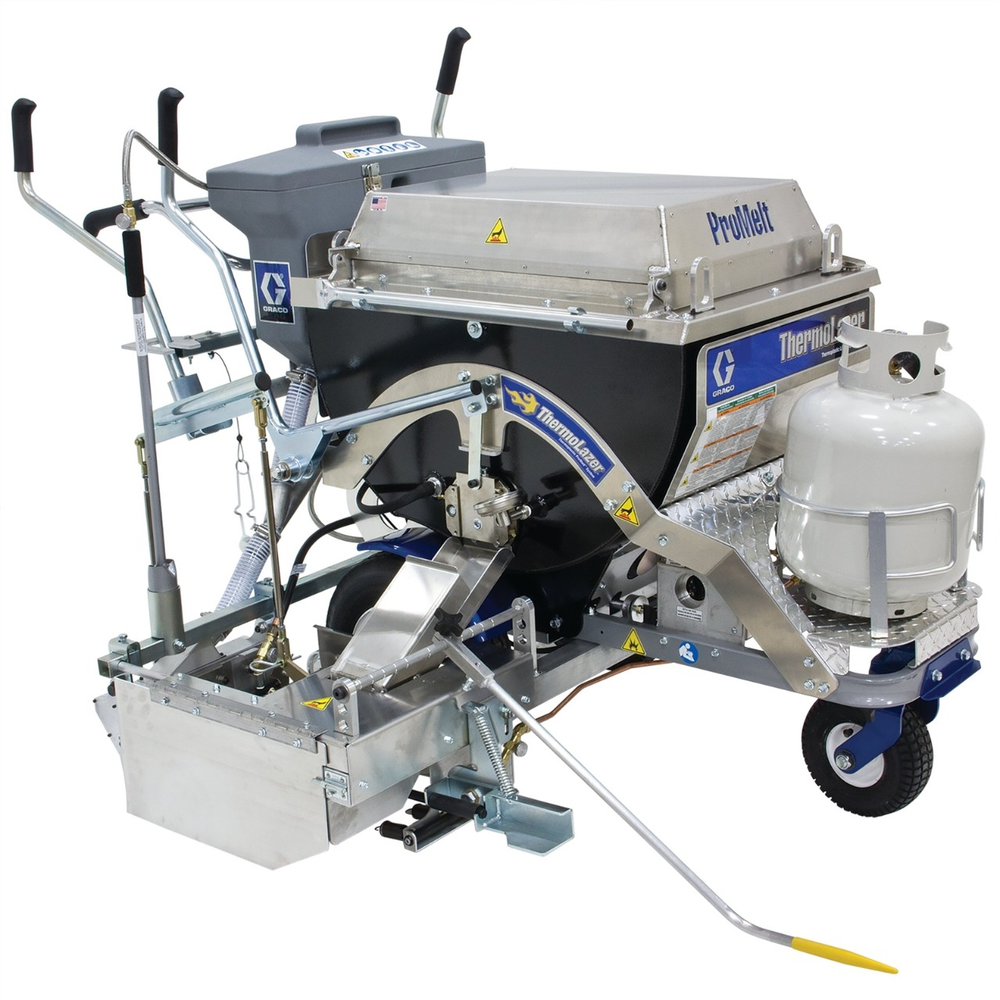

Graco ThermoLazer ProMelt Thermoplastic Striping System with 6 in. SmartDie II

Mfr.: Graco Inc
Item #: I098484
Mfr. #: 24R763
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $30,642.24
i h h

Description

The ThermoLazer ProMelt System is a walk-behind line striper that eliminates the need for a costly premelter system, melting 300 lbs of thermoplastic in less than 1.5 hours. It features a QuadMelt four-chamber melting system and a 100,000 BTU heating system for high production.
  • QuadMelt System: Four chamber melting system for more melting surface
  • SmartDie II System: Floats on the surface for superior line quality
  • Bead Dispensing System: Tool-free line width adjustments
  • EasyGlide Wheel System: Air-filled tires for easy movement

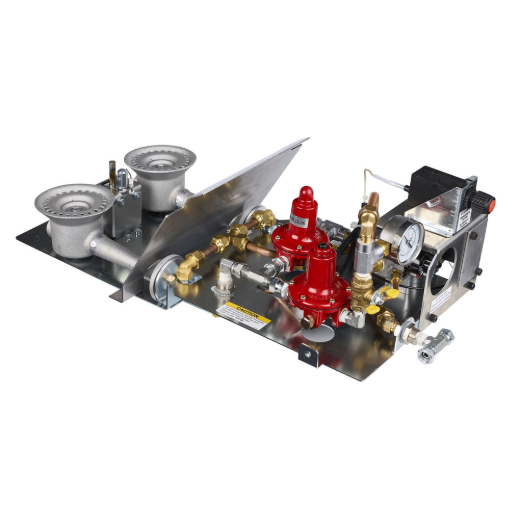

  • ProMelt Burner Tray: Removable in minutes for easy maintenance

Features

  • QuadMelt System with four chamber melting
  • 100,000 BTU heating system
  • SmartDie II with no-tool die change
  • Bead Dispensing System with tool-free adjustments
  • EasyGlide Wheel System with air-filled tires

Includes

  • 6 in SmartDie II

Specifications


Compatible MaterialGlass Beads, Alkyds, ThermoplasticCompatible SurfacesPavement
Maximum Working Pressure (psi)250ModelThermoLazer
Number of ColorsOne ColorNumber of Hoppers1
SeriesProMeltTypeWalk-Behind Line Striper
Weight (lb)345Maximum Working Pressure (bar)17.24
Maximum Working Pressure (kPa)172.4Weight (kg)156.5
*
*
*
