Greenstreak Model 701 PVC Waterstop 4"x3/16" T RCB, 100 ft roll, priced per foot

Mfr.: Greenstreak -Sika
Item #: I101480
Mfr. #: 419427
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $3.23
i h h

Description

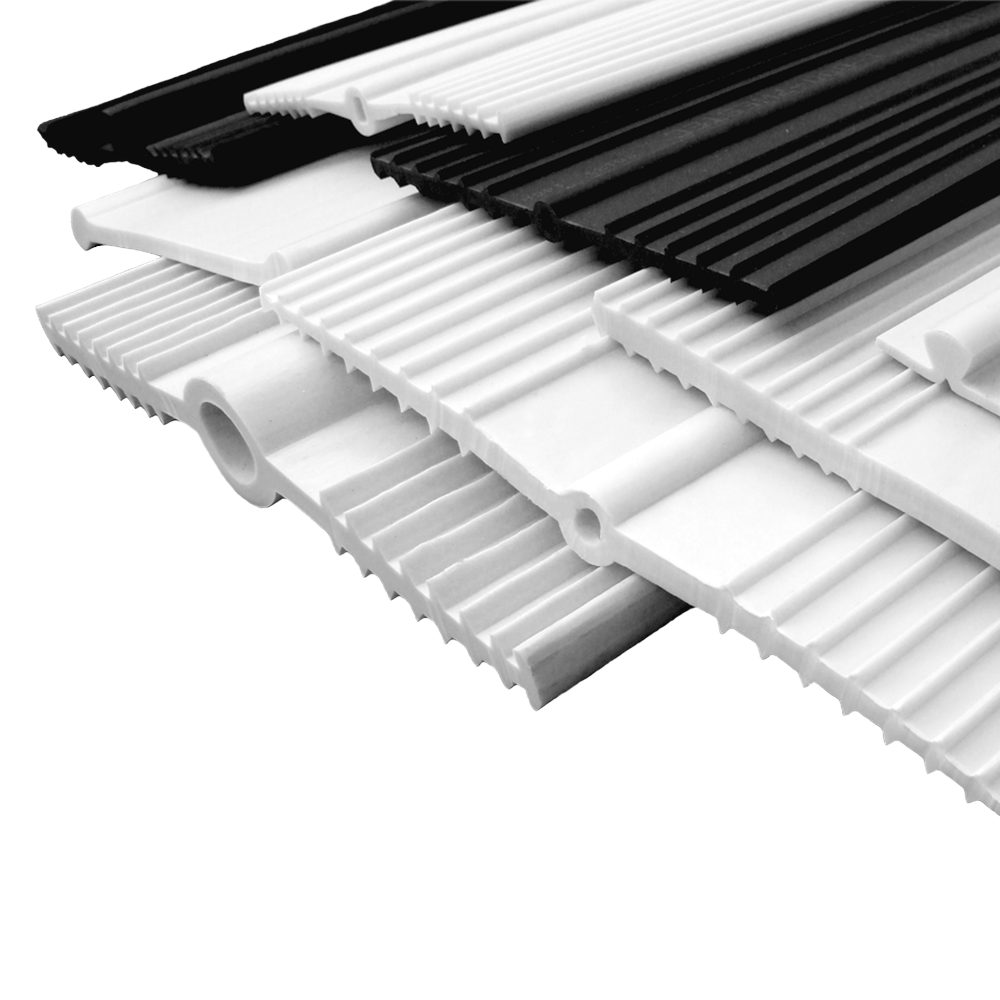

Greenstreak Model 701 is a 4 in. flexible PVC ribbed waterstop with a tear-web center bulb, engineered for moving expansion joints in concrete. The hollow center bulb spans the joint gap and accommodates lateral and shear movement, while the tear web allows the bulb to expand as the joint opens. Forms a watertight diaphragm and is suitable for potable water per NSF/ANSI 61.
  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Flexible PVC with tear-web center bulb for expansion/moving joints
  • Center bulb accommodates joint movement in multiple directions
  • Ribbed profile keys into concrete for pull-out resistance
  • NSF/ANSI 61 certified for potable water contact
  • Complies with U.S. Army Corps of Engineers spec CRD-C 572-74

Features

  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Flexible PVC with tear-web center bulb for expansion/moving joints
  • Center bulb accommodates joint movement in multiple directions
  • Ribbed profile keys into concrete for pull-out resistance
  • NSF/ANSI 61 certified for potable water contact
  • Complies with U.S. Army Corps of Engineers spec CRD-C 572-74
  • Model: 701
  • Size: 4 in. x 3/16 in.
  • Profile: Tear-web Ribbed Center Bulb (T RCB)
  • Roll length: 100 ft
  • Material: PVC
  • Joint type: Moving / expansion joint
  • Priced per foot

Specifications


Model701Size4 inch x 3/16 inch
ProfileTear-web Ribbed Center Bulb (T RCB)Roll length100 ft
MaterialPVCJoint typeMoving / expansion joint
Shore A Hardness79 +/- 3 (ASTM D2240)Tensile Strength2000 psi min (ASTM D638)
StandardsNSF/ANSI 61; CRD-C 572-74PricingPer foot
*
*
*
