  • Greenstreak Model 705 PVC Waterstop 6"x3/8" T RCB, 50 ft roll, priced per foot

Greenstreak Model 705 PVC Waterstop 6"x3/8" T RCB, 50 ft roll, priced per foot

Mfr.: Greenstreak -Sika
Item #: I101483
Mfr. #: 419446
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $9.09
i h h

Description

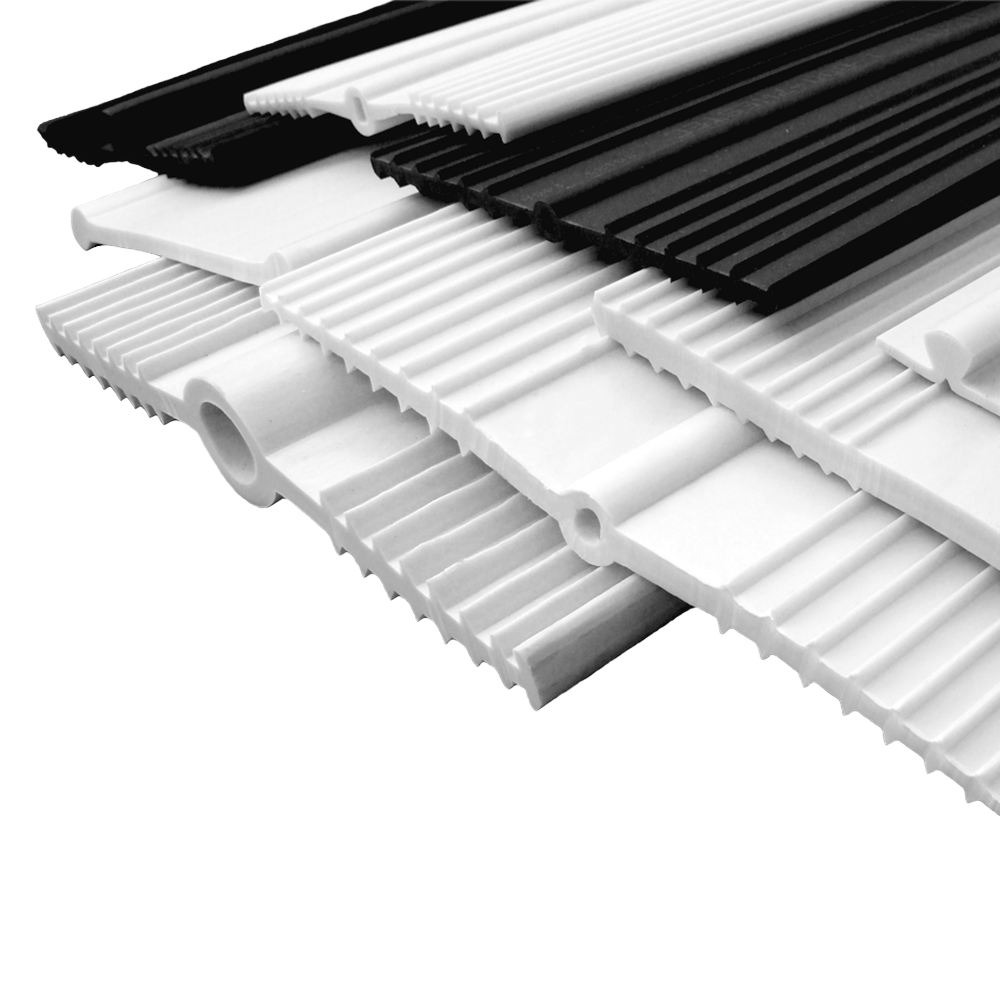

Greenstreak Model 705 is a 6 in. flexible PVC ribbed waterstop with a tear-web center bulb, designed for moving expansion joints in cast-in-place concrete. Its hollow center bulb spans the joint gap to accept movement, the tear web allows bulb expansion, and the ribbed faces mechanically anchor the waterstop. Forms a watertight diaphragm and is approved for potable water per NSF/ANSI 61.
  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Flexible PVC with tear-web center bulb for expansion/moving joints
  • Heavier 3/8 in. gauge for demanding hydrostatic conditions
  • Ribbed profile keys into concrete for pull-out resistance
  • NSF/ANSI 61 certified for potable water contact
  • Complies with U.S. Army Corps of Engineers spec CRD-C 572-74

Features

  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Flexible PVC with tear-web center bulb for expansion/moving joints
  • Heavier 3/8 in. gauge for demanding hydrostatic conditions
  • Ribbed profile keys into concrete for pull-out resistance
  • NSF/ANSI 61 certified for potable water contact
  • Complies with U.S. Army Corps of Engineers spec CRD-C 572-74
  • Model: 705
  • Size: 6 in. x 3/8 in.
  • Profile: Tear-web Ribbed Center Bulb (T RCB)
  • Roll length: 50 ft
  • Material: PVC
  • Joint type: Moving / expansion joint
  • Priced per foot

Specifications


Model705Size6 inch x 3/8 inch
ProfileTear-web Ribbed Center Bulb (T RCB)Roll length50 ft
MaterialPVCJoint typeMoving / expansion joint
Shore A Hardness79 +/- 3 (ASTM D2240)Tensile Strength2000 psi min (ASTM D638)
StandardsNSF/ANSI 61; CRD-C 572-74PricingPer foot
*
*
*
