Greenstreak Model 748 PVC Waterstop 6" x 3/8" DB, 50 ft roll, priced per foot

Mfr.: Greenstreak -Sika
Item #: I101488
Mfr. #: 419547
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $11.52
i h h

Description

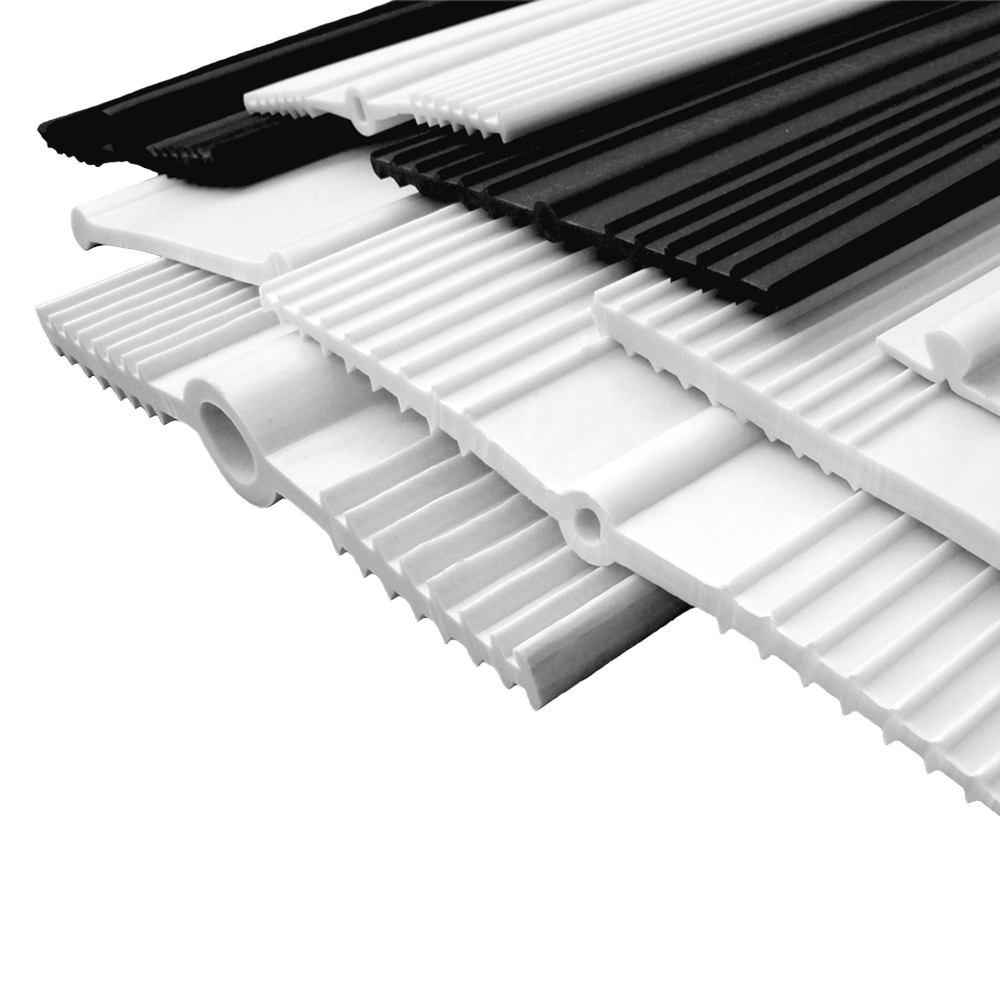

Greenstreak Model 748 is a flexible PVC waterstop with a 6 in. wide dumbbell (DB) profile and 3/8 in. thickness, designed for non-moving construction joints in concrete. Embedded across and/or along the joint, it forms a watertight diaphragm that prevents the passage of liquid. It is supplied in 50 ft rolls and priced per foot.
  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Dumbbell profile for non-moving construction joints
  • Forms a continuous watertight diaphragm when embedded in concrete
  • Flexible PVC remains pliable for proper embedment and sealing
  • Suitable for potable water contact per NSF/ANSI Standard 61

Features

  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • 6 in. wide x 3/8 in. thick dumbbell profile
  • Supplied in 50 ft rolls, priced per foot
  • Meets Army Corps of Engineers PVC Waterstop Specification CRD-C 572-74
  • Shore A hardness 79 +/- 3; tensile strength 2000 psi min; elongation 350%
  • Passes brittleness test at -35 degrees F (-37 degrees C)
  • Applications: water treatment plants, dams, reservoirs, tanks, foundations, tunnels

Specifications


Model748ProfileDumbbell (DB)
Width6 inchThickness3/8 inch
Roll length50 ftPricingPer foot
MaterialFlexible PVCJoint typeNon-moving construction joint
Shore A hardness79 +/- 3Tensile strength2000 psi min
Elongation350%Tear strength300 lb/in min
Low temperaturePasses brittleness at -35 FStandardsNSF/ANSI 61, CRD-C 572-74
*
*
*
