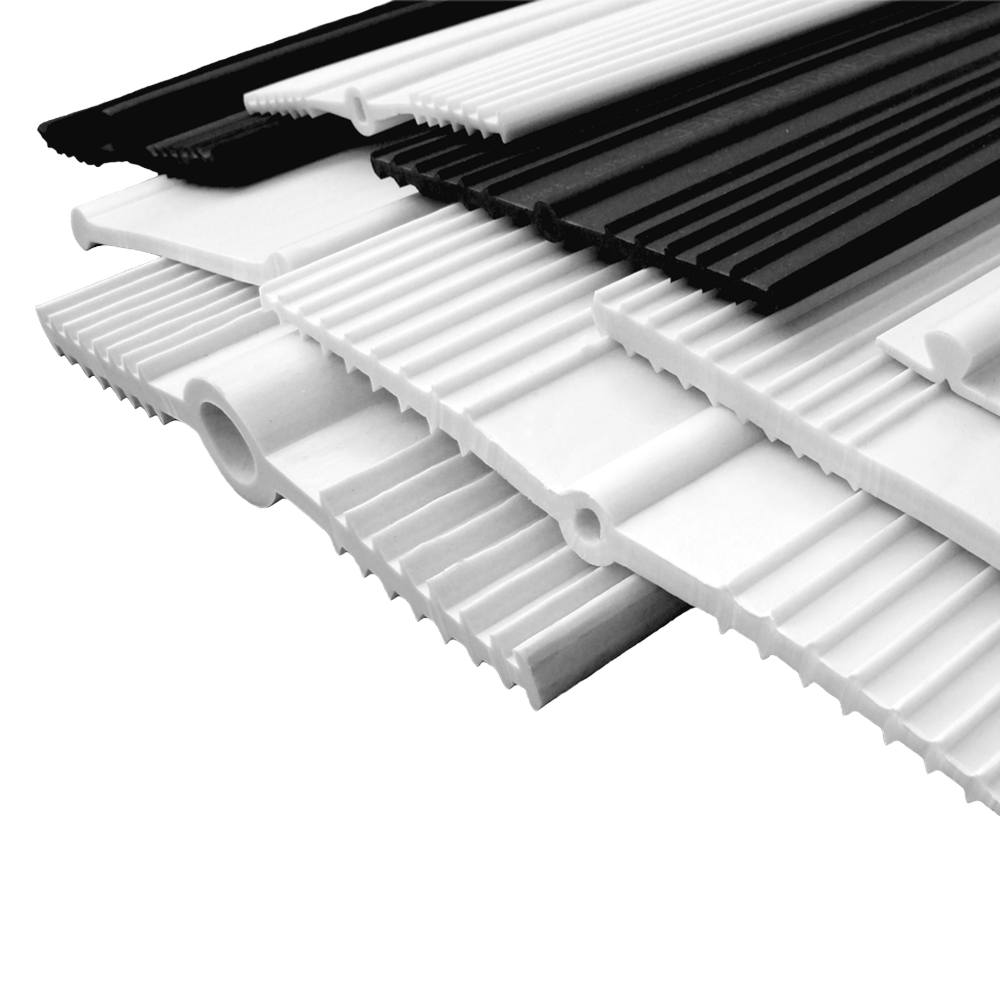

Greenstreak Model 781 PVC Waterstop 4"x3/16" T FR, 100 ft roll, priced per foot

Description

• Flat ribbed profile enhances mechanical bond within poured concrete
• Optimized for construction joint water sealing
• Durable PVC material provides resistance to water, chemicals, and aging
• Used in slabs, walls, and structures requiring dependable watertight joints
• Tear-web center accommodates expansion and contraction joint movement
• Flat ribbed flanges provide superior anchorage in concrete
• Forms a continuous watertight diaphragm across the joint
• Suitable for potable water contact per NSF/ANSI Standard 61

Features

• Flat ribbed profile enhances mechanical bond within poured concrete
• Optimized for construction joint water sealing
• Durable PVC material provides resistance to water, chemicals, and aging
• Used in slabs, walls, and structures requiring dependable watertight joints
• 4 in. wide x 3/16 in. thick tear-web, flat ribbed profile
• Supplied in 100 ft rolls, priced per foot
• Approximate weight 0.43 lb/ft (0.64 kg/m)
• Head pressure rating approximately 65 ft (194 kPa)
• Meets Army Corps of Engineers Specification CRD-C 572-74; passes brittleness at -35 F
• Applications: expansion joints in dams, tanks, tunnels, water treatment structures
