Hard Surface Guard 06 (6 in H x 7' L)

Mfr.: Ertec Pro Wattle
Item #: I090690
Mfr. #: HSG 06 - Black
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: Call for pricing
i h h

Description

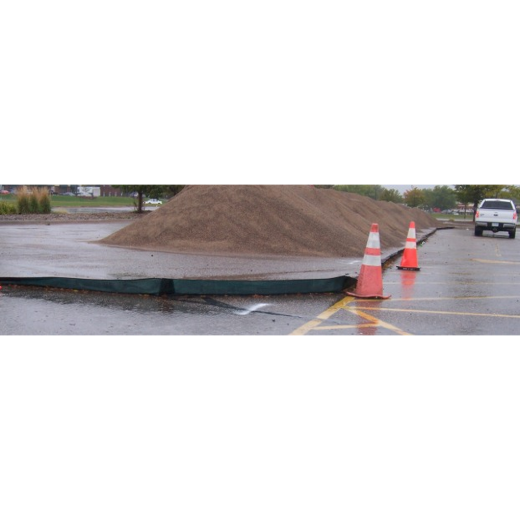

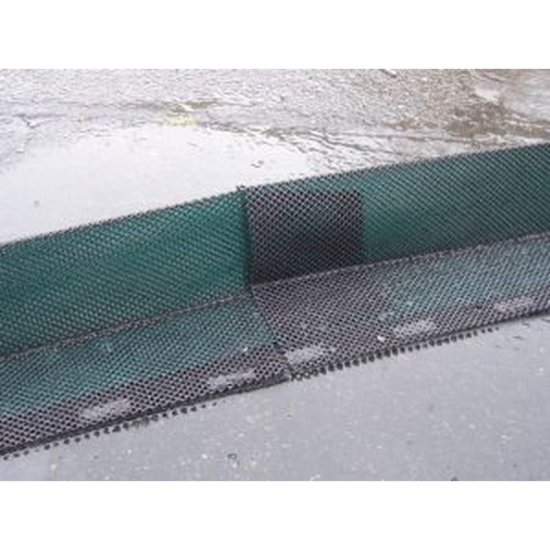

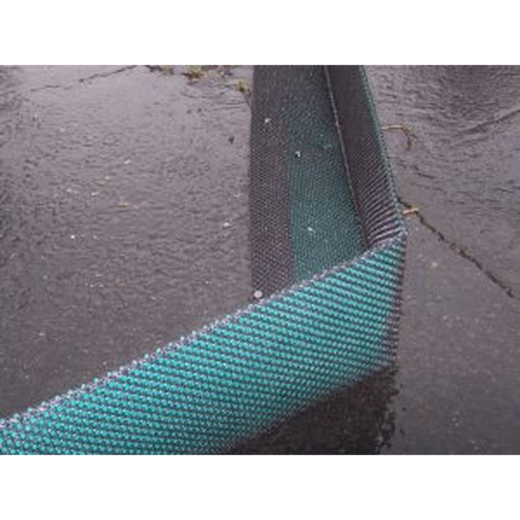

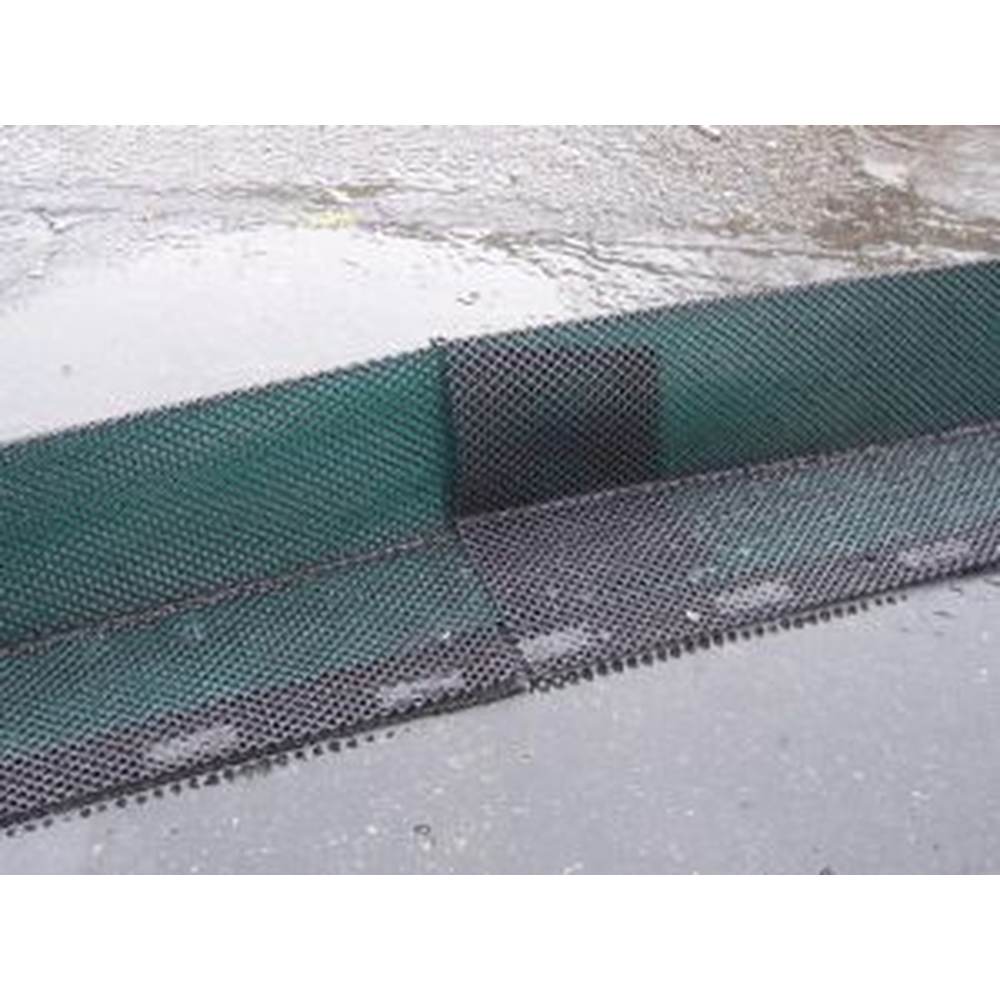

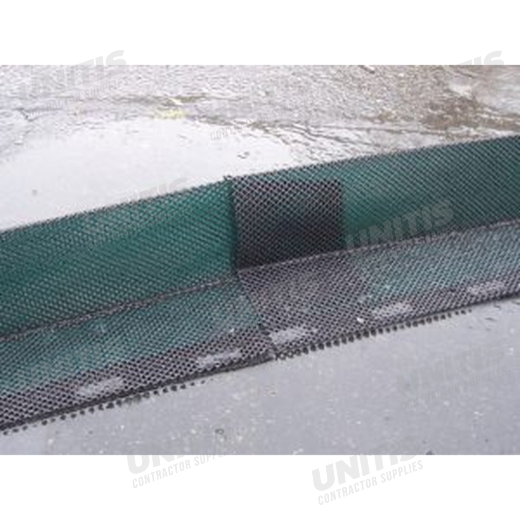

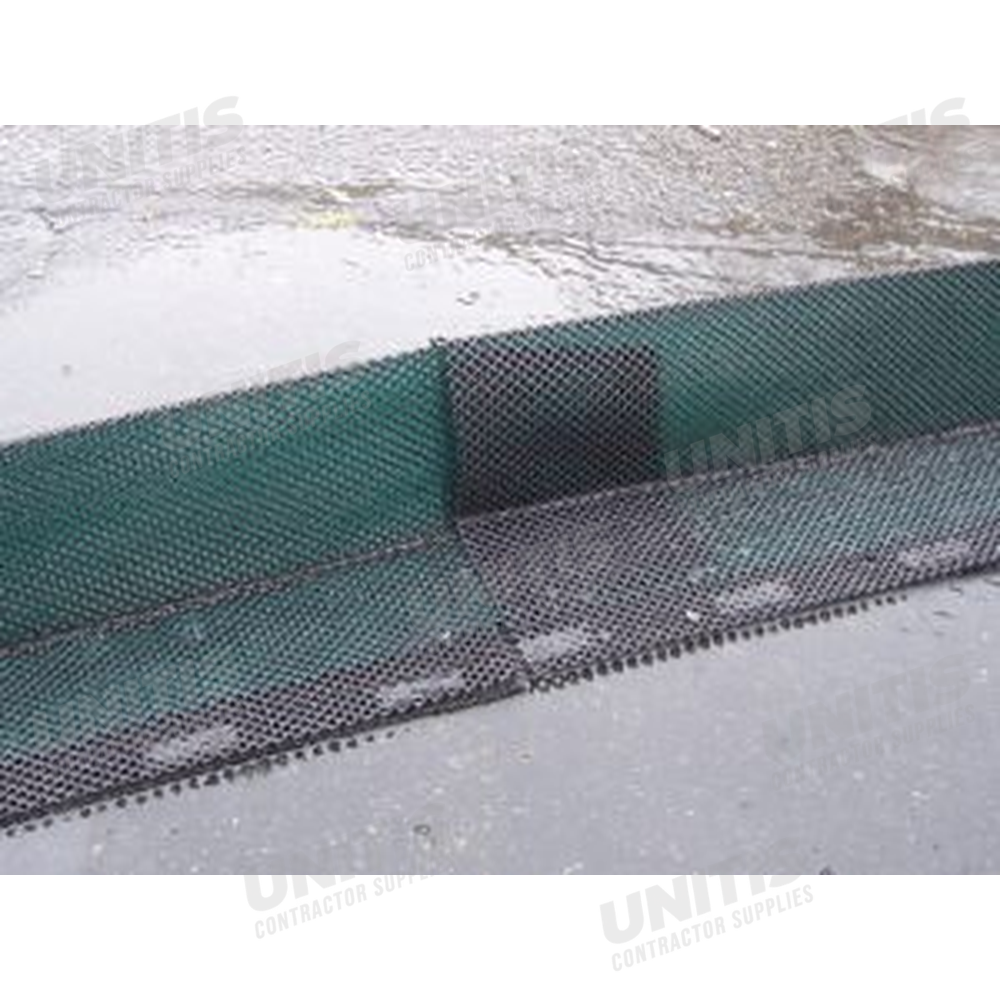

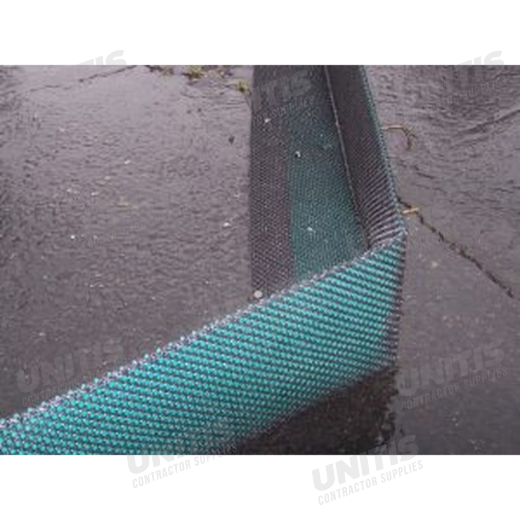

Hard Surface Guard 06 is a patented, high-performance sediment control system designed specifically for hard surfaces around construction sites or industrial facilities. The system is engineered to flex back and forth in light traffic environments and can be reshaped after deformation, featuring a long-lasting geotextile gasket to control underflow. Made from recycled HDPE, it provides effective particle and debris filtering, is reusable for multiple projects, and is 100% recyclable at the end of its life.

Features

  • Fast installation and lightweight for reduced labor costs
  • Durable, UV stable material that does not deteriorate
  • Living hinge system provides traffic resistance and deformation recovery
  • Zero waste design made from recycled HDPE
  • Requires 75% less storage space and shipping costs compared to traditional methods
Products specifications
Unit weight (lbsft) (max) 0.38
Functional life (minimum) 4+ years
SDSU soil loss test (10 yr storm consec) 81%
Dimension (length) 7 feet
Dimension (min height) 6.0 inches
Installed freeboard height (min) 6.0 inches
Reusable YES
Resists damage from vehicular traffic YES
Tensile Yield ASTM D-638 1800 - 2800 lb/in2
Ultimate Tensile Strength ASTM D-638 2000 - 2800 lb/in2
Service temperature -30 to 160 deg F
Interlocking continuous length YES
Percent Open Area (COE 22125-86) (min %) 20
Filter - AOS ASTM D 4751 250 microns
Jacket Color Black
Material Recycled HDPE
*
*
*
