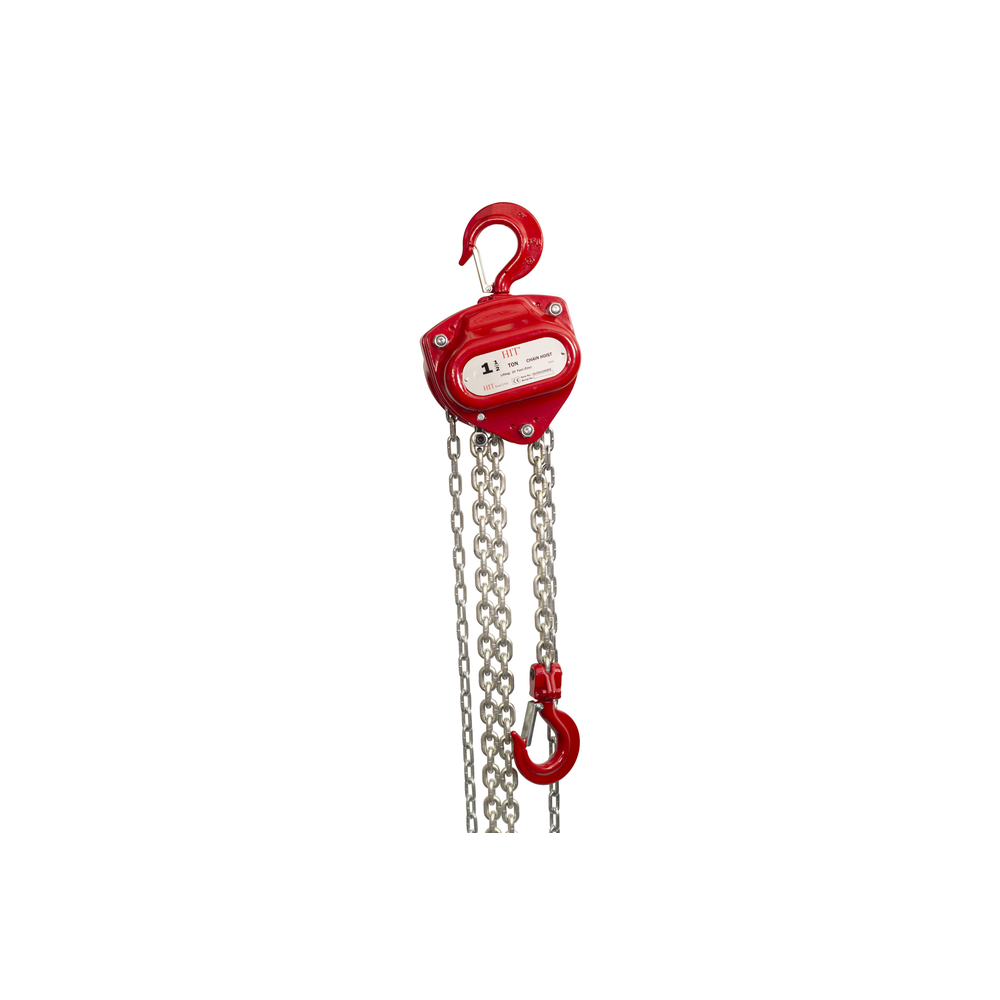

Heavy Duty H-100 Series Manual Chain Hoist, 1 1/2 Ton, 20' Lift

Mfr.: HIT Tools
Item #: I090516
Mfr. #: 16-CH112H20
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $588.82
i h h

Description

The H-100 Series Manual Chain Hoist features an all-steel construction that is compact and lightweight, designed for maximum strength and easy handling. It is ideal for construction, industrial lifting, rigging, and manufacturing operations. Each unit is load tested to 1.5 times its rated capacity and is power coat painted for rust protection. It meets strict OSHA and AMSE/ANSI HST-3M and B30.16 standards and is TUV Rheinland approved.

Features

  • High tensile alloy steel load chain is heat treated for safety, durability and low wear.
  • Chrome plated hand chain to protect against rust and corrosion.
  • Load chain stopper to avoid over lowering.
  • Hand chain wheel and brake are covered to prevent dirt, dust and moisture from hampering operation.
  • Load chain cover acts as a chain guide to stop dirt and dust from entering inside of the hoist.
  • Gears are made of chrome molybdenum steel.
  • Two safety hooks are forged and designed to bend slowly to warn of overload.
  • Meets OSHA and AMSE/ANSI HST-3M and B30.16 standards.
Products specifications
Stock No. 16-CH112H20-3
Capacity 1 1/2 Ton
Standard Lift 20 Ft
Net Weight 48.60 Lbs
Series H-100
Construction All steel
Chain Material High tensile alloy steel
Standards Compliance OSHA, AMSE/ANSI HST-3M, B30.16
Approval TUV Rheinland approved
*
*
*
