  • Heavy Duty Hydraulic Bottle Jack - 22 Ton

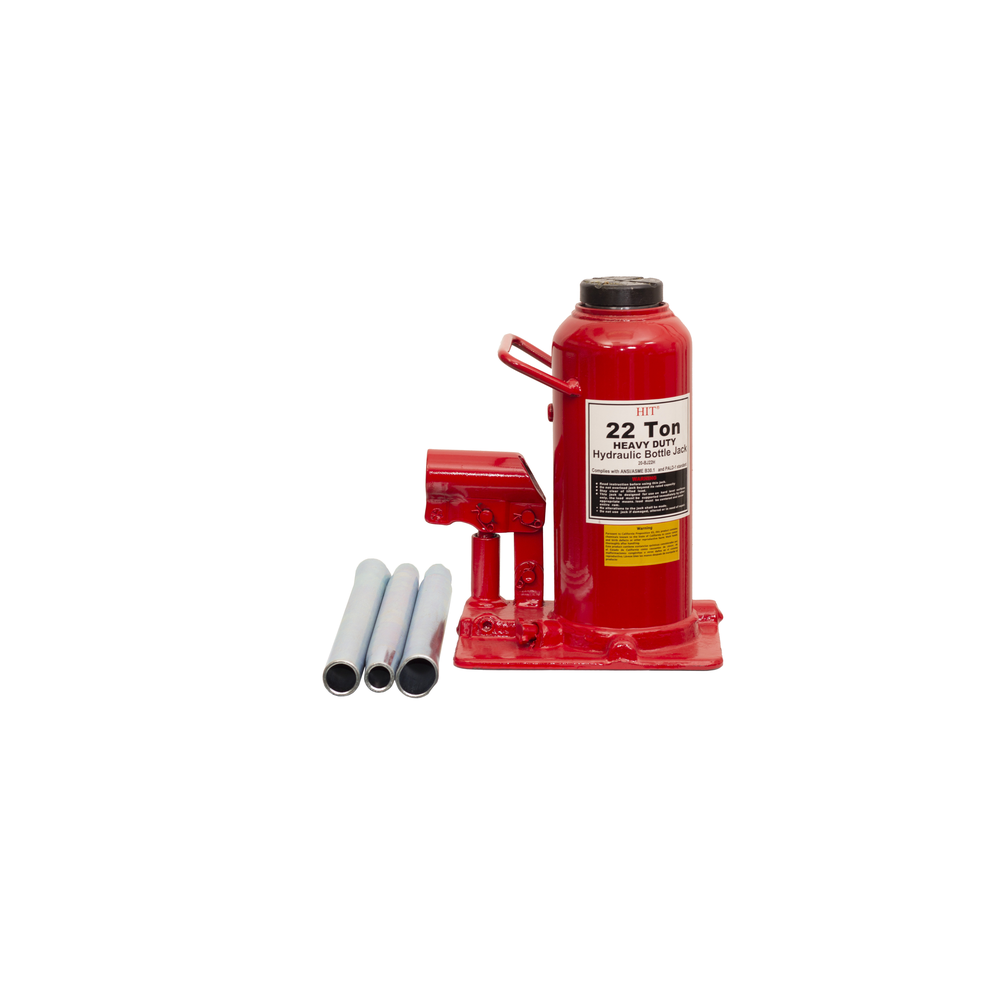

Heavy Duty Hydraulic Bottle Jack - 22 Ton

Mfr.: HIT Tools
Item #: I090547
Mfr. #: 20-BJ22H
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $285.56
i h h

Description

This 22 Ton Heavy Duty Hydraulic Bottle Jack is built with a drop forged base for maximum strength and product durability. It features electrically welded base and cylinders to ensure a leak-proof design and long-lasting service life. The unit is equipped with a chromed pump piston and ram for increased resistance to rust and corrosion during heavy use. For added convenience, it includes a carrying handle for easy transportation and meets ANSI/ASME PALD-1 and B30.1 safety standards.

Features

  • Drop forged base for maximum strength and product life
  • Electrically welded base and cylinders
  • Chromed pump piston and ram for increased rust resistance
  • Includes carrying handle for easy transportation
  • Complies with ANSI/ASME PALD-1 and B30.1 standards
Products specifications
Capacity 22 Tons
Base Size (Inches) 7-1/8 inch x 5-1/2 inch
Shipping Weight (lbs.) 26 lbs.
Min. Height (Inches) 10-5/8 inch
Max Height (inches) 16-7/8 inch
Piston Height (Inches) 6-1/4 inch
Head Screw (Height in Inches) -
*
*
*
