JMB-25H25 Combination Rebar Bender with 1 in Rebar Cutter

Mfr.: BN Products
Item #: I077079
Mfr. #: JMB-25H25
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $8,573.76
i h h

Description

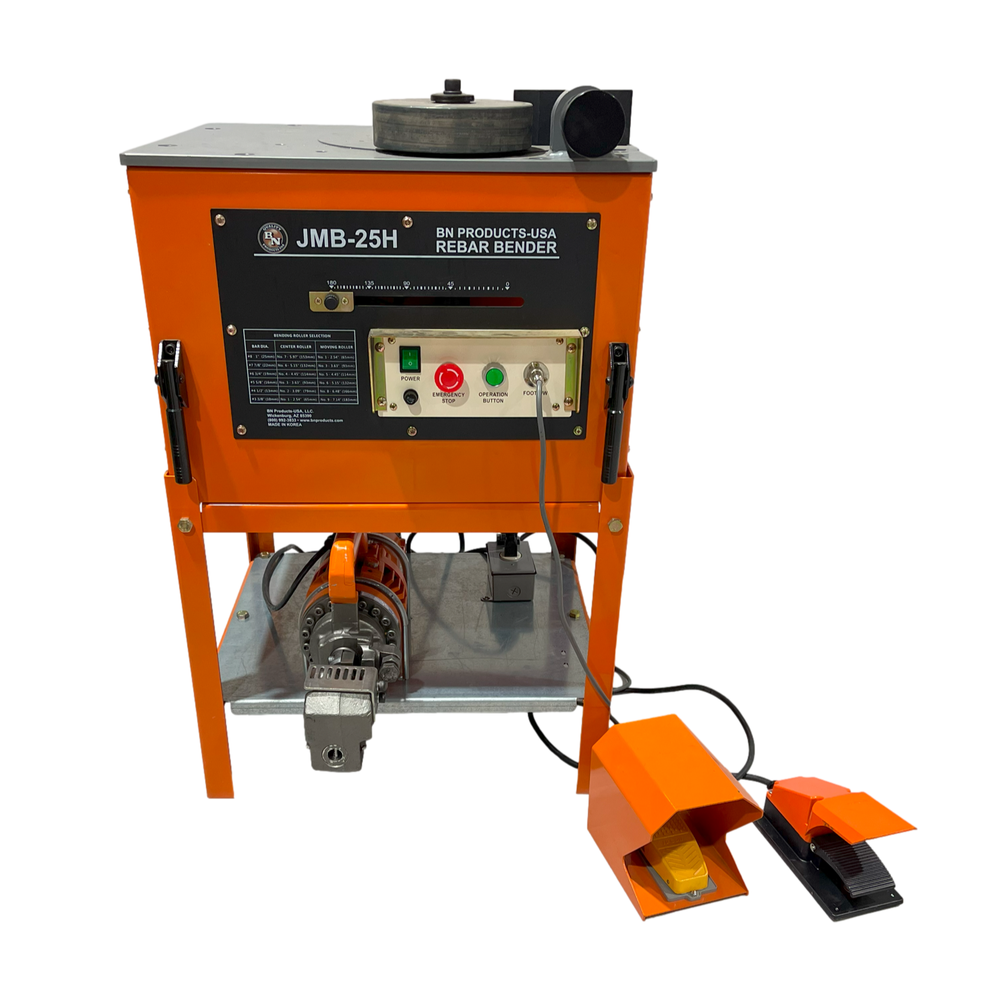

The JMB-25H25 is a professional-grade combination kit that integrates the powerful JMB-25H electric-mechanical bender and the DC-25X hydraulic rebar cutter into a single high-efficiency workstation. This heavy-duty system is designed to handle rebar up to #8 (1 inch) Grade 60, making it an essential tool for high-volume fabrication at job sites or in the shop. The modular design allows the cutter to be removed for portable use or secured in a stationary position for hands-free operation via the included foot pedals. Featuring a preset angle lock and an ideal working height, this unit significantly reduces labor time and improves precision for complex masonry and concrete projects.
  • Dual-Function Capability: Combines cutting and bending in one workstation.
  • Removable Cutter: DC-25X can be detached for portable jobsite applications.

Features

  • Preset angle lock allows for rapid, repeatable bending from 0 to 180 degrees.
  • Heavy-duty stationary stand provides an ergonomic working height for production environments.
  • Equipped with emergency stop switches and four lifting handles for enhanced safety and mobility.
  • Simultaneous bending capacity allows for multiple smaller bars to be processed at once.

Includes

  • JMB-25H Table-Top Electric Rebar Bender
  • DC-25X Portable Hydraulic Rebar Cutter
  • JMB-25H Combination Stand
  • 9-Piece Bending Roller Set in Steel Carrying Case
  • (2) Foot Pedal Control Switches
  • Standard Tool Kit and Protective Cover
Products specifications
Model Number JMB-25H25
Max Rebar Size #8 (1 inch) Grade 60
Bending Angle Range 0 - 180 Degrees
Bending Speed 7 Seconds (180 Degrees)
Cutting Speed 5 Seconds
Bender Power 115V 50/60Hz, 15 Amps
Cutter Power 115V 50/60Hz, 12 Amps
Cutting Pressure 30 Tons
Total Tool Weight 259 lbs
Bender Dimensions 21 inch x 22.6 inch x 17.2 inch
*
*
*
