  • Klein Chicago Grip Coated Guy Wire with Chain

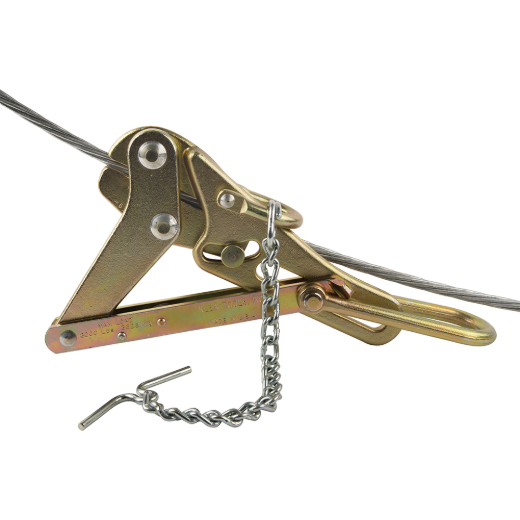

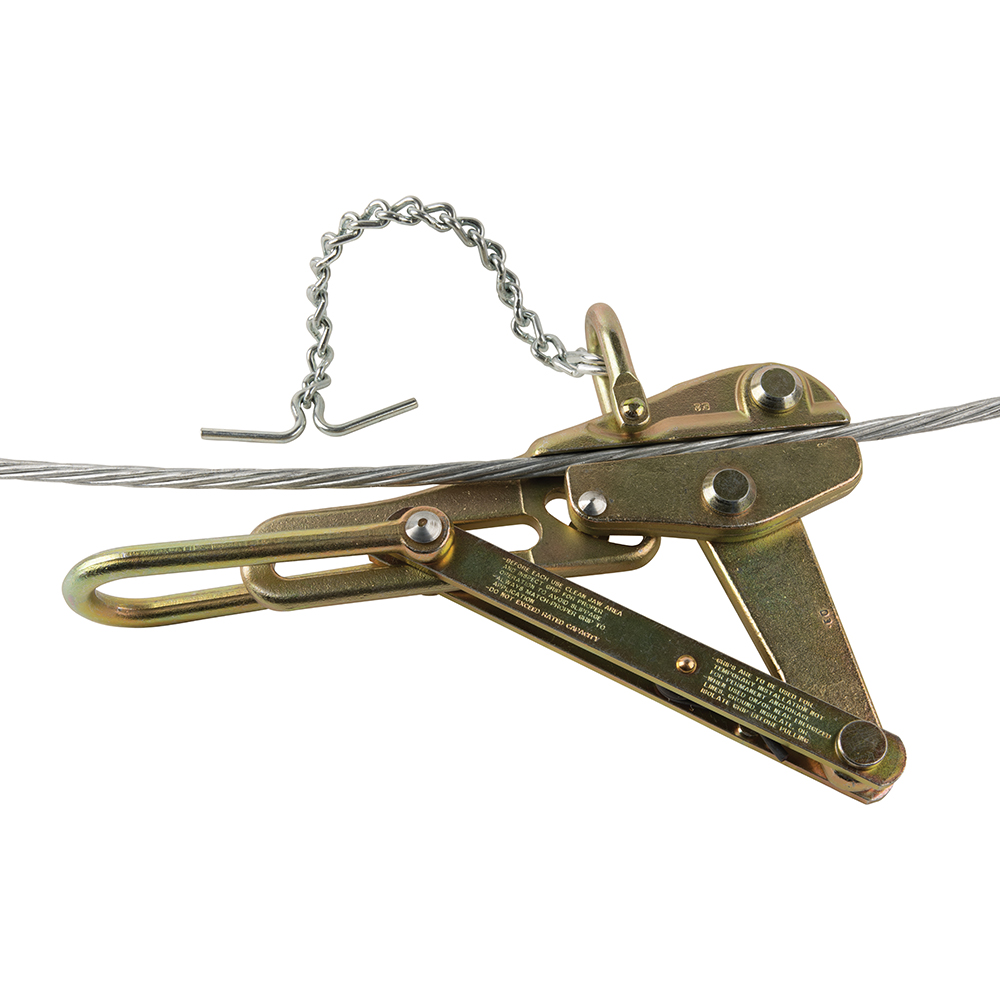

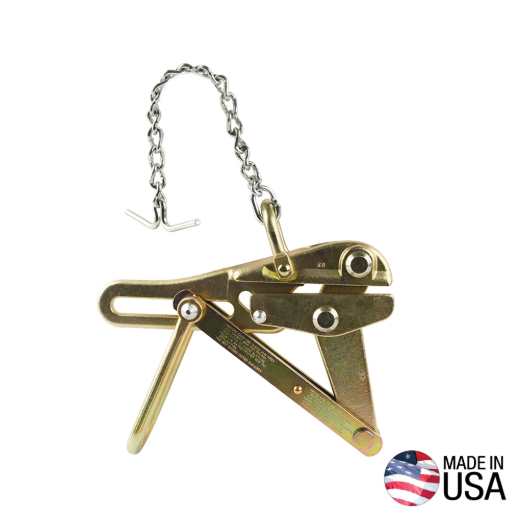

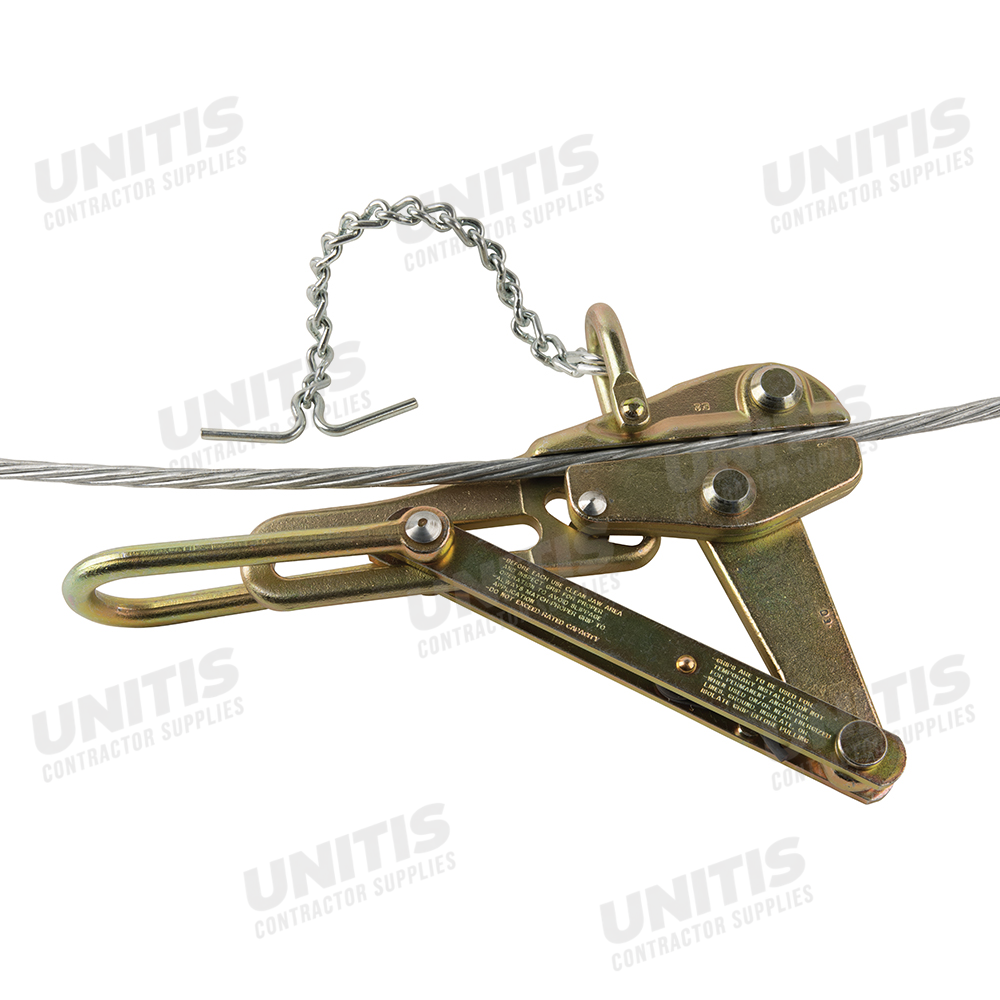

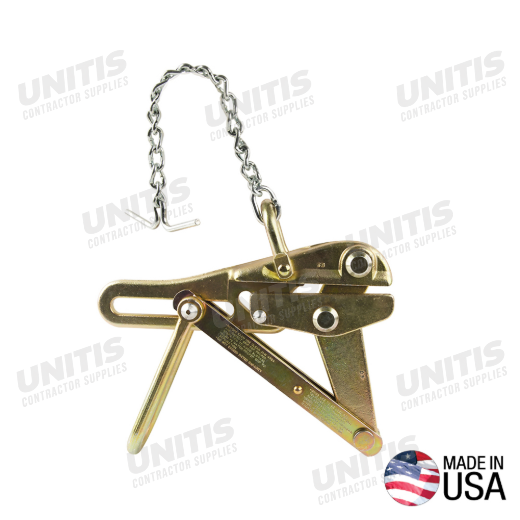

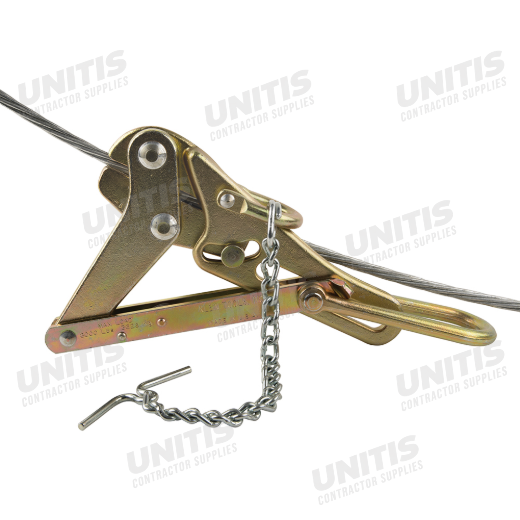

Klein Chicago Grip Coated Guy Wire with Chain

Mfr.: Klein Tools
Item #: I094842
Mfr. #: 16845CAT
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $856.33
i h h

Description

This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability.
  • Aggressive sawtooth jaw profile resists galvanization build-up
  • Equipped with chain, toggle and shackle to prevent falling off cable
  • 5-inch jaw length for extra gripping area on stranded cable
  • Locking handle keeps jaw open during placement with hot stick
  • Maximum safe load of 8000 pounds

Features

  • Designed for coated guy strand and EHS cable applications
  • Made of drop-forged US steel with heat treatment
  • Spring closes grip on cable to maintain initial position
  • Minimizes cable damage with increased surface contact
  • For temporary installation, not permanent anchorage

Includes

  • Chain
  • Toggle
  • Shackle

Specifications

TypeChicago GripApplicationWire Pulling
Overall Length13.3 inchesOverall Height2.5 inches
Overall Width7.6 inchesMaterialSteel
Cable TypeAircraft, EHS, MessengerCable Diameter0.218 to 0.55
SpringYesLocking HandleYes
Jaw TypeRoundTeeth TypeAggressive
Jaw Length5 inchesMaximum Safe Load8000 pounds
Weight6.9 poundsUPC092644470707
*
*
*
