Klein Mobile Thermal Imager for Android/iOS

Mfr.: Klein Tools
Item #: I094956
Mfr. #: TI223
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $353.99
i h h

Description

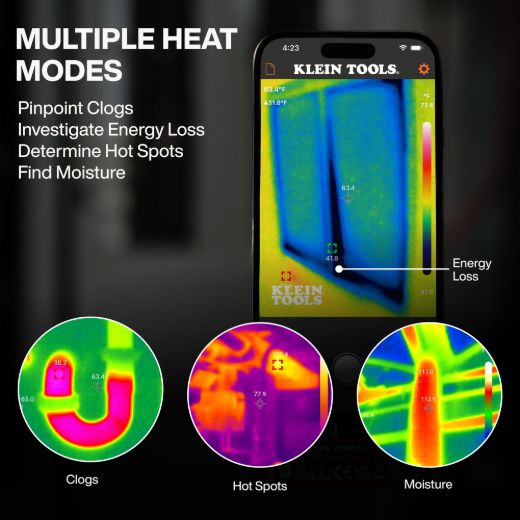

Klein Tools Mobile Thermal Imager transforms smartphones into professional thermal imaging cameras with 19,200-pixel resolution. This compact thermal imager captures hot and cold spots from -4 to 752F in three color palettes.
  • 19,200 pixel thermal imaging
  • USB-C compatibility with iOS/Android
  • Fits phone cases up to 1/5-inch thick
  • Time-lapse video capability
  • Touch screen temperature modes

Features

  • High resolution 19,200 pixel thermal imaging
  • USB-C compatibility works with iOS and Android devices

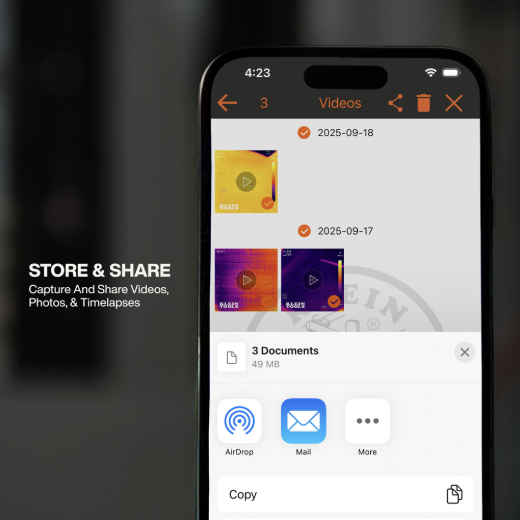

  • Convenient capture and storage of thermal images and video

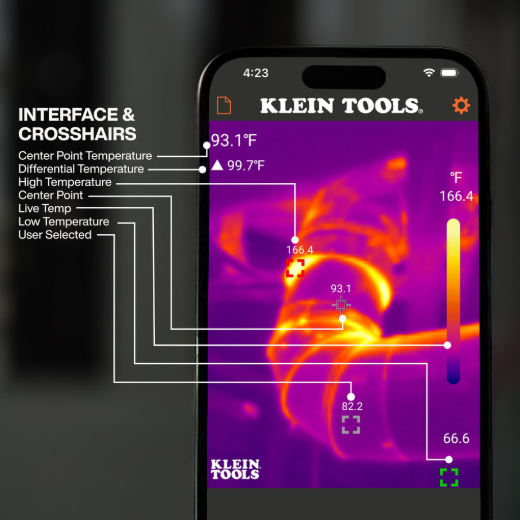

  • Multiple temperature modes with touch screen readout

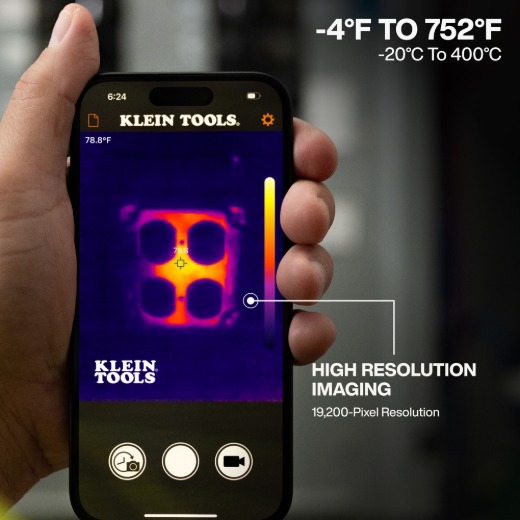

  • Wide temperature range measures -4 to 752F

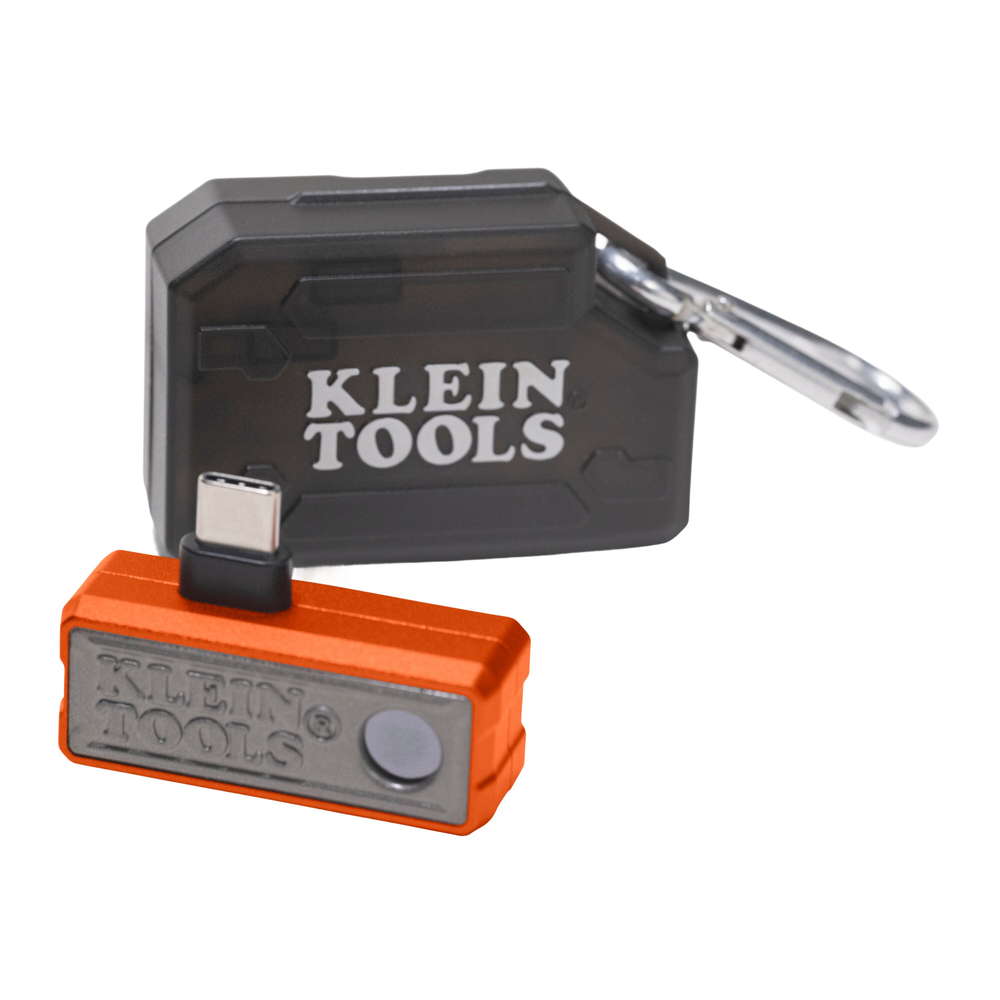

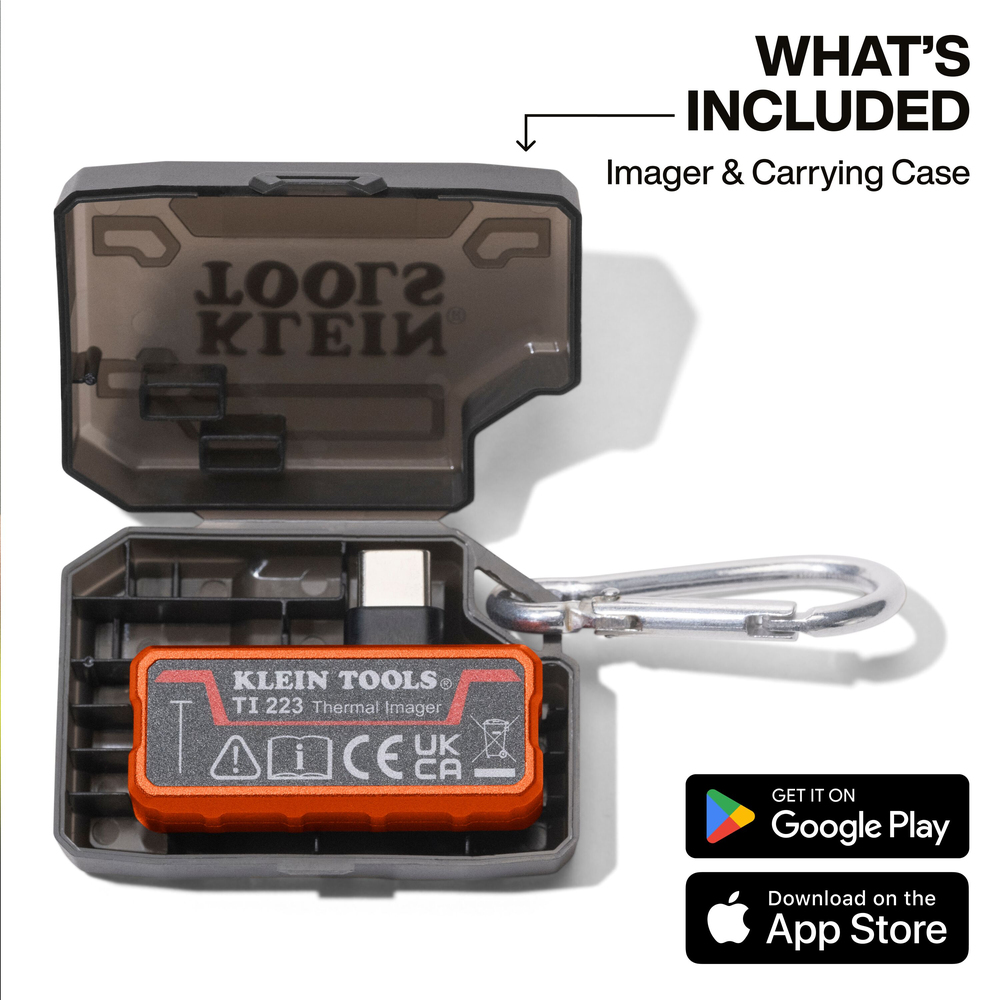

Includes

  • Thermal Imager
  • Hard Storage Case with Carabiner
  • Instructions

Specifications

TypeThermal ImagerApplicationView Hot and Cold Spots
Sensor TypeVOx MicrobolometerSensor Resolution19,200 Pixels
Thermal Sensitivity<50 mK at 25CSpectral Range8 to 14 m
Temperature Range-4 deg to 752 degFAccuracy+/-2 degC or 2%
Field of View56 deg Horizontal, 71 deg DiagonalEmissivity0.01 to 0.99, Adjustable
Color PalettesIronbow, Rainbow, GrayscaleMaximum Frames per Second<9 Hz

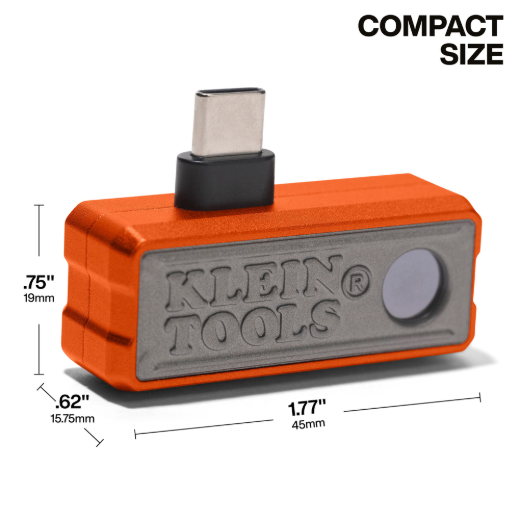

Overall Length1.77 InchOverall Width0.62 Inch
Overall Height1.23 InchMaterialAluminum Housing
Weight0.9 ozUPC092644694813
*
*
*
