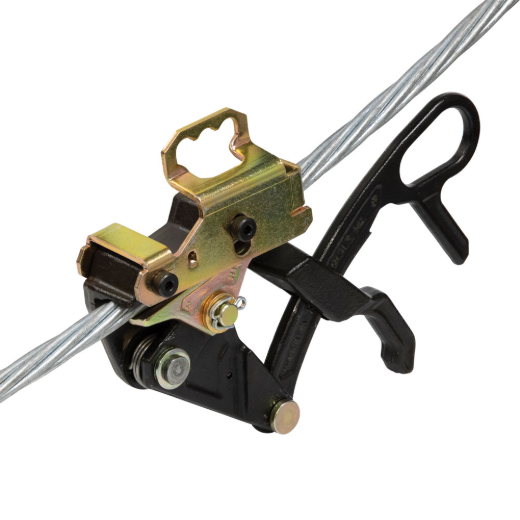

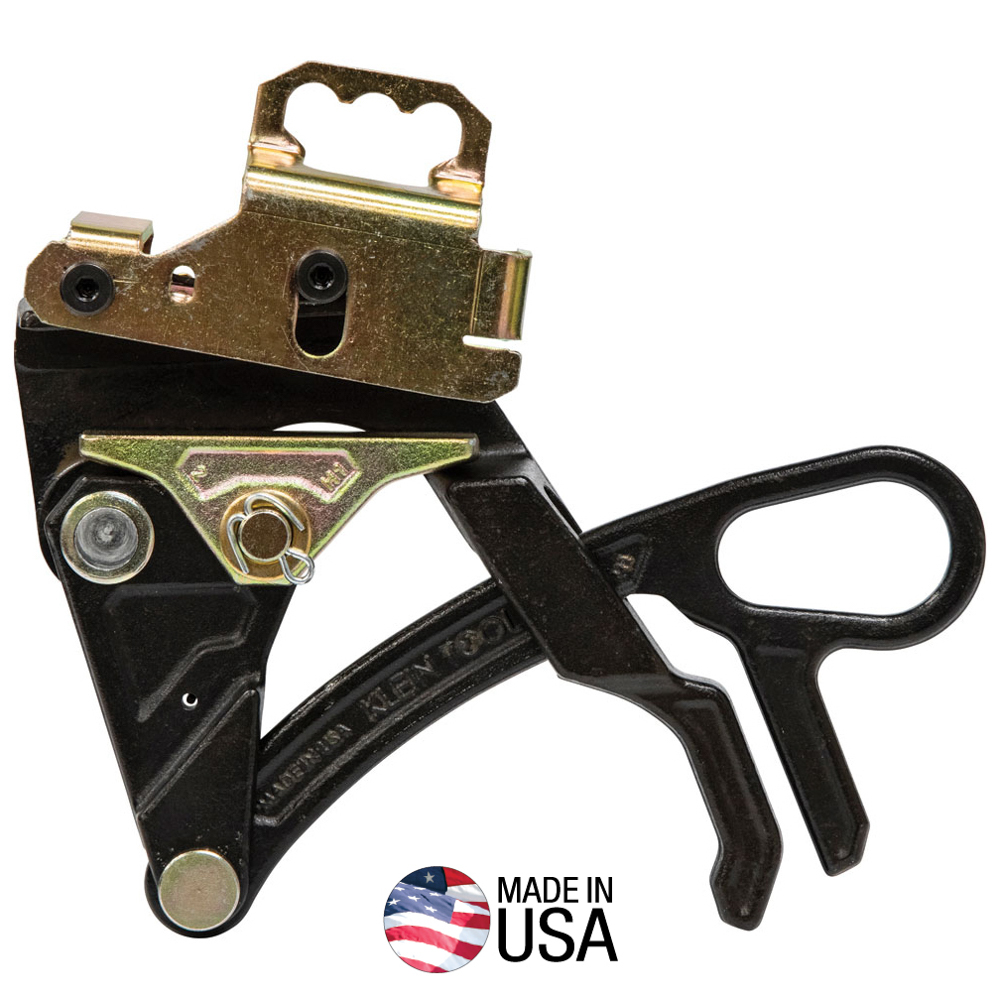

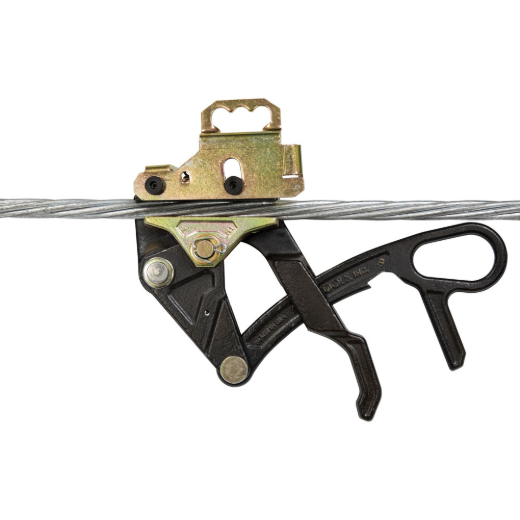

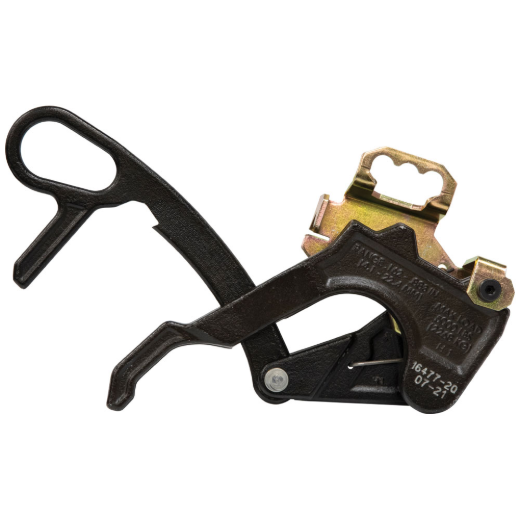

Klein Tools 16477-20 Wide Range Distribution Grip with Hot Latch

Mfr.: Klein Tools
Item #: I094954
Mfr. #: 16477-20
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $562.41
i h h

Description

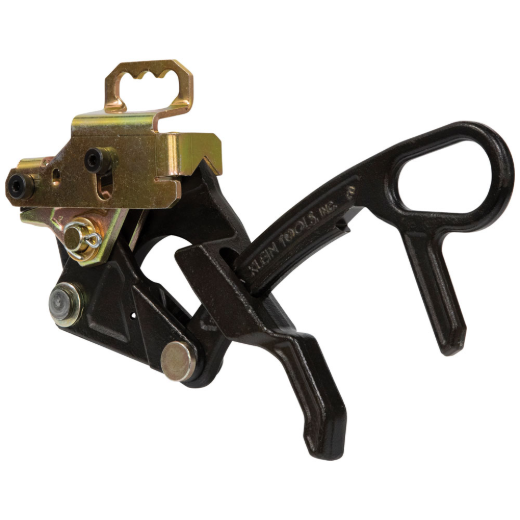

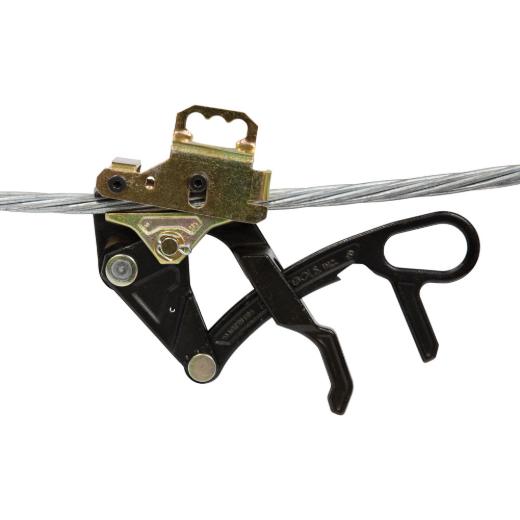

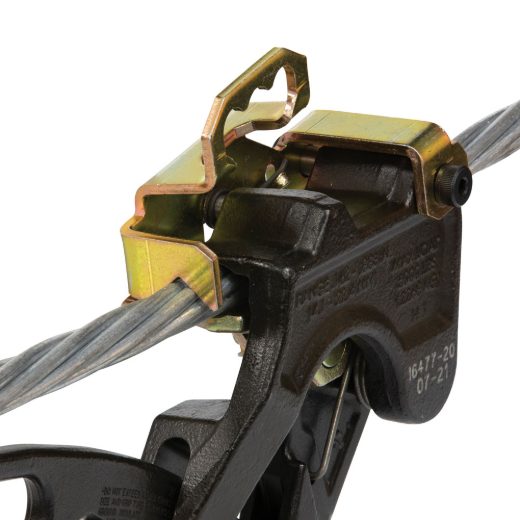

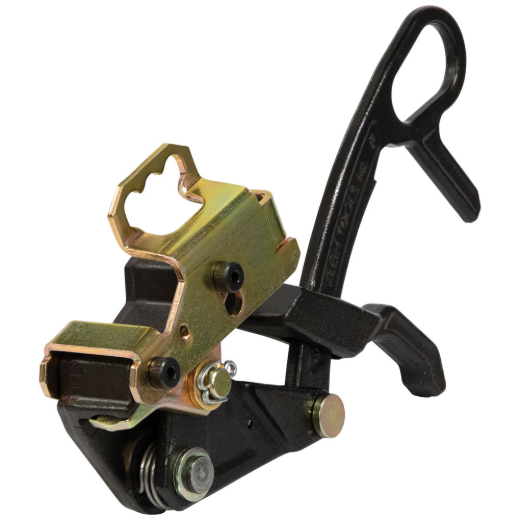

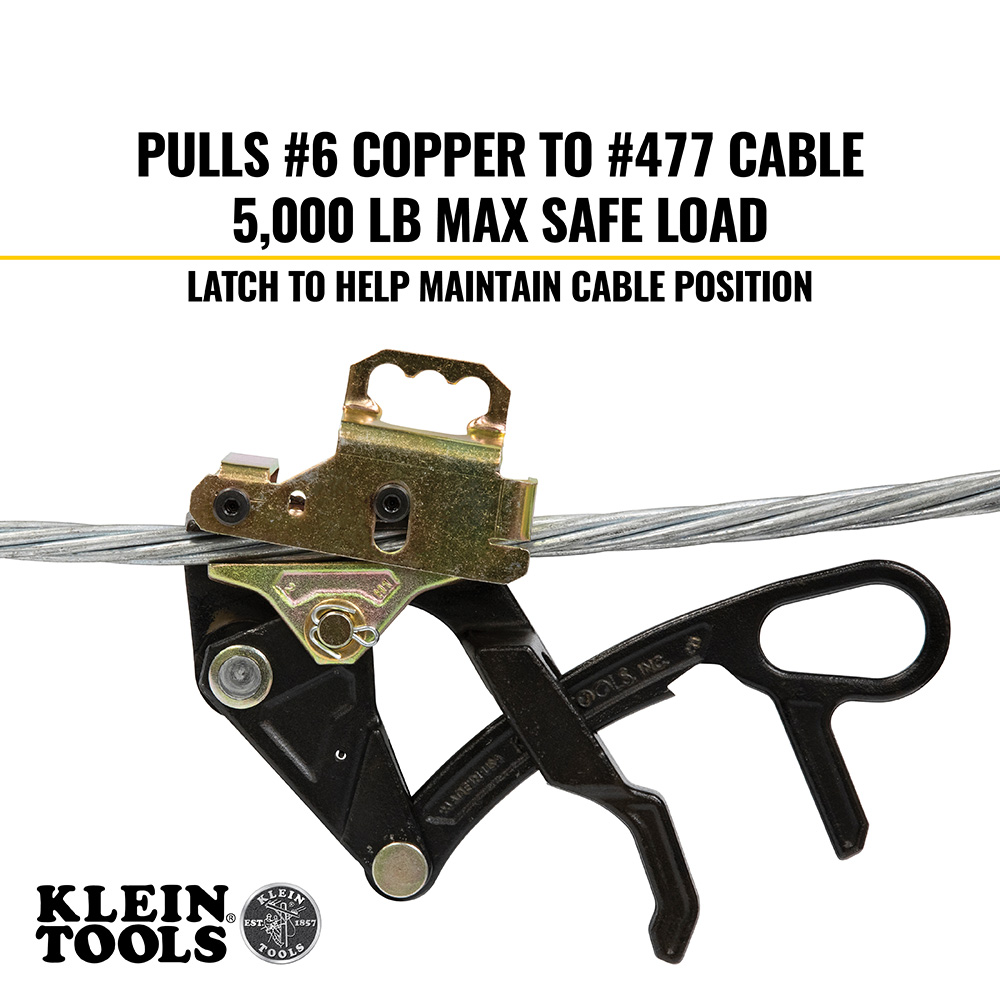

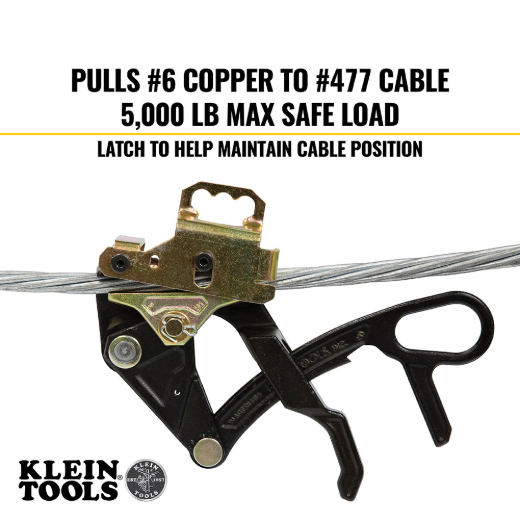

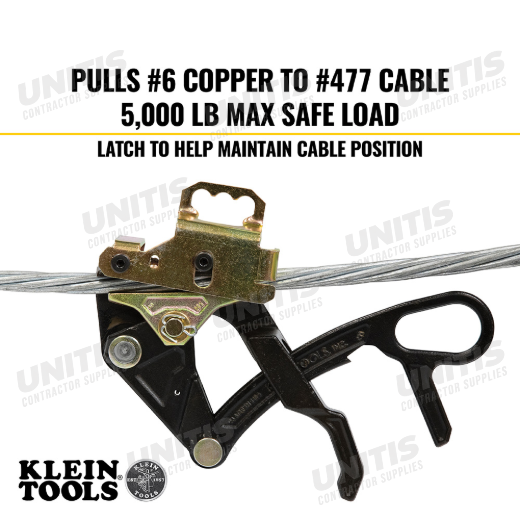

This parallel jaw grip is designed for wire pulling with a hot latch feature and one-handed operation. It handles cable sizes from No. 6 Copper to No. 477 ACSR with a maximum safe load of 5000 pounds.
  • One-handed design for easier actuation
  • 20% lighter than Cat. No. KT4500 grip
  • Hot latch maintains cable position
  • Made in the USA
  • Max safe load 5000 pounds

Features

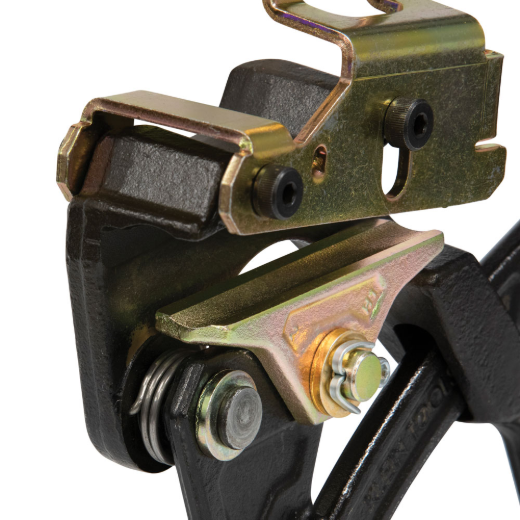

  • Spring closes grip to hold initial position

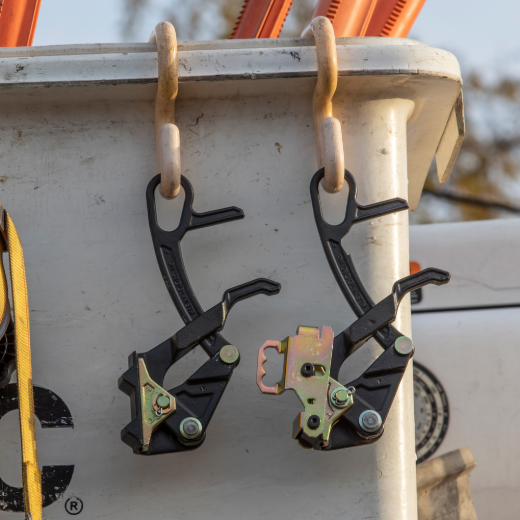

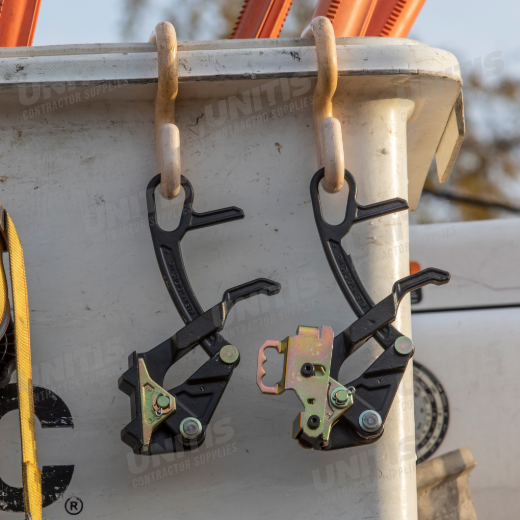

  • Large handle opening accommodates various hooks
  • Suitable for temporary installation only
  • Requires proper matching to cable size and type
  • Must be cleaned and inspected before each use

Specifications

TypeParallel Jaw GripApplicationWire Pulling
Special FeaturesHot Latch, One-Handed GripOverall Length10.25 inch
Overall Height8 inchOverall Width1.75 inch
MaterialSteelCable TypeCopper, AAC, ACSR
Cable Diameter0.162 to 0.883 inchHot LatchYes
Swing LatchNoSpringYes
Locking HandleYesJaw TypeRound
Teeth TypeFineJaw Length3.31 inch
Maximum Safe Load5000 lbWeight3.2 lb
*
*
*
