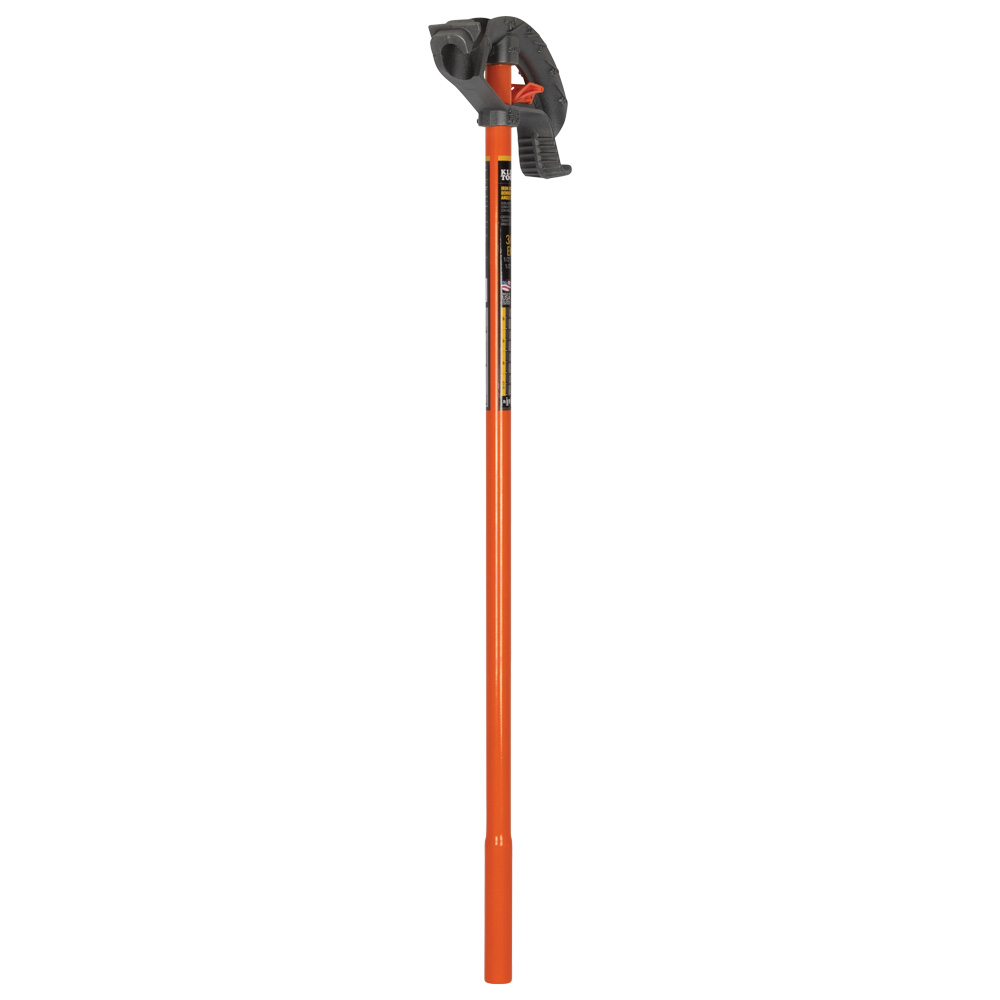

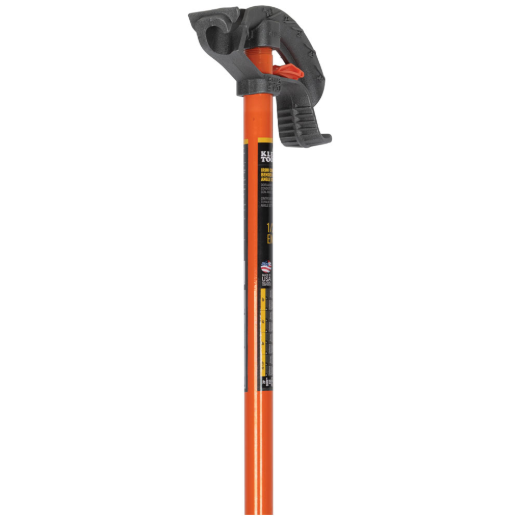

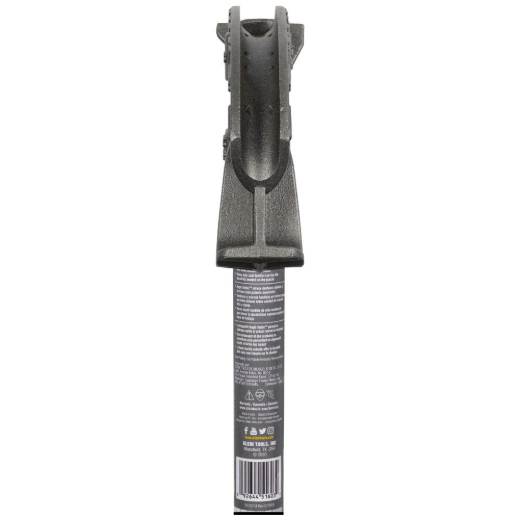

Klein Tools 51604 Iron Conduit Bender Full Assembly, 3/4-Inch EMT

Mfr.: Klein Tools
Item #: I095365
Mfr. #: 51604
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $94.39
i h h

Description

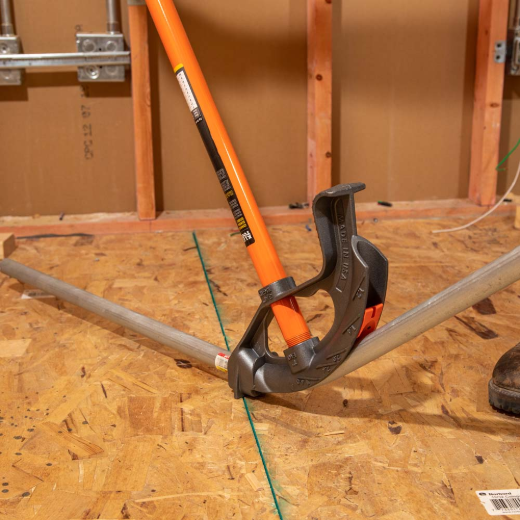

This 3/4-inch assembled iron conduit bender features Klein's Angle Setter technology for accurate, repeated bends. It's designed for bending 3/4-inch EMT, 1/2-inch Rigid, and 1/2-inch IMC conduit.

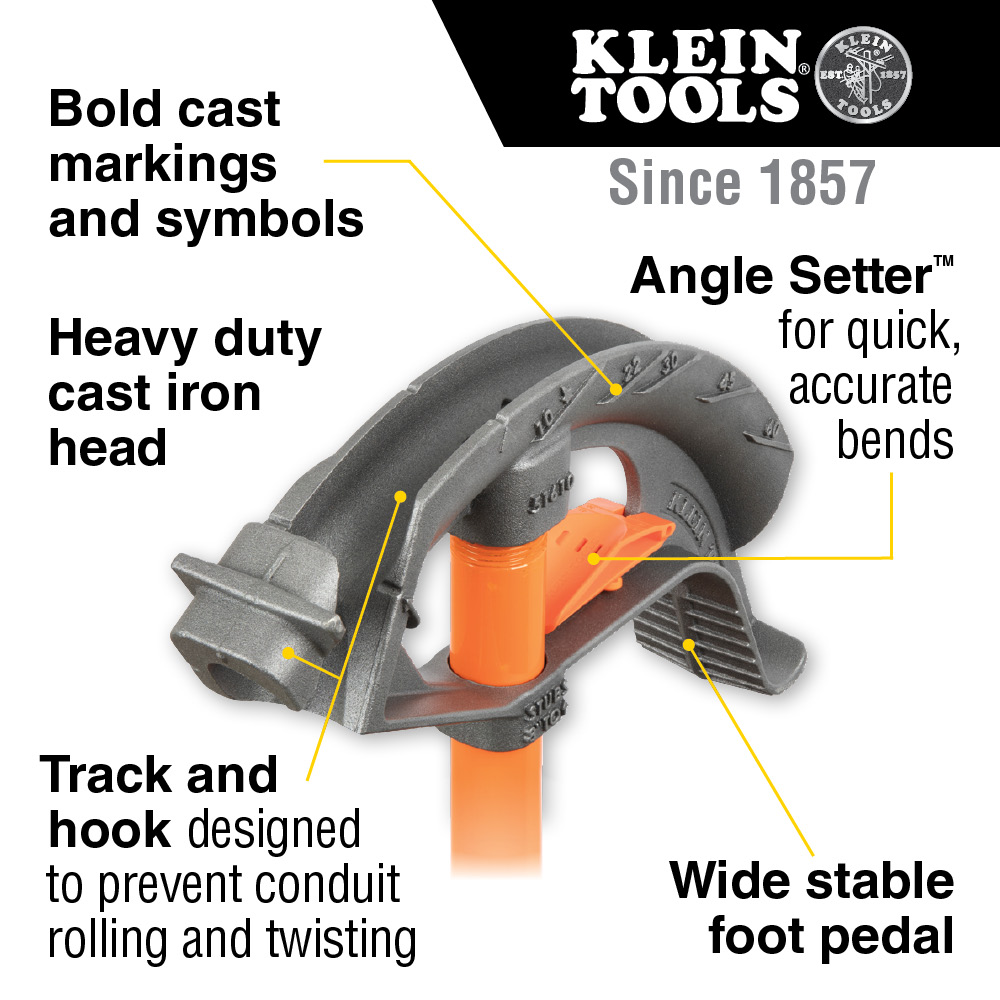

  • Patent pending Angle Setter technology
  • Heavy duty cast ductile iron construction
  • Wide foot pedal for stability and leverage

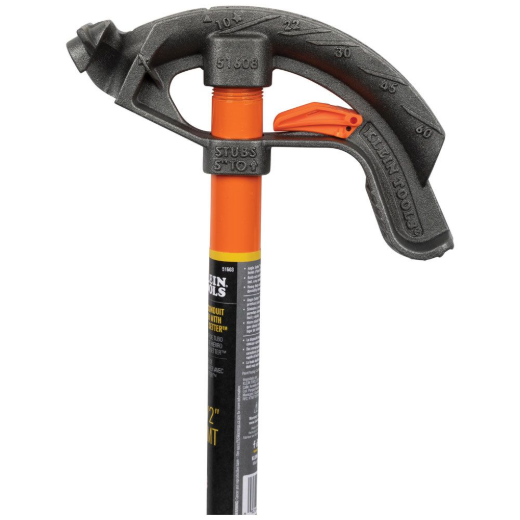

  • Bold cast markings for easy alignment
  • Includes markings for multiple degree bends

Features

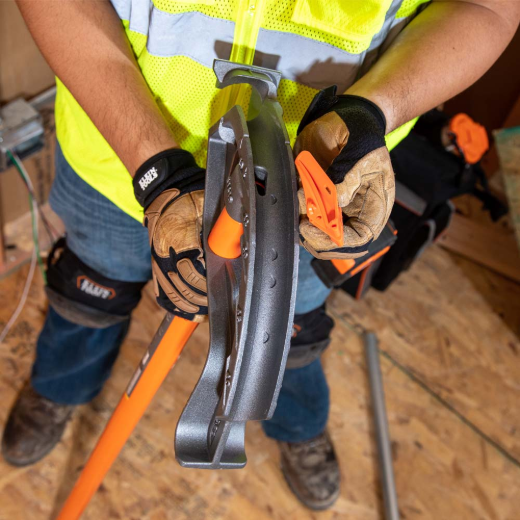

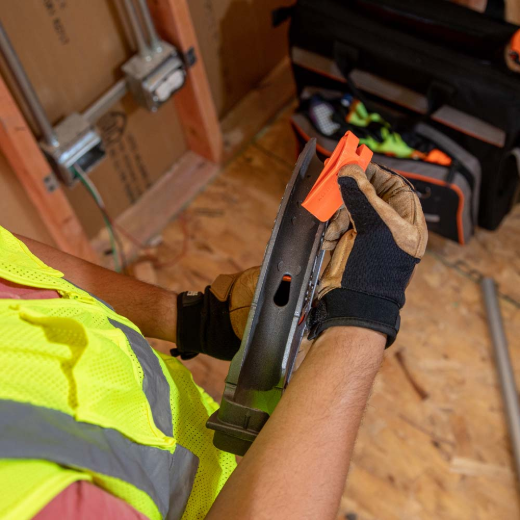

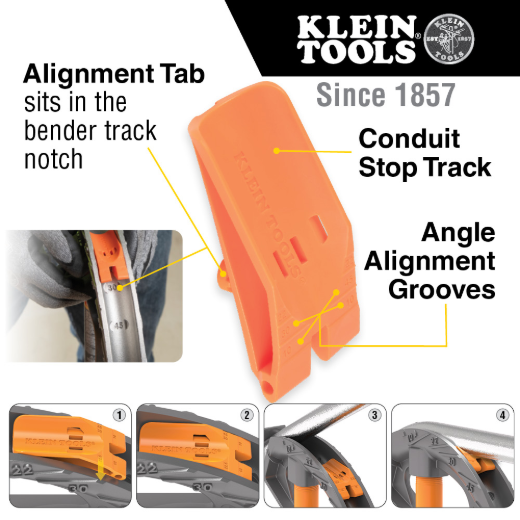

  • Angle Setter creates hard stops for 10, 22.5, 30, and 45 bends

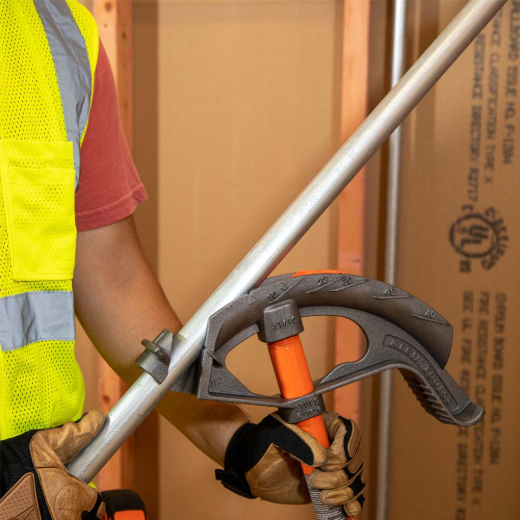

  • Interior hook surface prevents conduit rolling during bends

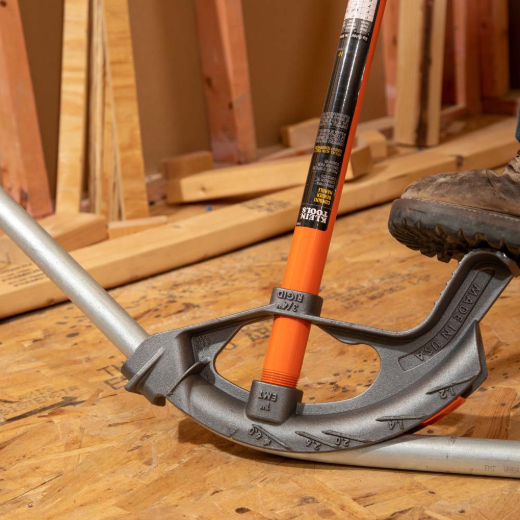

  • Wide foot pedal with angled grooves for extra traction
  • Can make all bend types including saddle and back-to-back

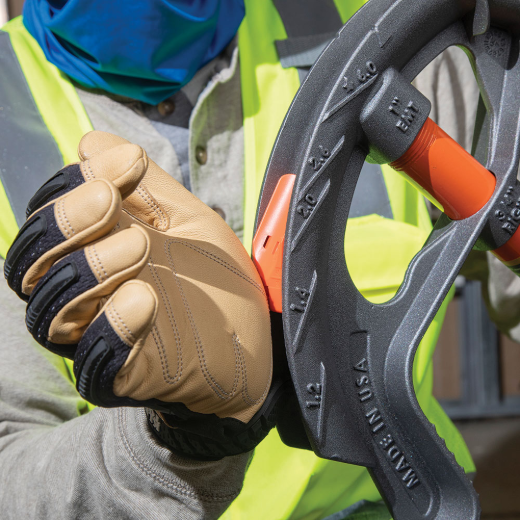

  • Includes degree scales and multiplier scales for time savings

Includes

  • 51609 Bender Head
  • 51427 Handle
  • 51612 3/4-Inch Angle Setter

Specifications

TypeIron Conduit BenderApplicationBending Conduit
Special FeaturesAngle Setter TechnologyOverall Length44.1 inches
Overall Width9.8 inchesMaterialIron
Handle Length38 inchesCenterline Bend Radius5.5 inches
Stub-Up Height6 inchesEMT Conduit Size3/4 inch
RigidIMC Size1/2 inchConduit TypeEMT
Markings10 deg, 22 deg, 30 deg, 45 deg, 60 degWeight6.6 pounds
*
*
*
