Klein Tools CL320 HVAC Digital Clamp Meter

Mfr.: Klein Tools
Item #: I095343
Mfr. #: CL320
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $117.98
i h h

Description

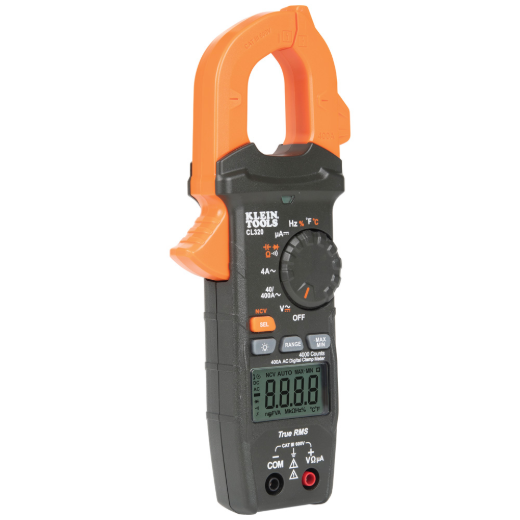

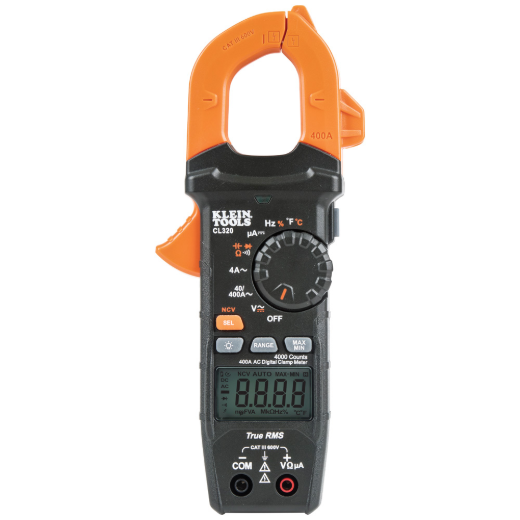

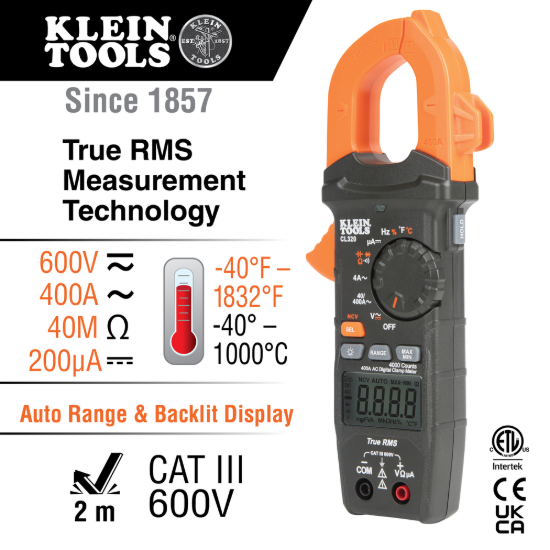

The CL320 is an automatically ranging true root mean square digital clamp meter designed for HVAC applications. It measures AC current, NCVT, AC/DC voltage, resistance, frequency, capacitance, and temperature with comprehensive safety features.
  • AC Auto-Ranging 400 Amp
  • True RMS measurement technology
  • Integrated non-contact voltage tester
  • CAT III 600V safety rating
  • 6.6-foot drop protection

Features

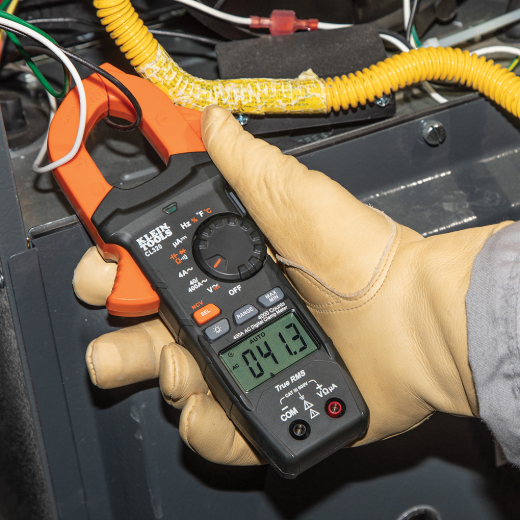

  • Measures AC current via clamp and multiple electrical properties via test-leads
  • Backlit LCD display for low-light visibility with auto-power off function
  • Includes carrying case, test leads, thermocouple, batteries, and instructions

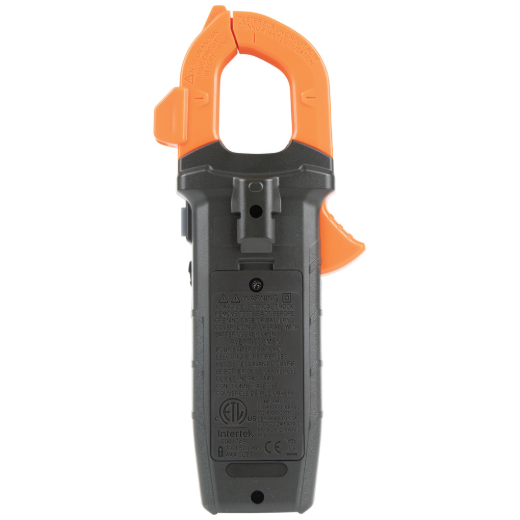

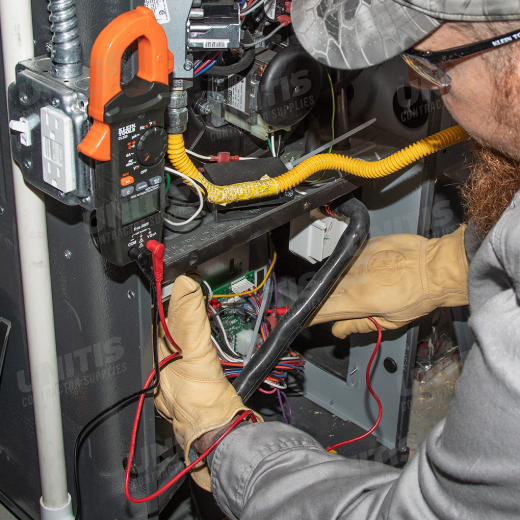

  • Optional magnetic hanger for hands-free operation with test lead holder
  • Built to withstand 6.6-foot drop with double insulation safety rating

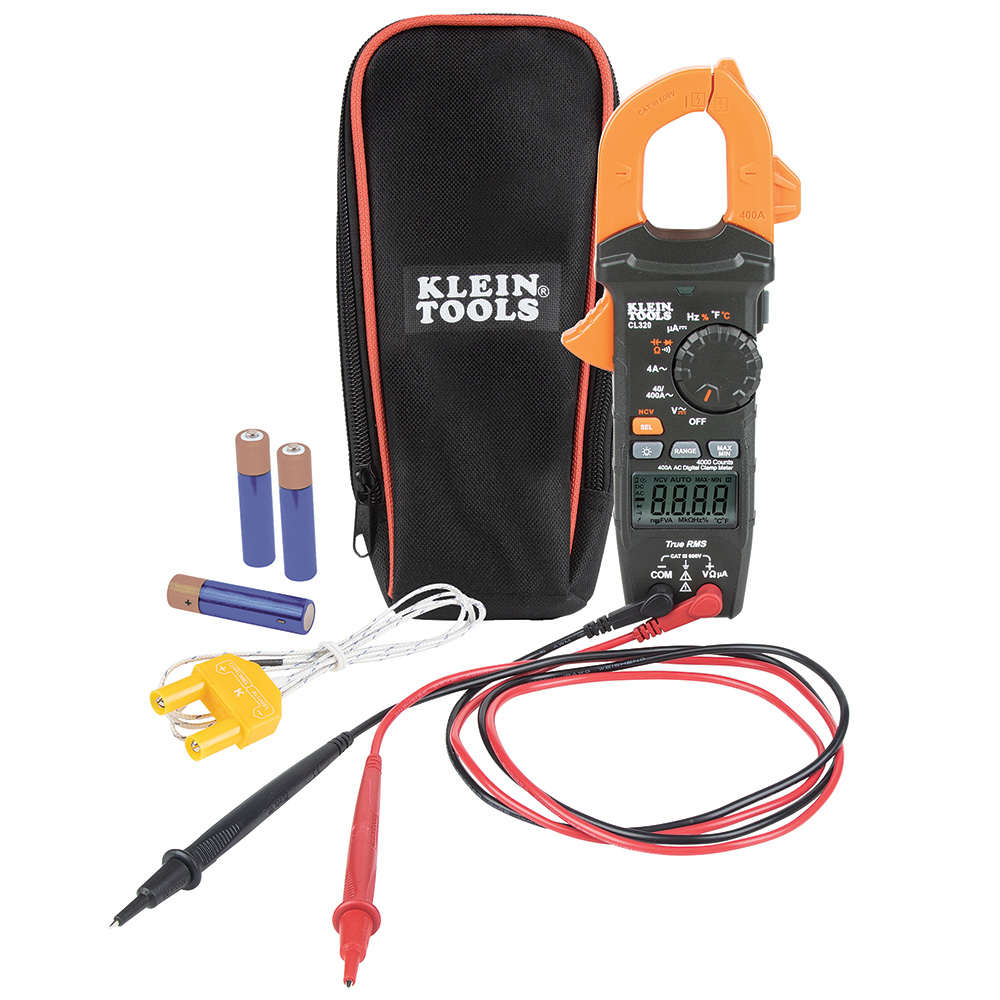

Includes

  • Digital Clamp Meter
  • Carrying Case

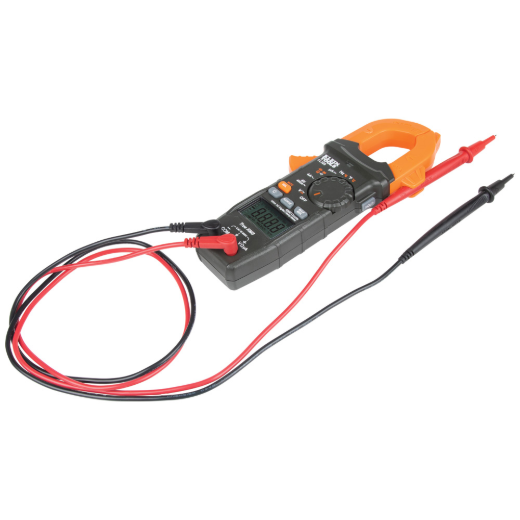

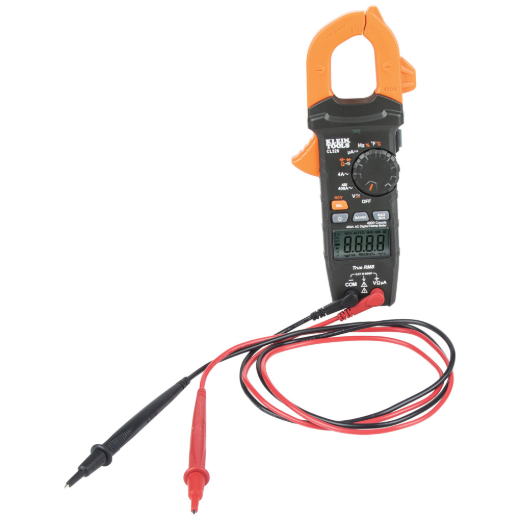

  • Test Leads
  • Thermocouple
  • Batteries
  • Instructions

Specifications

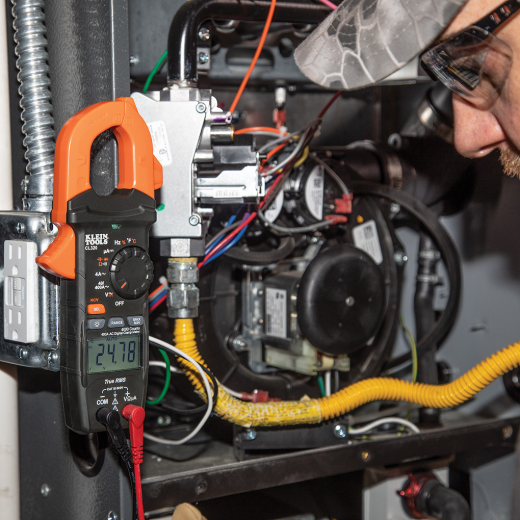

TypeHVAC TRMS Clamp MeterApplicationHVAC electrical measurements
Jaw Size1.6 inch (4.1 cm)Display4000 Count Backlit LCD
Auto RangingYesTRMSYes
Voltage Rating600V AC/DCFrequency Range10 Hz - 60 kHz
Current Range400 A ACCapacitance Range4000 uF
Resistance Range40 MDC Micro-Amp200 A
Temperature Range-40 degF to 1832 degFSafety RatingCAT III 600V
Drop Protection6.6 feet (2 m)Batteries3 x AAA
Overall Length8.45 inch (21.5 cm)Overall Height1.5 inch (3.8 cm)
Overall Width3.5 inch (8.9 cm)MaterialABS/Electronics
Auto-Power OffYesDC Polarity IndicatorYes
*
*
*
