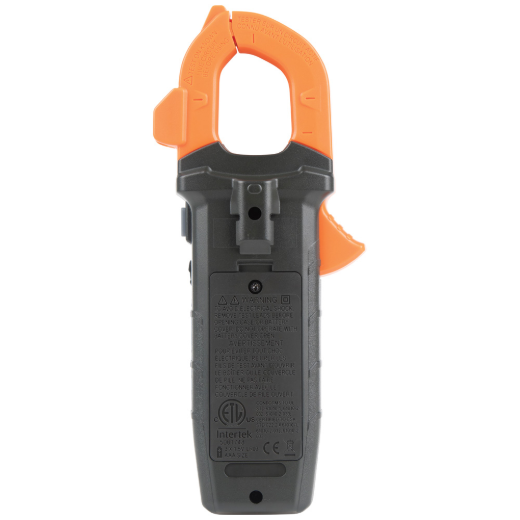

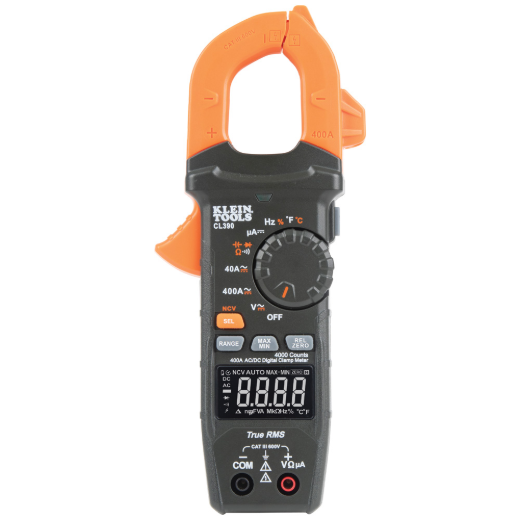

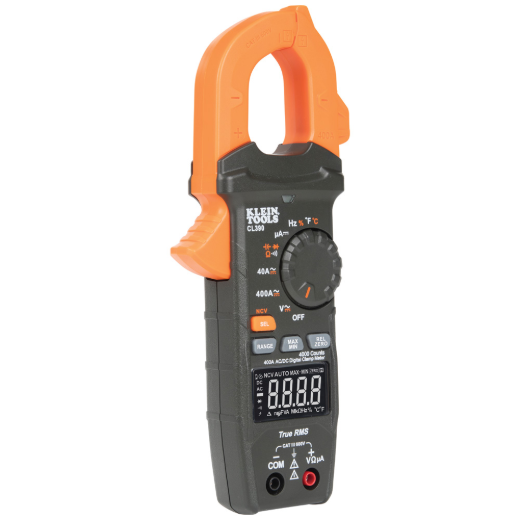

Klein Tools CL390 AC/DC Digital Clamp Meter

Mfr.: Klein Tools
Item #: I095355
Mfr. #: CL390
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $149.44
i h h

Description

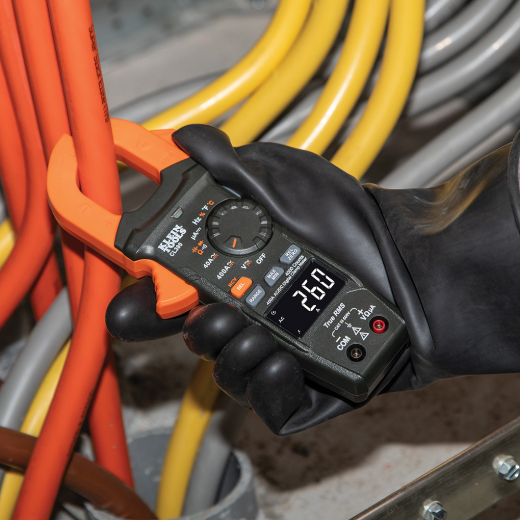

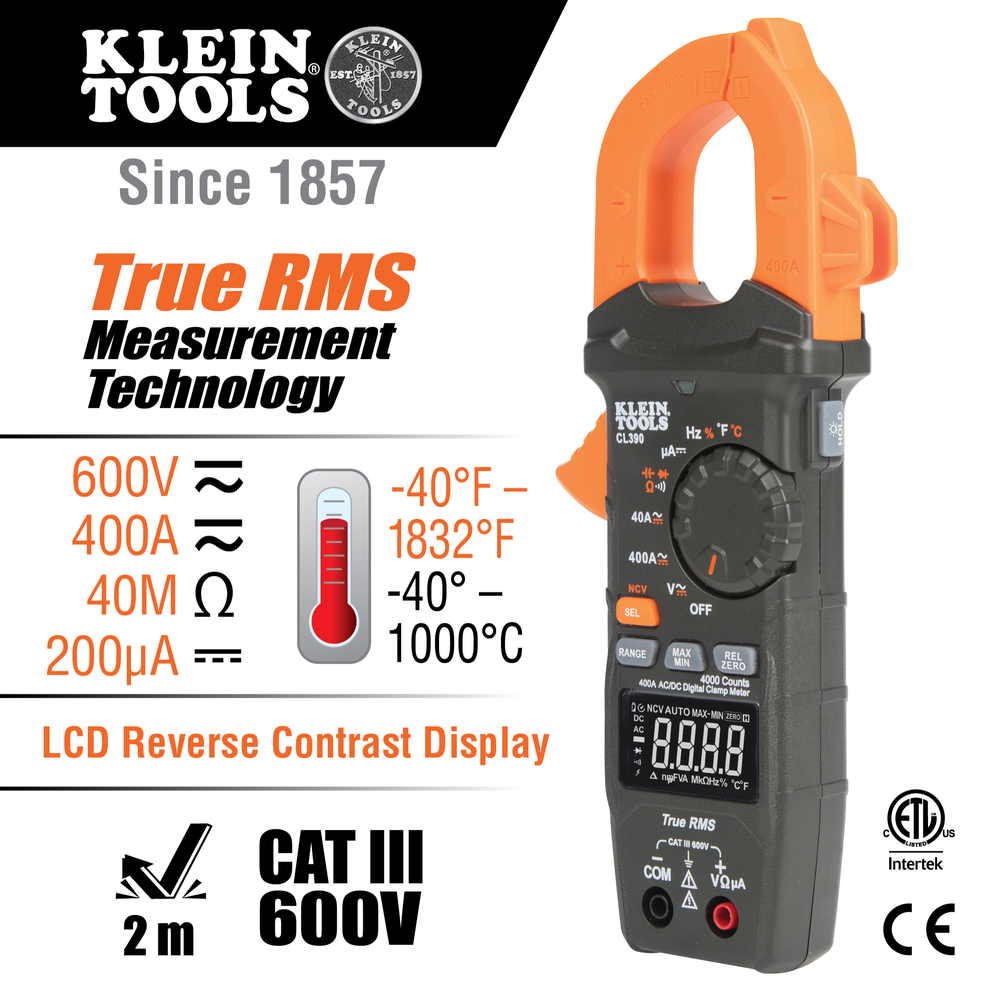

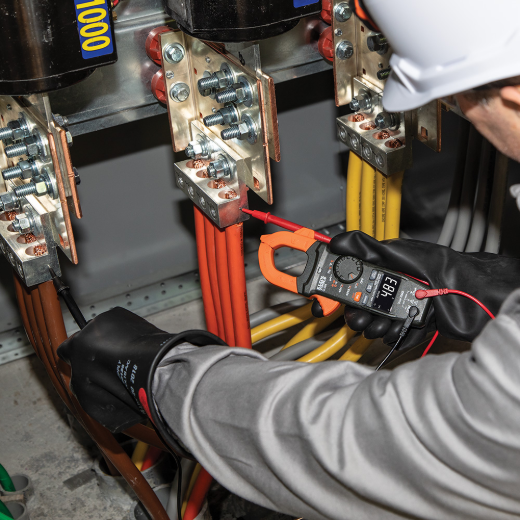

The Klein Tools CL390 is an automatically ranging true root mean squared digital clamp meter that measures AC/DC current, voltage, resistance, frequency, capacitance, temperature, and more. It features a high-visibility reverse contrast LCD display and meets CAT III 600V safety standards.
  • TRMS auto-ranging 400A clamp meter
  • Non-contact voltage tester in clamp jaw
  • High-visibility reverse contrast LCD
  • 6.6-foot drop protection
  • CAT III 600V safety rating

Features

  • Measures AC/DC current via clamp up to 400A
  • Tests AC/DC voltage, resistance, frequency, capacitance
  • Includes temperature measurement with thermocouple
  • Auto-power off after 10 minutes
  • Data Hold, Max/Min, and Rel/Zero functions

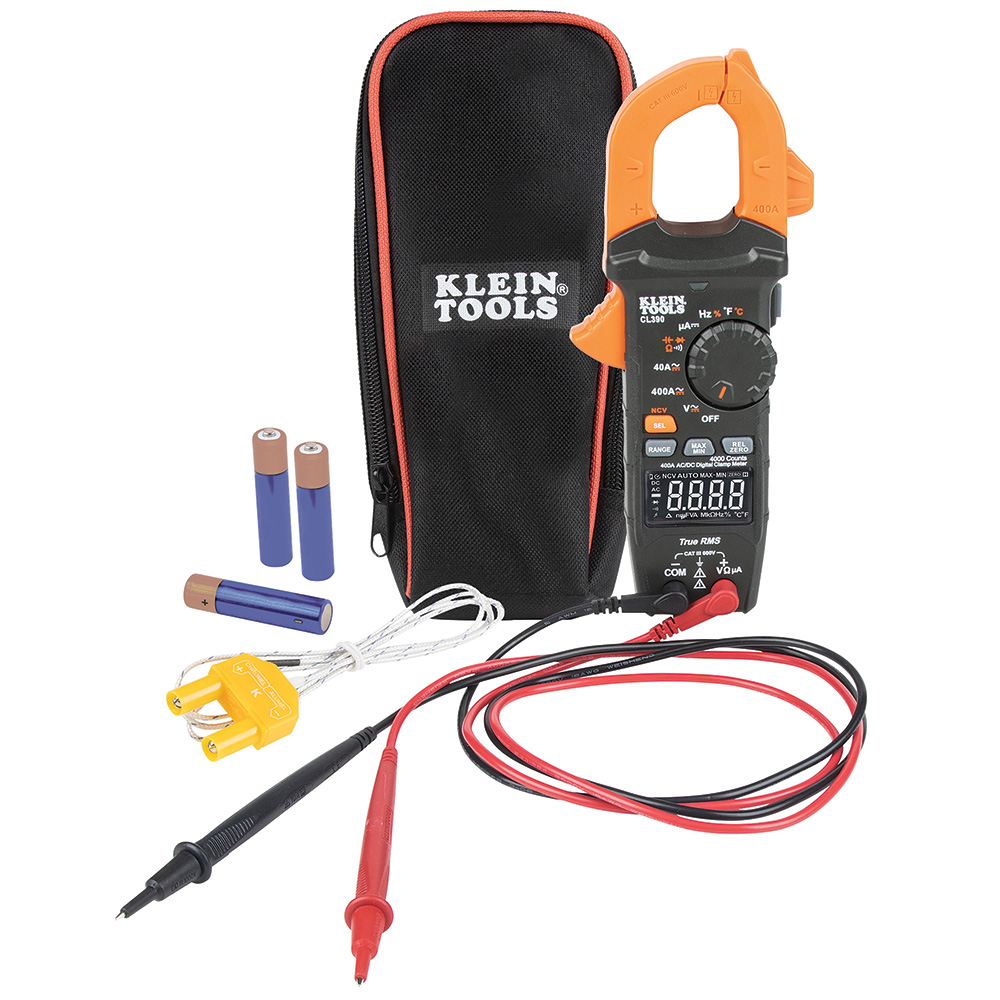

Includes

  • Clamp meter
  • Carrying case

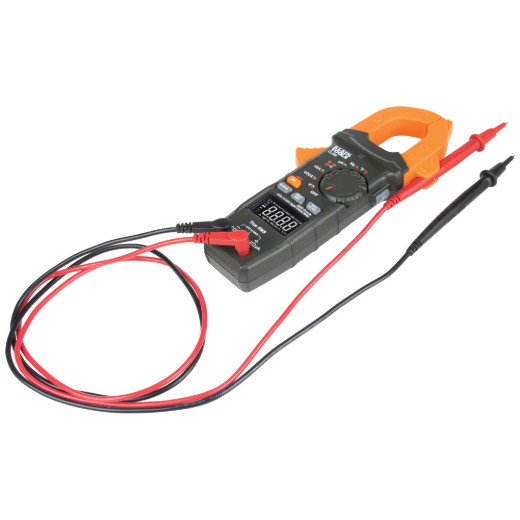

  • Test leads with safety caps
  • Thermocouple probe
  • 3 AAA batteries
  • Instructions

Specifications

TypeAC/DC Current TRMS ClampJaw Size1.6 inch (4.1 cm)
Display4000 Count Reverse Contrast LCDVoltage Rating600V AC/DC
Current Range400A AC/DCCapacitance Range4000 uF
Resistance Range40 MTemperature Range-40 deg to 1832 degF
DC Micro-Amp200 uAFrequency Range10 Hz to 60 kHz
Drop Protection6.6 ft (2 m)Safety RatingCAT III 600V, Class 2
Batteries3 x AAAOverall Length8.45 inch (21.5 cm)
Overall Height1.5 inch (3.8 cm)Overall Width3.5 inch (8.9 cm)
*
*
*
