Klein Tools CL490 400A AC/DC Digital Clamp Meter

Mfr.: Klein Tools
Item #: I095260
Mfr. #: CL490
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $188.30
i h h

Description

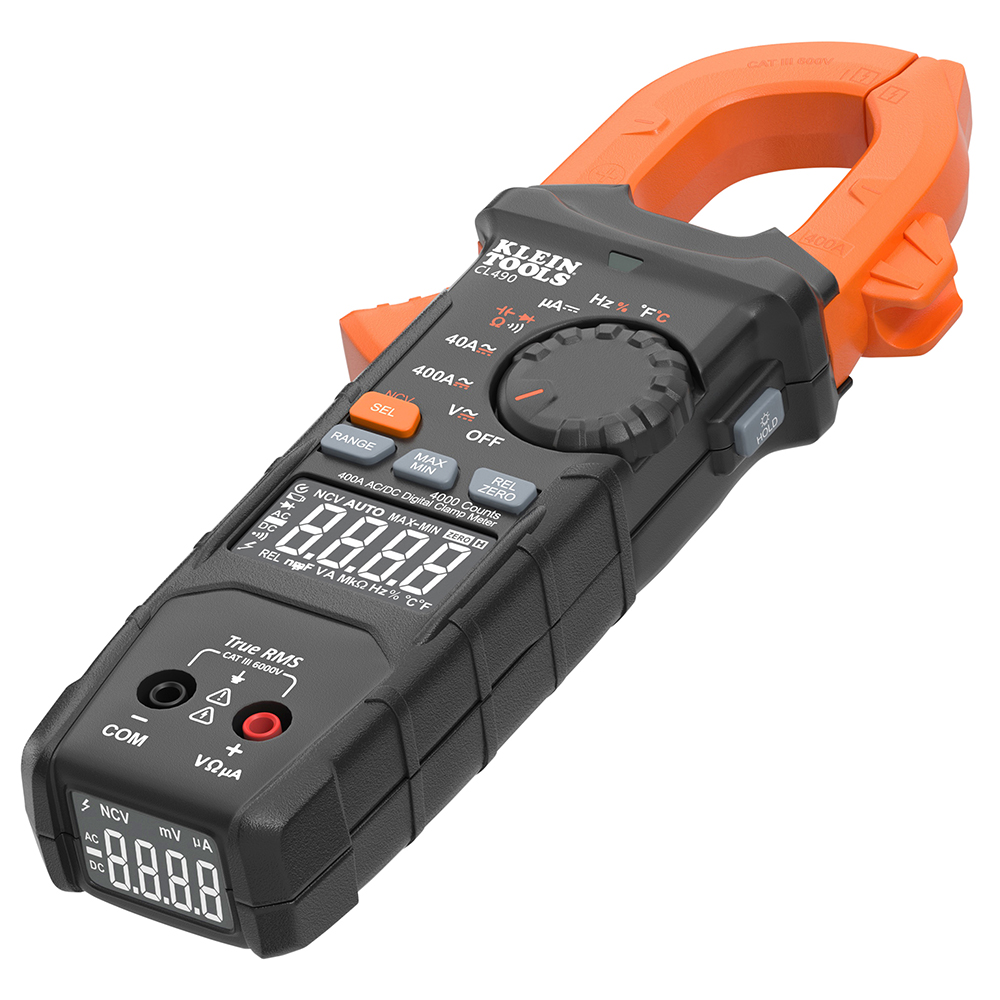

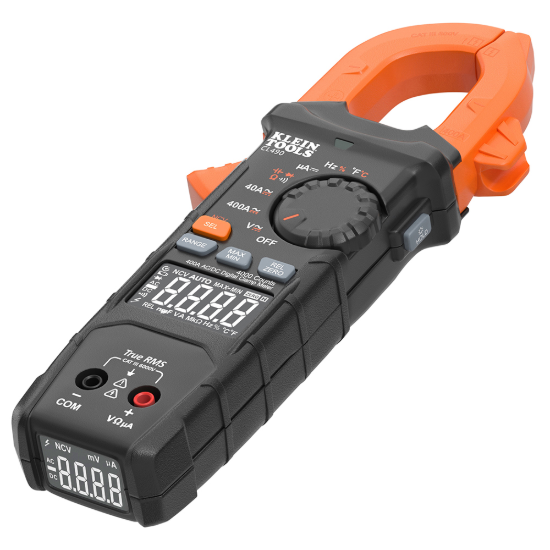

The Klein Tools CL490 is a dual-display digital clamp meter with True RMS accuracy for precise measurements. It features auto-ranging capability and measures multiple electrical parameters including current, voltage, resistance, and temperature.

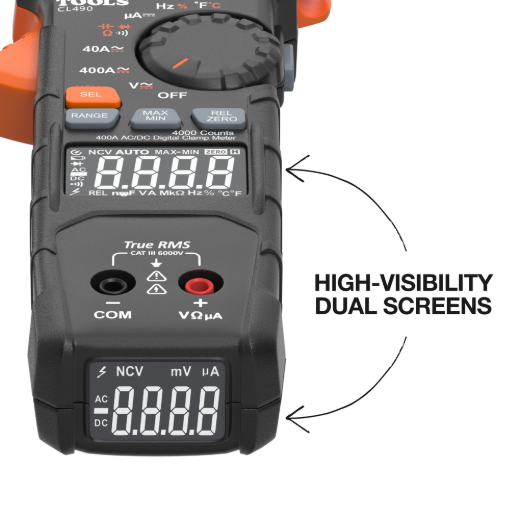

  • Dual display for tight spaces
  • True RMS accuracy
  • 400A AC/DC current measurement

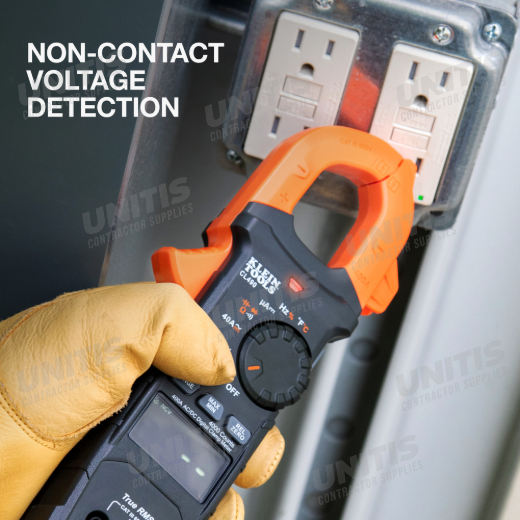

  • NCVT non-contact voltage detection
  • 6.6 foot drop protection

Features

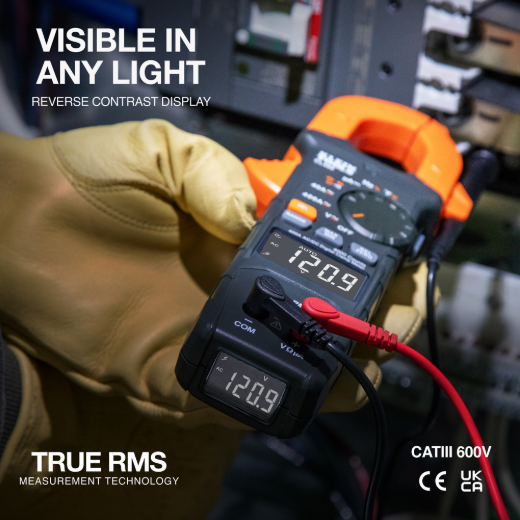

  • Backlit reverse-contrast LCD displays
  • Ergonomic design with thumb dial adjustment
  • Side-mounted test lead holder and back mount
  • Auto-ranging for precise measurements

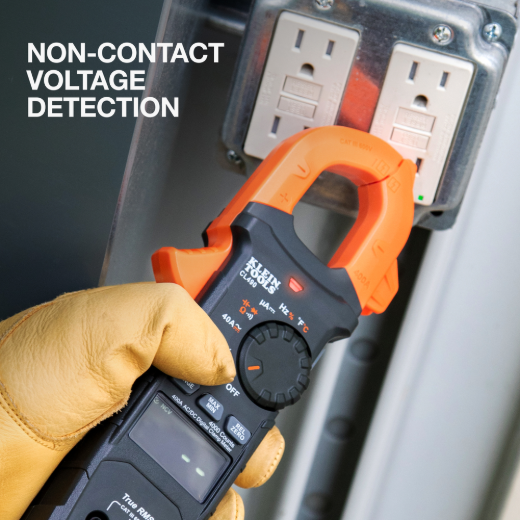

  • NCV detection with audio-visual alerts

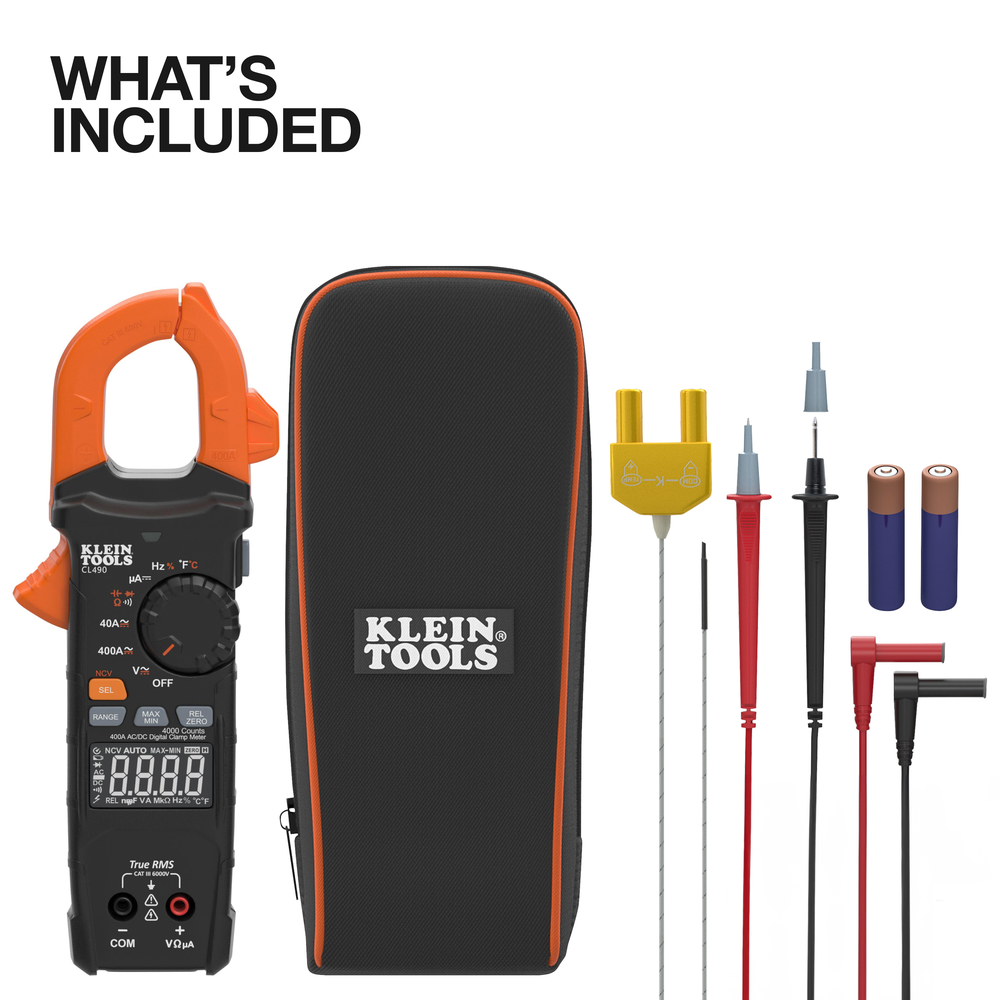

Includes

  • Clamp meter
  • Carrying case
  • Test leads

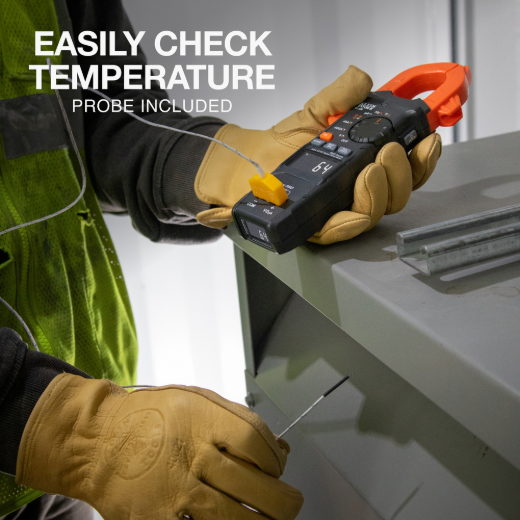

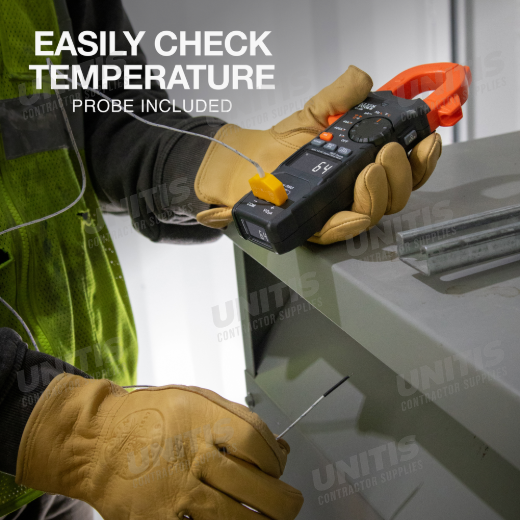

  • Thermocouple
  • 2 x AA batteries
  • Instructions

Specifications

TypeDual Screen AC/DC Current TRMS ClampJaw Size1.6 inch (4.1 cm)
Display4000 Count Backlit Hi-VizAuto RangingYes
TRMSYesVoltage600V AC/DC
Frequency10Hz - 60kHzCurrent400A AC/DC
Capacitance4000uFResistance40M
DC Micro-Amp200uATemperature Range-40 deg to 1832 degF
Safety RatingCATIII 600VDrop Protection6.6 feet (2 m)
Batteries2 x AAAuto-Power OffYes
Overall Length3.54 inch (9 cm)Overall Height8.46 inch (21.5 cm)
Overall Width1.5 inch (3.8 cm)UPC092644694271
*
*
*
