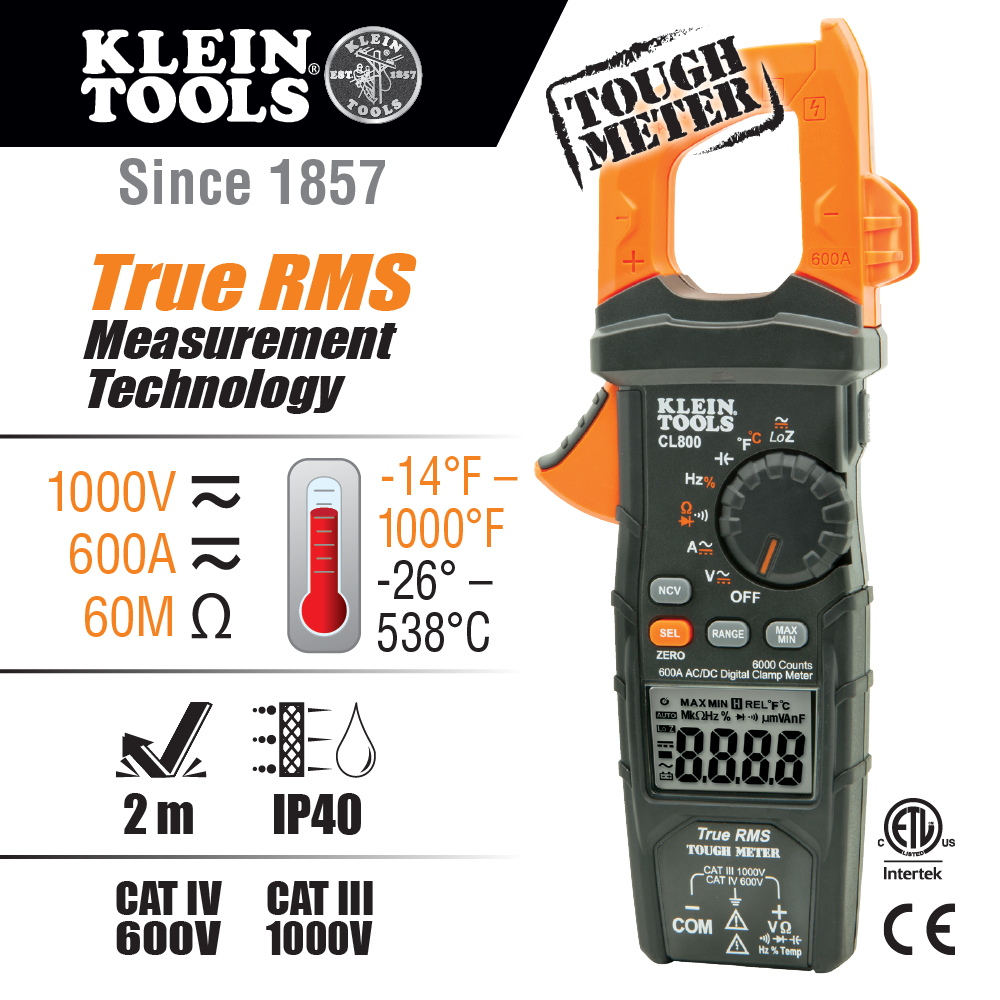

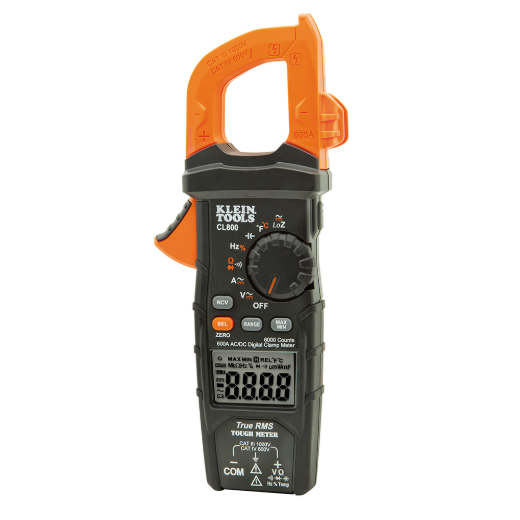

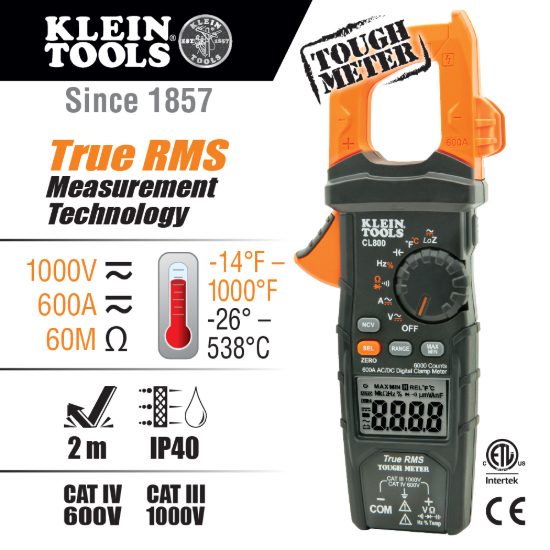

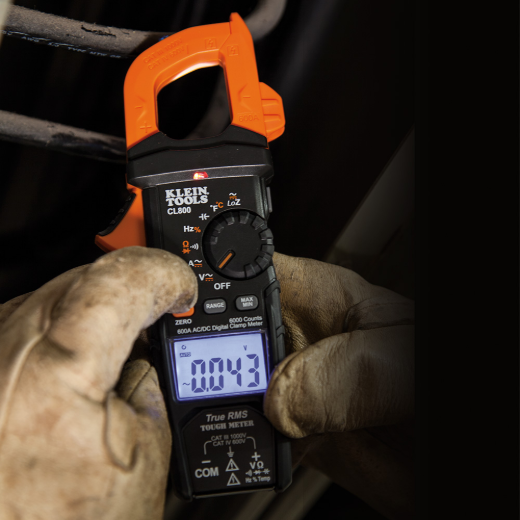

Klein Tools CL800 Digital Clamp Meter

Mfr.: Klein Tools
Item #: I095218
Mfr. #: CL800
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $165.15
i h h

Description

The Klein Tools CL800 is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It features Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages.

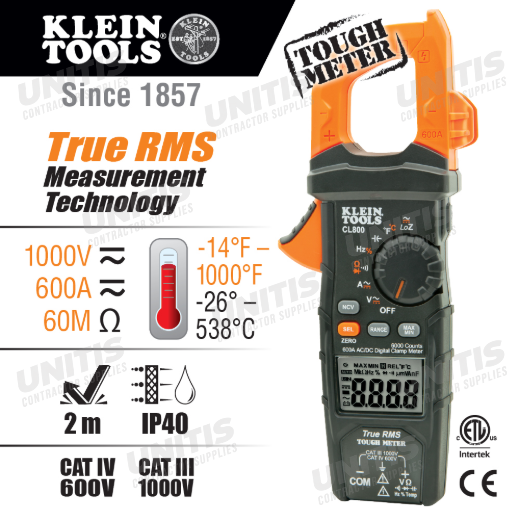

  • AC Auto-Range TRMS
  • Low Impedance (LoZ) mode
  • Auto Off
  • CAT IV 600V safety rating
  • 6.6-Foot drop protection

Features

  • Measures AC/DC voltage, resistance, continuity, frequency, capacitance
  • Tests diodes and measures temperature via thermocouple probe
  • Low Impedance (LoZ) mode eliminates ghost voltages
  • Built to withstand 6.6-foot (2m) drop
  • CAT IV 600V, CAT III 1000V safety rating

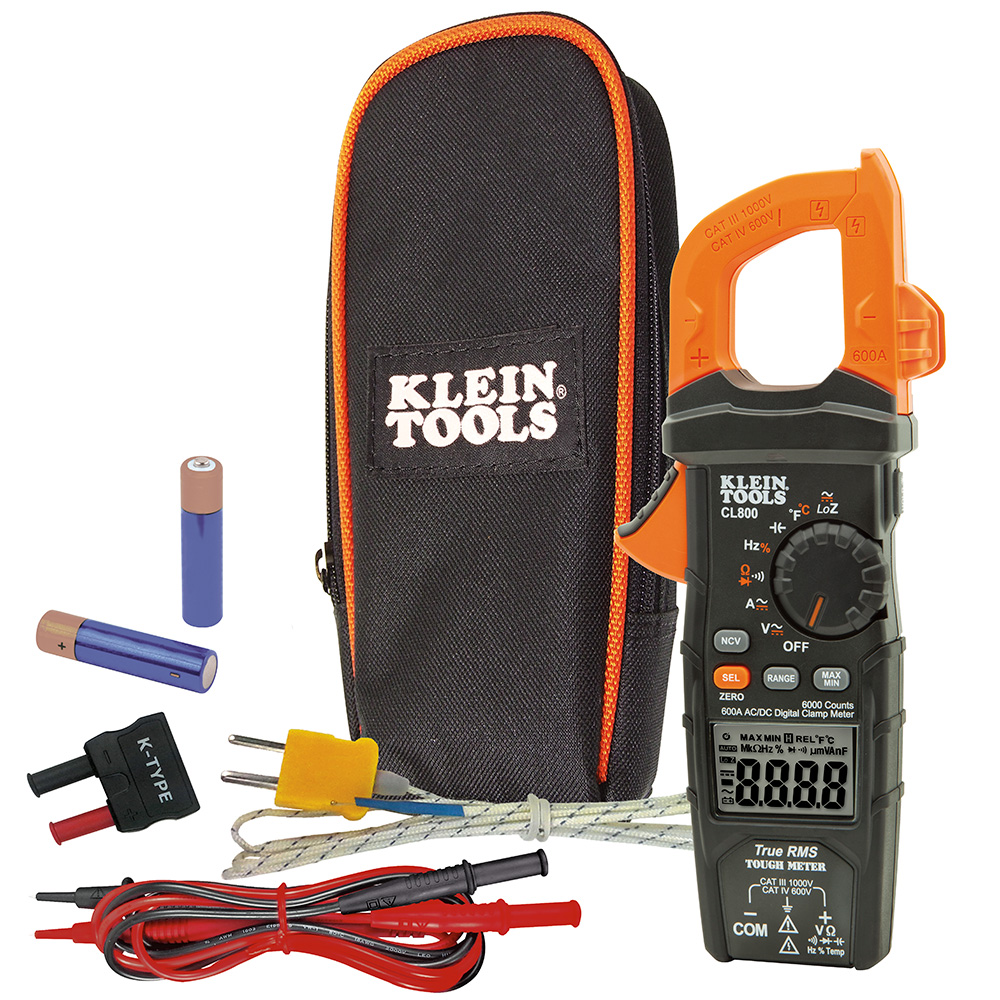

Includes

  • Digital Clamp Meter
  • Carrying Case
  • 41'' Test Leads
  • Thermocouple with Adapter
  • Batteries

Specifications

Jaw Size1.38 inch (3.5 cm)Display6000 Count LCD
Voltage AC1000VVoltage DC1000V
Current AC600ACurrent DC600A
Frequency Range1Hz - 500 KHzCapacitance6000uF
Resistance60MTemperature Range-14 degF to 1000 degF
Drop Protection6.6 ft (2 m)Operating Temp32 degF to 104 degF
Operating Altitude6562 ft (2000m)Ingress ProtectionIP40
Safety StandardCAT IV 600VBatteries2 x AAA
Overall Length9.09 inch (23.1 cm)Overall Height1.55 inch (3.9 cm)
Overall Width3.81 inch (9.7 cm)UPC092644690167
*
*
*
