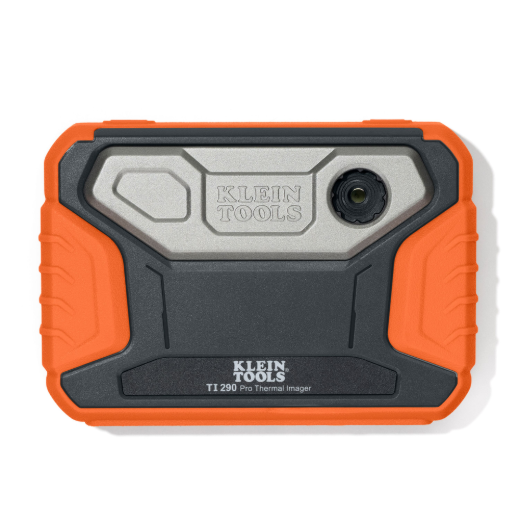

Klein Tools TI290 Rechargeable Pro Thermal Imaging Camera

Mfr.: Klein Tools
Item #: I094853
Mfr. #: TI290
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $766.99
i h h

Description

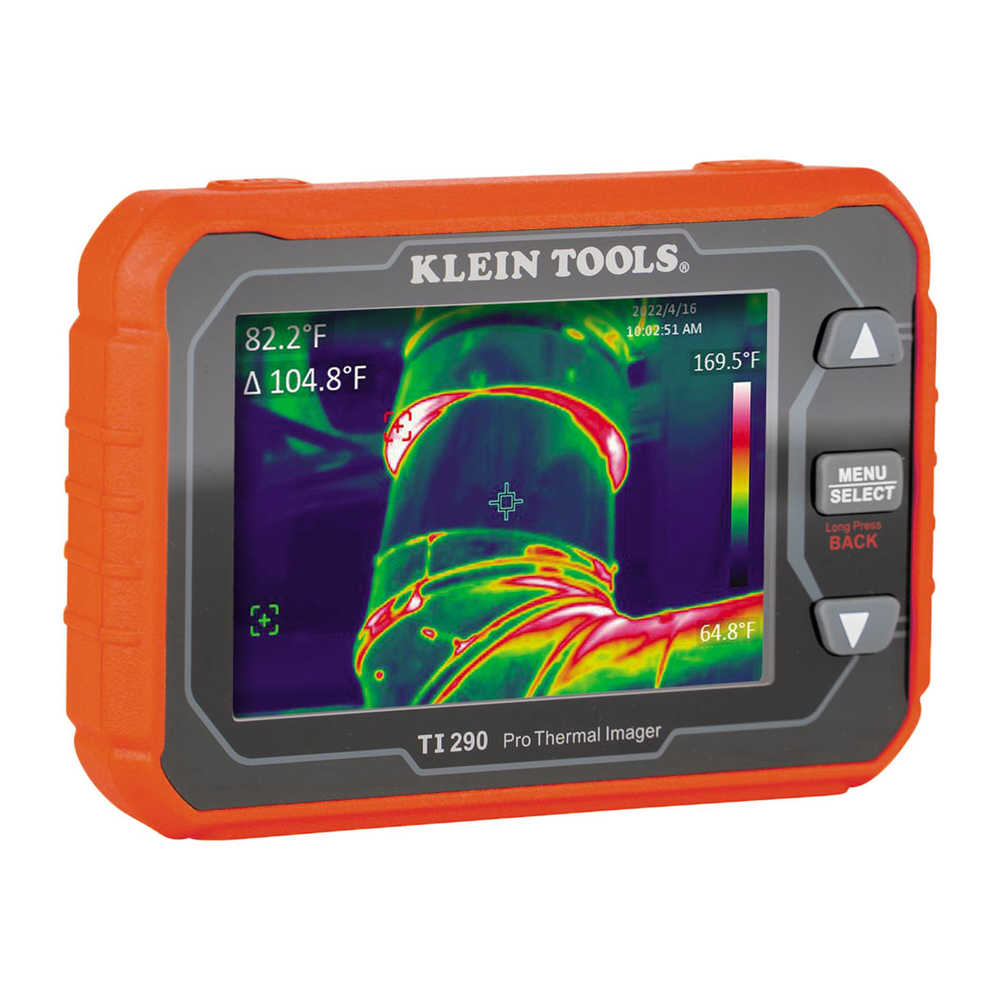

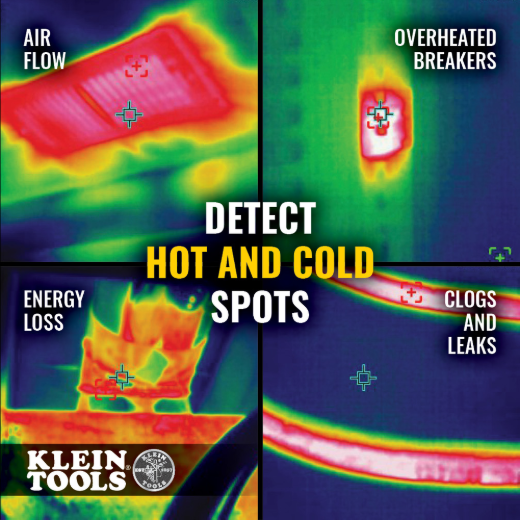

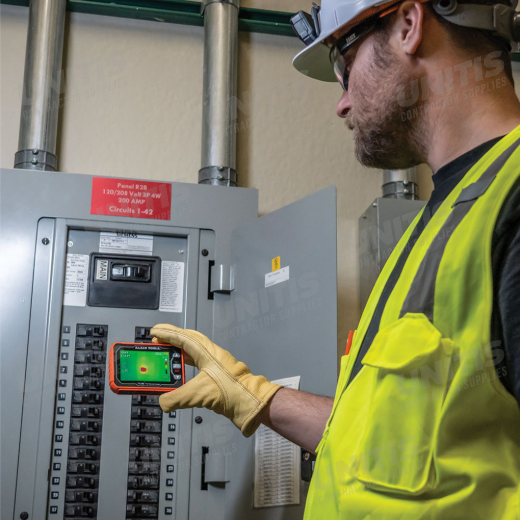

The Klein Tools TI290 is a high resolution, Wi-Fi enabled professional thermal imager with over 76,800 pixels. It features a large LCD display for troubleshooting hot and cold spots with temperature alarms and color palettes.
  • 76,800 pixel resolution
  • Wi-Fi data transfer capability
  • Rechargeable lithium-ion battery
  • Adjustable emissivity 0.01-0.99
  • Three color palette options

Features

  • Wi-Fi enabled for image sharing
  • High and low temperature alarms
  • Crosshairs for pinpointing temperatures
  • Durable with 6.6-foot drop protection
  • Free app for iOS and Android

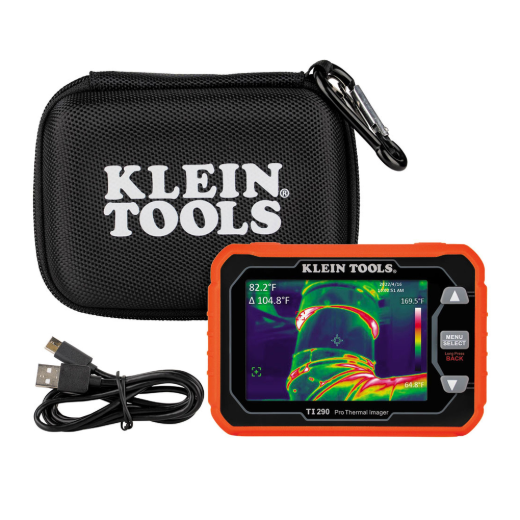

Includes

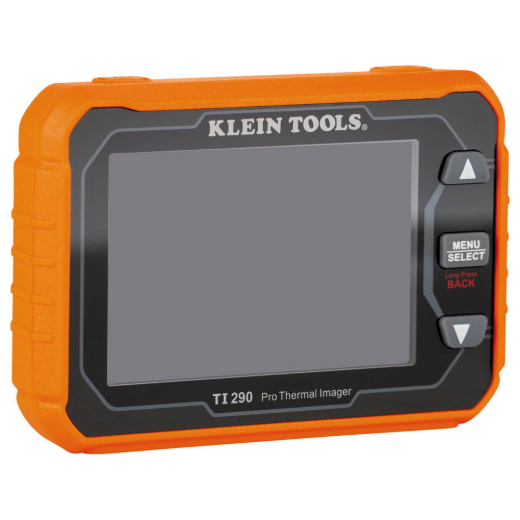

  • Thermal imager

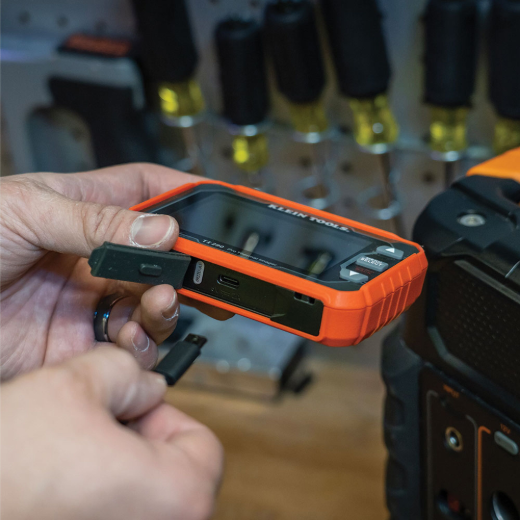

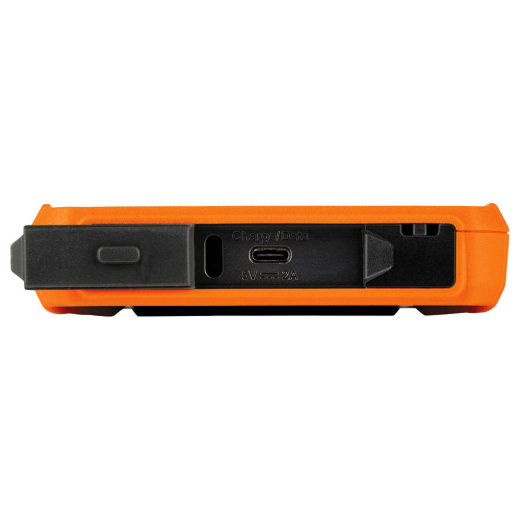

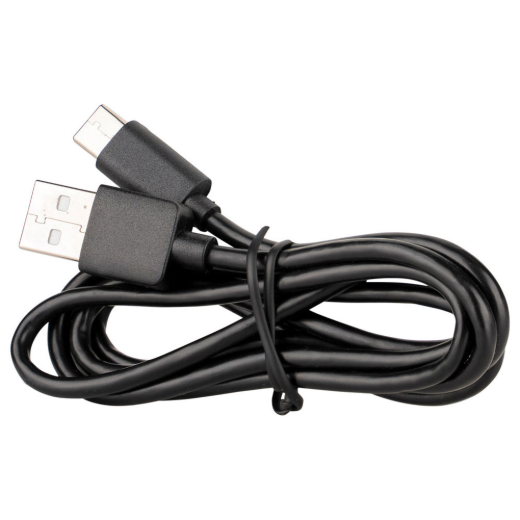

  • USB-C charging cable

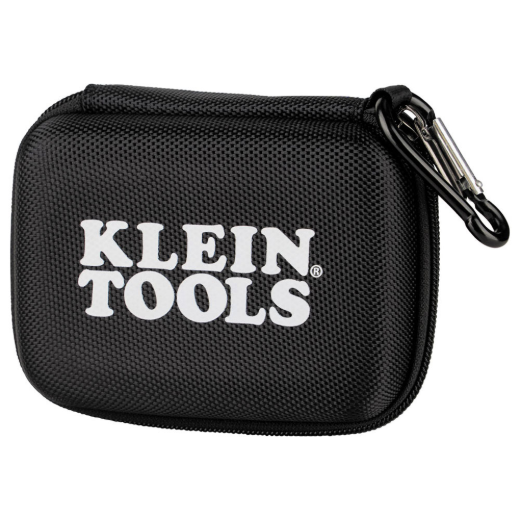

  • Molded soft-storage case with carabiner
  • Instructions

Specifications

TypeThermal ImagerDisplay3.5 TFT LCD
Display Resolution480 x 320 pixelsSensor TypeVOx Microbolometer
Sensor Resolution76,800 pixelsThermal Sensitivity<50 mK
Spectral Range8 to 14mTemperature Range-40 deg to 752 degF
Accuracy+/-2 degC or 2%Field of View56 deg +/- 2.8 deg
Emissivity Range0.01 to 0.99Color PalettesIronbow, Rainbow, Grayscale
Maximum FPS<9 HzMemory Capacity10,000 images
Battery TypeLithium-IonBattery Life5 years
Overall Length4.5 inchesOverall Width1.1 inches
Overall Height3.1 inchesWeight8.3 ounces
StandardsCE and UKCA
*
*
*
