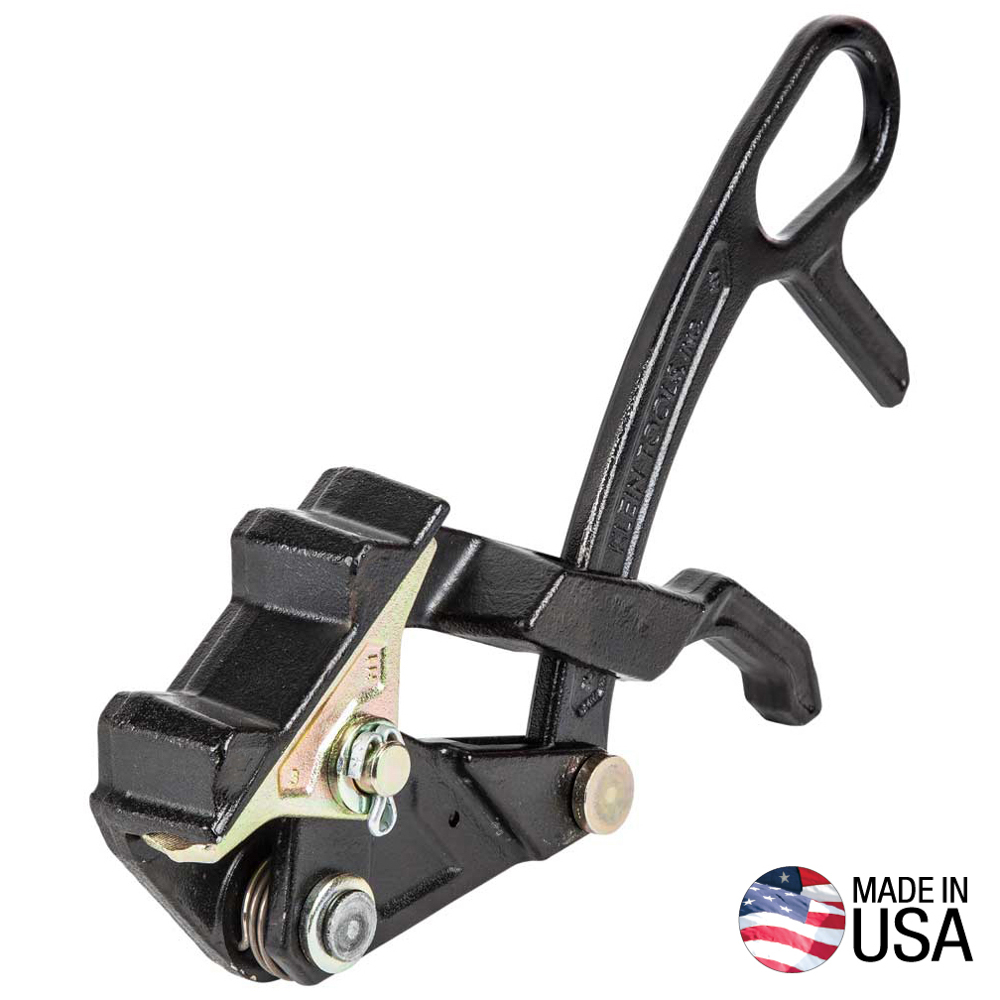

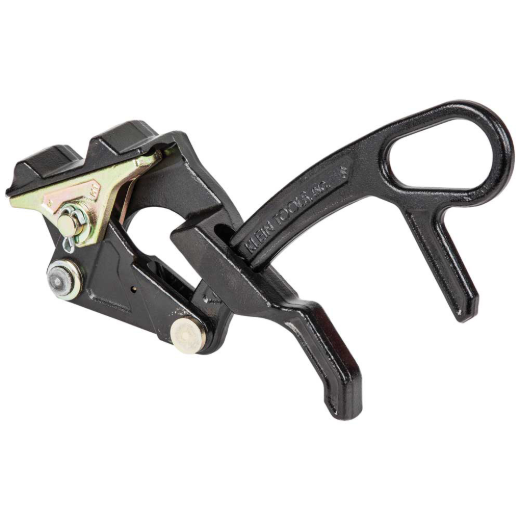

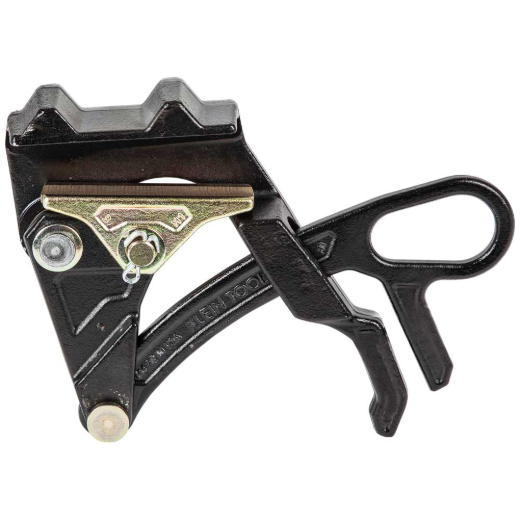

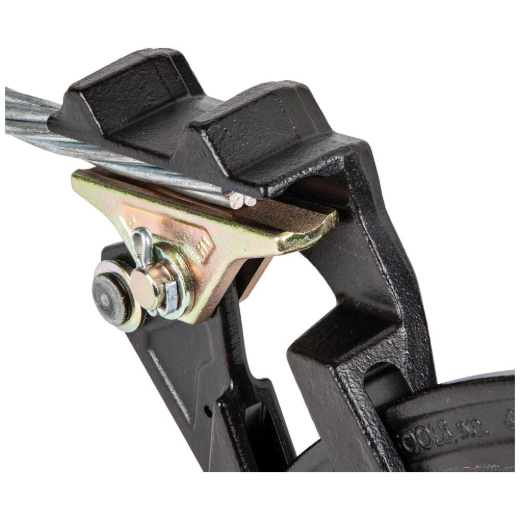

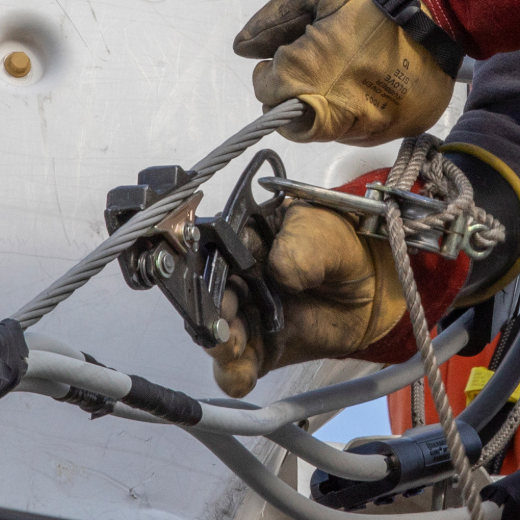

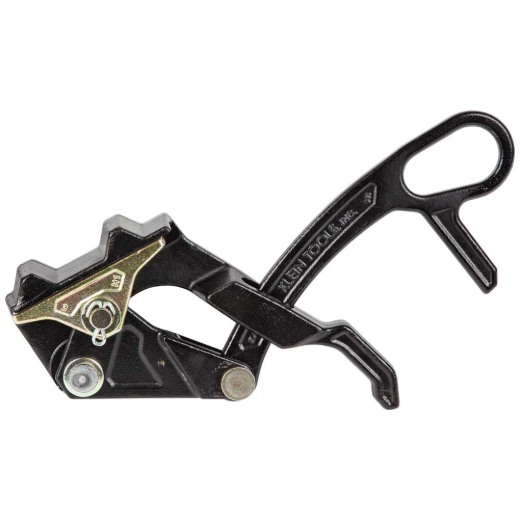

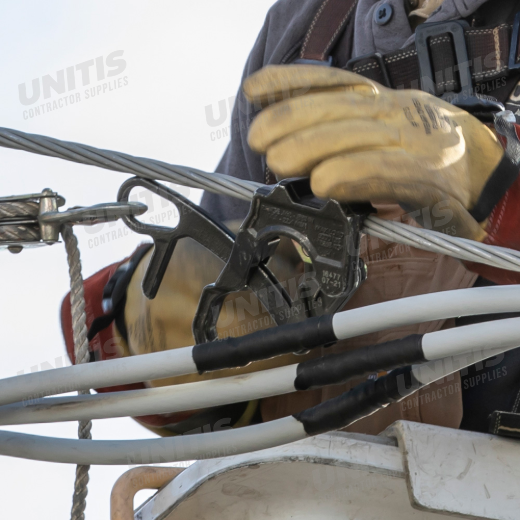

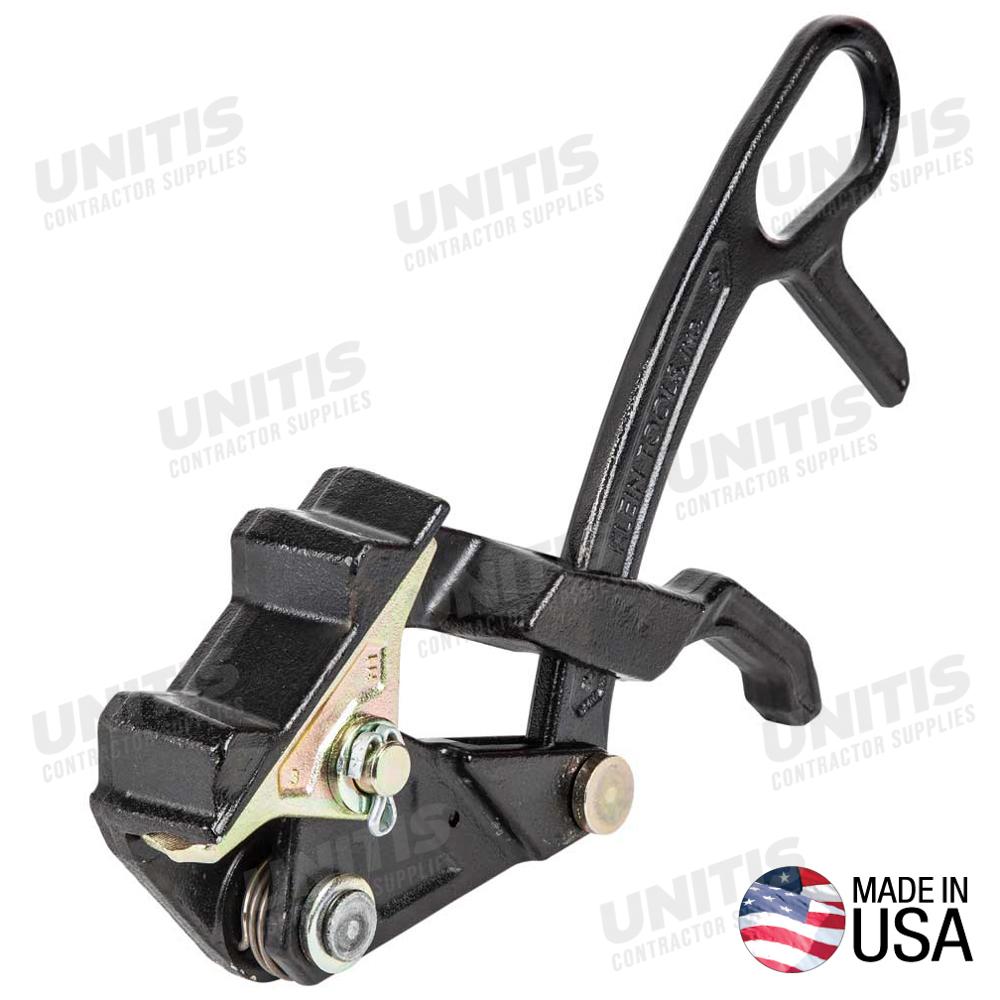

Klein Wide Range Distribution Grip

Mfr.: Klein Tools
Item #: I095003
Mfr. #: 16477
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $472.71
i h h

Description

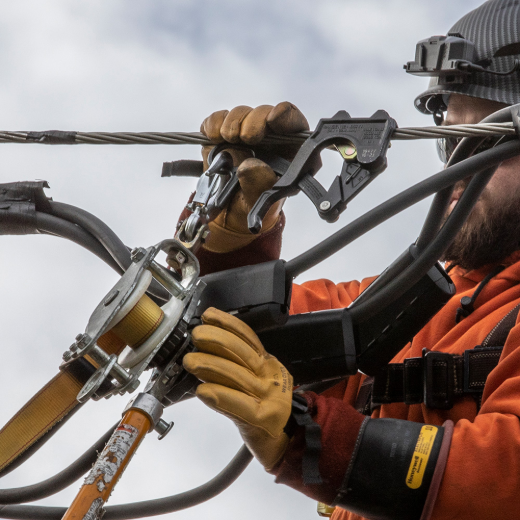

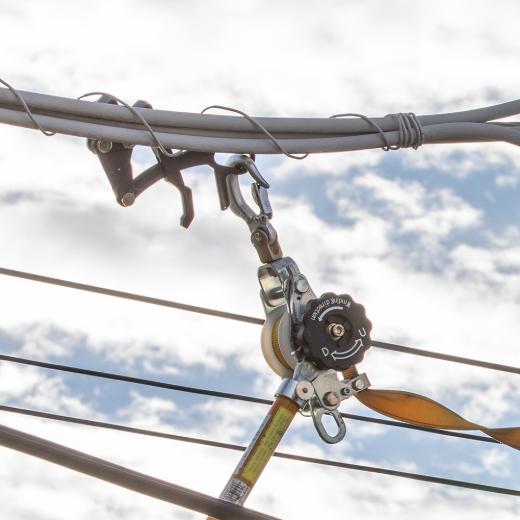

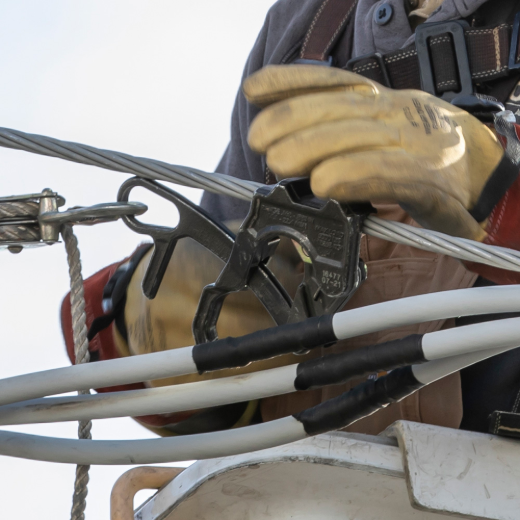

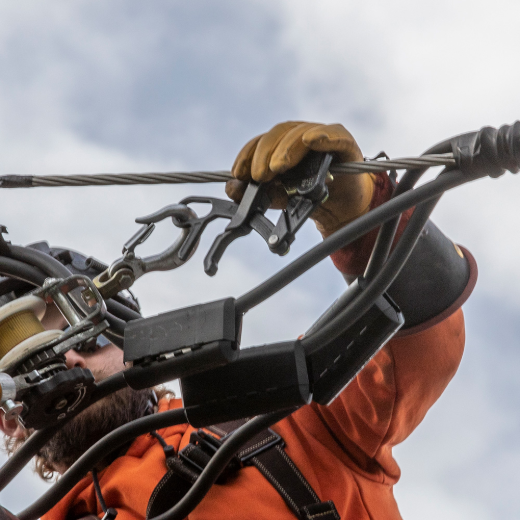

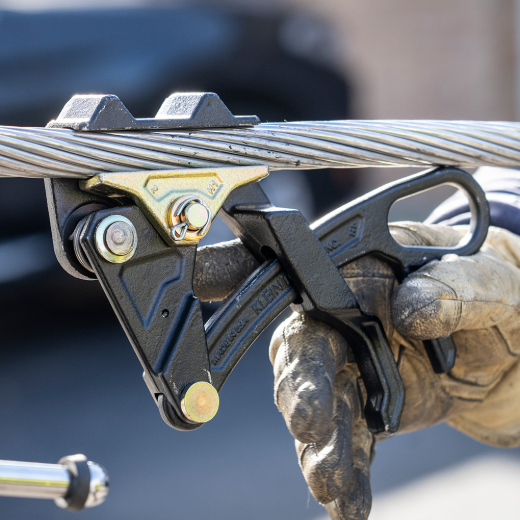

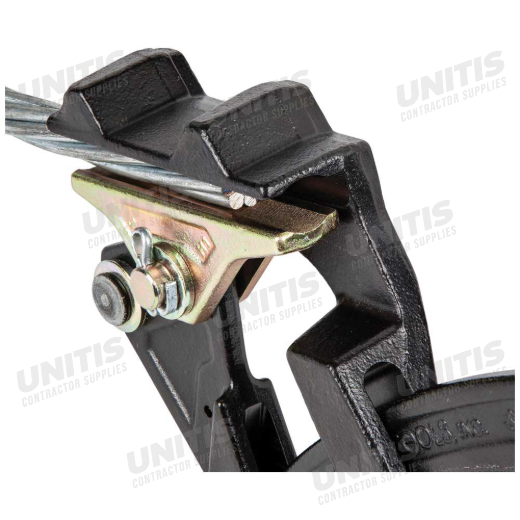

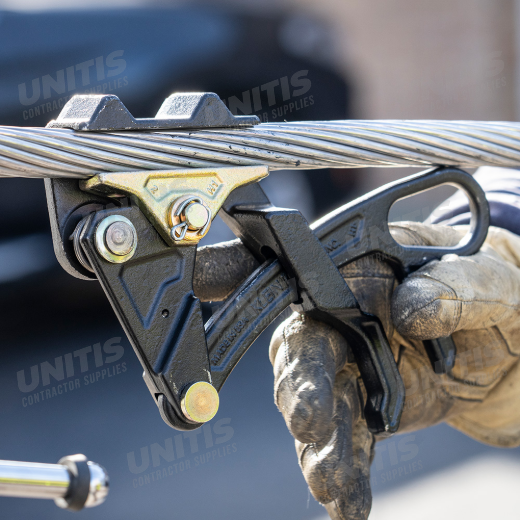

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. Made in the USA with a maximum safe load of 5000 pounds.
  • One-handed design for easier actuation

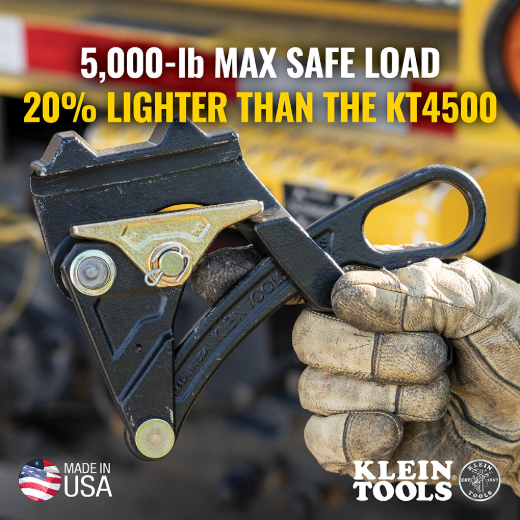

  • 20% lighter than Cat. No. KT4500 grip
  • Spring closes grip to hold initial position
  • Max safe load of 5000 pounds (2268 kg)
  • Made in the USA

Features

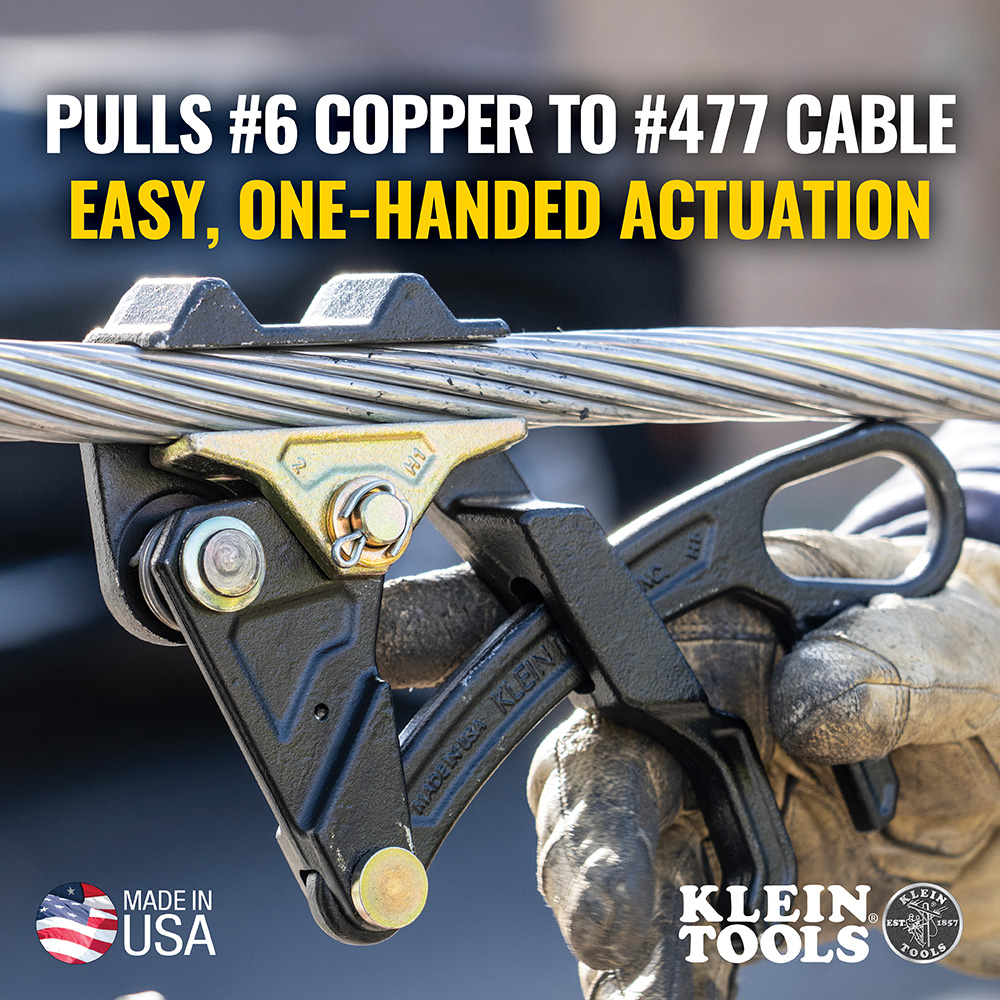

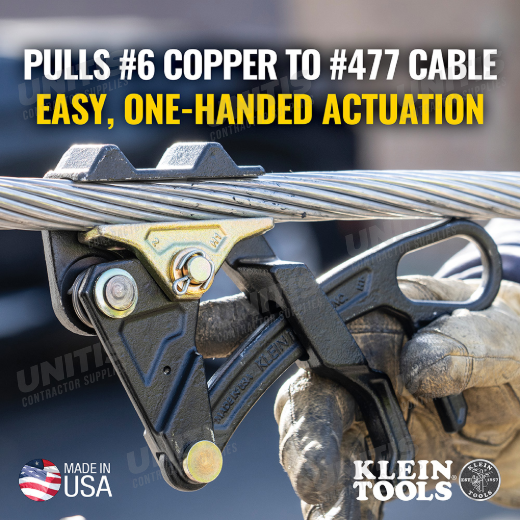

  • Pulls No. 6 Copper to No. 477 ACSR cable
  • Cable diameter range: 0.162 to 0.883 inches
  • Large handle opening accommodates various hooks
  • Patent pending design
  • For temporary installation, not permanent anchorage

Specifications

TypeParallel Jaw GripApplicationWire Pulling
Special FeaturesOne-Handed GripOverall Length10 inches
Overall Height1.25 inchesOverall Width6.5 inches
MaterialSteelCable TypeCopper, AAC, ACSR
Cable Diameter0.162 to 0.883 inchesHot LatchNo
Swing LatchNoSpringYes
Locking HandleNoJaw TypeRound
Teeth TypeFineJaw Length3.31 inches
Maximum Safe Load5000 poundsWeight2.9 pounds
UPC092644470721
*
*
*
