Laser Receiver with C45 Rod Clamp

Mfr.: Spectra Precision
Item #: I090601
Mfr. #: HL450
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $383.50
i h h

Description

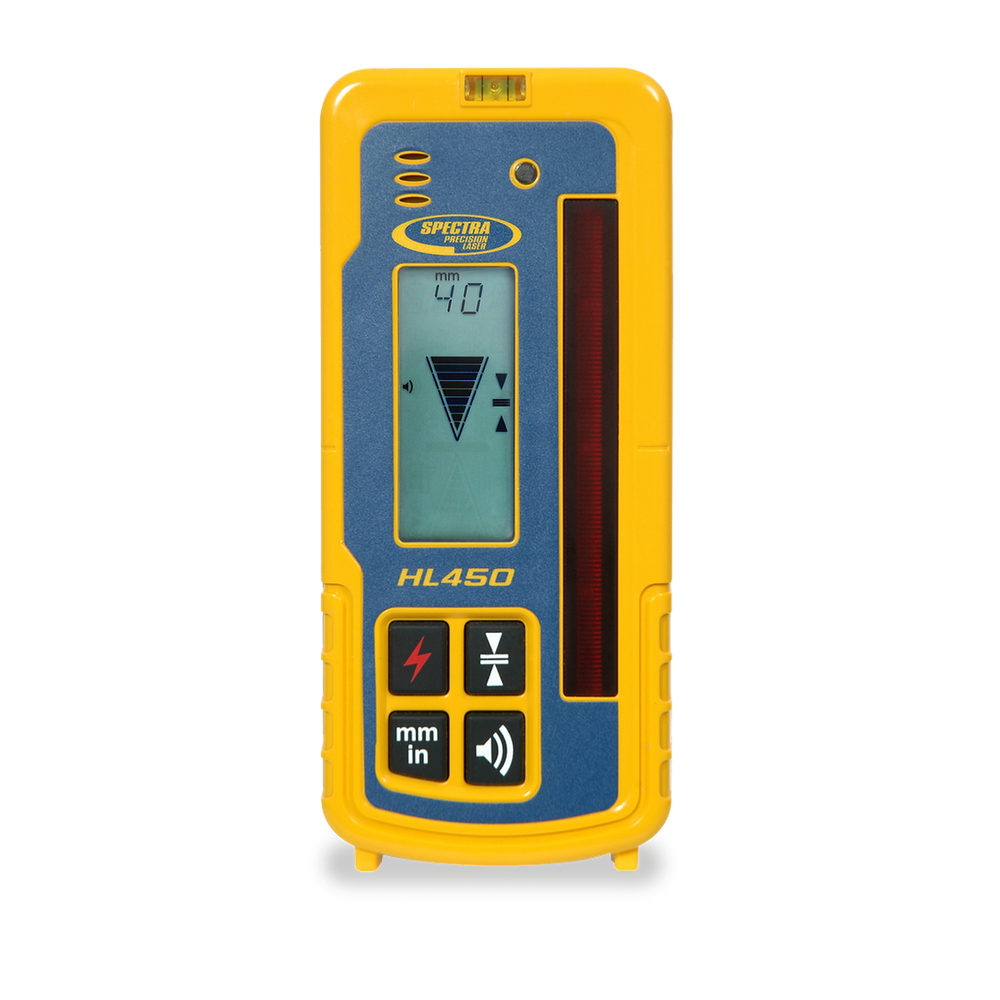

The HL450 Laser Receiver features a digital readout of elevation that provides a numeric display of 40 mm or 1.5 inches. This readout is displayed on large front and rear LCDs, showing exactly how far the elevation is from on-grade to increase productivity without moving the rod clamp. Equipped with a patented anti-strobe filter, it eliminates false readings from job site hazard lights for reliable accuracy in various environments.

Features

  • Digital readout provides numeric display of elevation distance for faster work
  • Anti-strobe filter eliminates false readings from vehicle hazard warning strobe lights
  • IP67 waterproof and dust-proof housing designed for harsh job site environments
  • Tough construction capable of withstanding a direct drop up to 10 feet (3 meters)
  • Dual LCD displays on front and back for easy visual indication of detector status
Products specifications
Working Radius (Laser Dependent) 1 - 200 m (3 - 650 ft)
Laser Detection Height 102 mm (4 inch)
Numeric Readout Height 76 mm (3 inch)
Accuracy (Fine) 1.0 mm (0.05 in)
Accuracy (Medium) 5.0 mm (0.20 in)
Accuracy (Calibration) 0.1 mm (0.01 in)
Reception Angle +/- 45 deg minimum
Battery Life 70+ hours
Environmental Waterproof, Dust-proof to IP67
Detectable Spectrum 610 nm ... 900 nm
Beeper Volumes Loud (100+ dBA), Low (65 dBA)
Power Supply 2 x 1.5 Volt AA batteries
Dimensions 168x76x36mm (6.6inx3inx1.4in)
Operating Temperature -20 degC to +60 degC (-4 degF to +140 degF)
Storage Temperature -40 degC to +70 degC (-40 degF to +158 degF)
Automatic Shut-Off 30 min
*
*
*
