  • M12 Green 360 3-Plane Laser Kit

M12 Green 360 3-Plane Laser Kit

Mfr.: Milwaukee Electric Tools
Item #: I053461
Mfr. #: 3632-21
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: Call for pricing
i h h

Description

The Milwaukee M12 Green 360 3-Plane Laser Kit is a high-performance layout tool designed to provide professional users with all-day runtime and industry-leading visibility. Featuring one horizontal and two vertical planes, this laser allows for rapid 360 alignment, leveling, and squaring across large workspaces. Built for the jobsite, it includes an integrated bracket with micro-control for precise positioning and amplified rare earth magnets that ensure a secure, slide-free hold on steel studs.
  • All-Day Runtime: Delivers 15+ hours of continuous runtime when paired with the included M12 REDLITHIUM XC 4.0 battery.
  • High-Intensity Green Laser: Optimized for distance, providing superior visibility with a working range of up to 125 feet (radius).

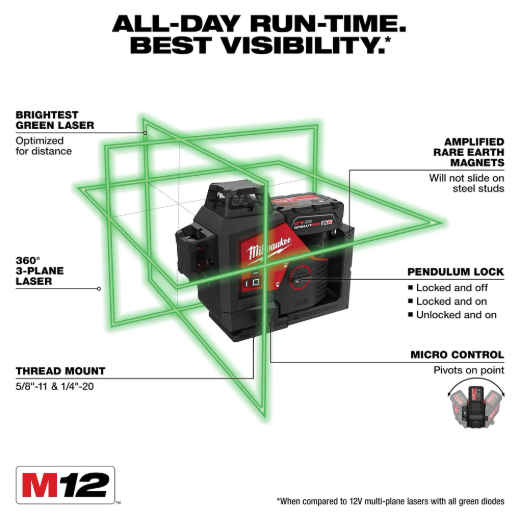

Features

  • Micro-control dial pivots on the plumb point for fast, easy alignment and precise point-to-point setup.
  • Amplified rare earth magnets provide a strong hold and will not slide on steel studs or metal surfaces.
  • IP54 rated for water and dust resistance, with a rugged design capable of withstanding 1-meter impacts.
  • Self-leveling capability with +/- 4 degree tilt range and an integrated fuel gauge for monitoring battery life.

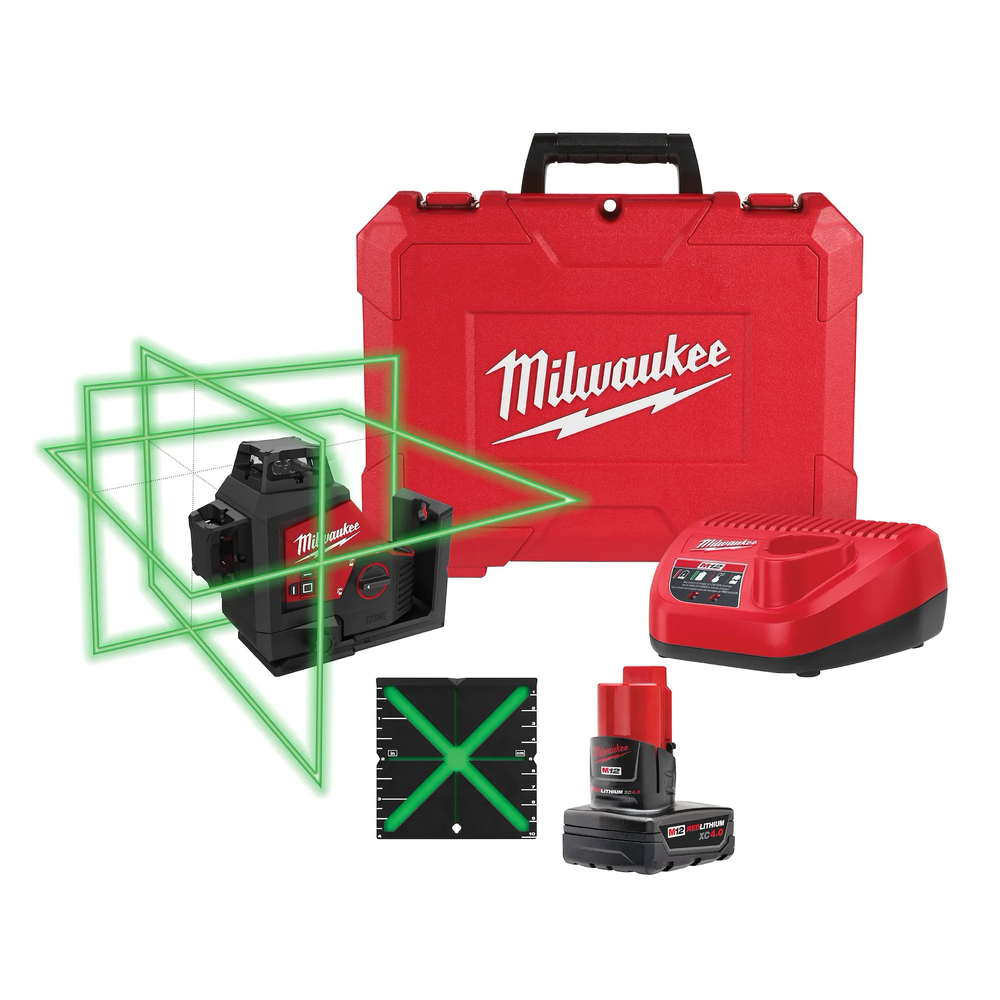

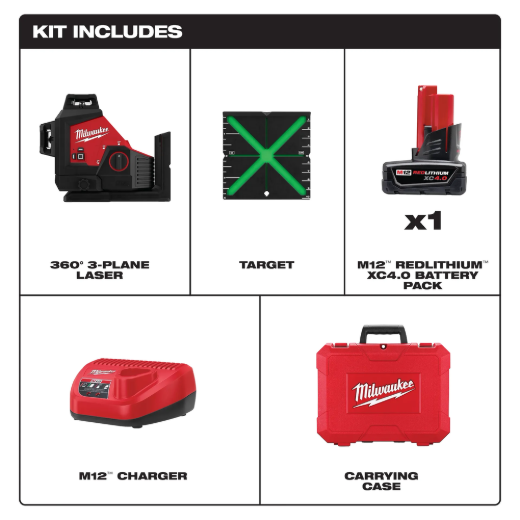

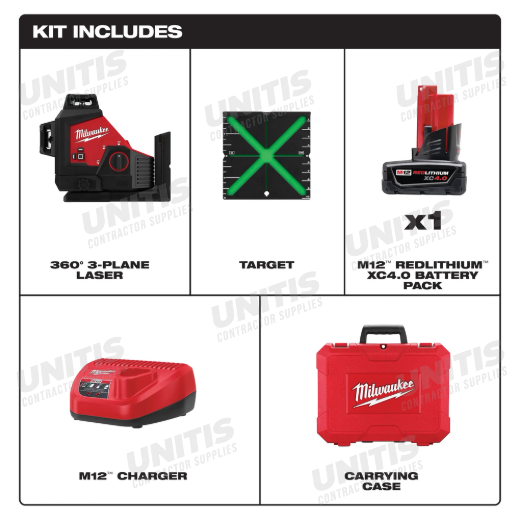

Includes

  • (1) M12 Green 360 3-Plane Laser (3632-20)
  • (1) M12 REDLITHIUM XC 4.0 Extended Capacity Battery Pack (48-11-2440)
  • (1) M12 Lithium-ion Battery Charger (48-59-2401)
  • (1) Responsive Laser Alignment Target (48-35-1111)
  • (1) Carrying Case
Products specifications
Durability Rating IP54 / 1m Impact Resistance
Self-Leveling +/- 4 deg Tilt
Accuracy +/- 1/8 inch @ 33 ft
Mounting Threads 1/4-20 & 5/8-11
Warranty 3 Year Tool / 3 Year Battery
Weight 2.6 lbs
Dimensions 7.8 inch L x 4.1 inch W x 6.5 inch H
Range with Detector (Radius) 165 ft
Laser Color Green
Voltage 12V
Working Range (Radius) 125 ft
Laser Type 360 deg 3-Plane
*
*
*
