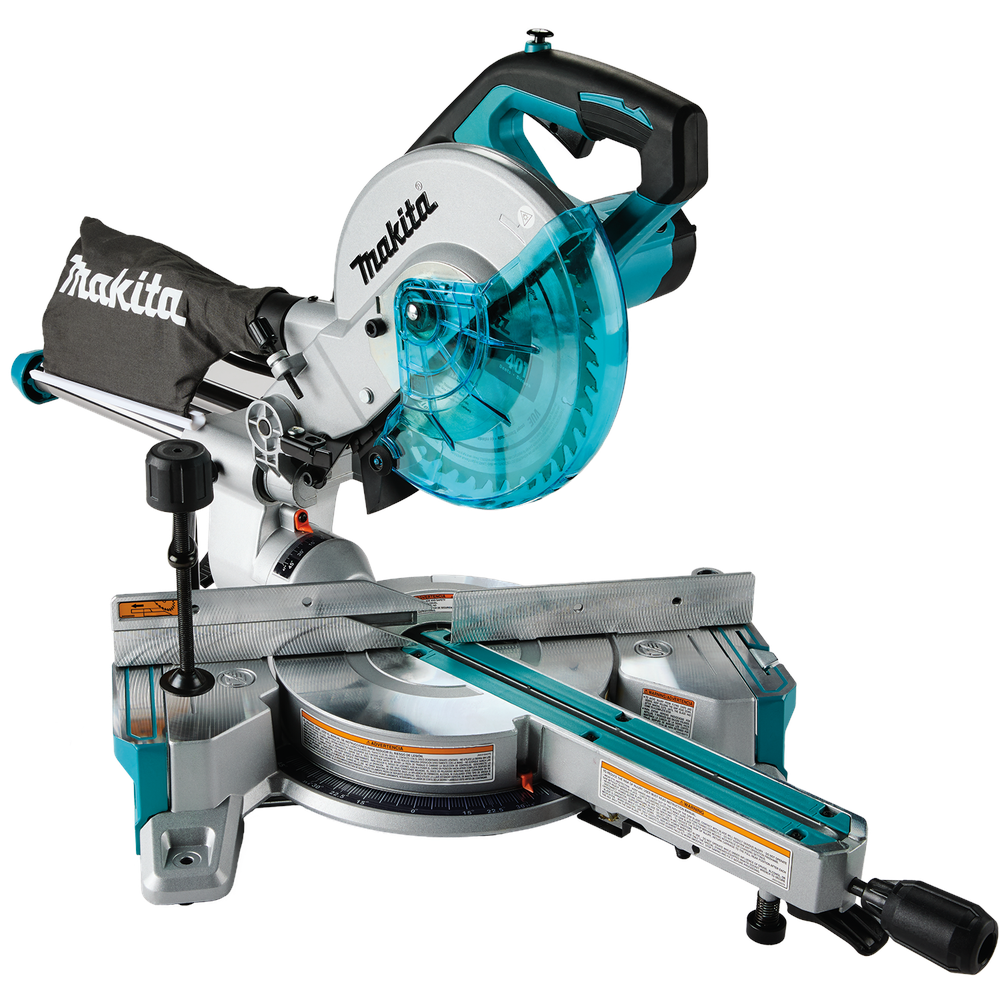

Makita Corded 8-1/2" Slide Compound Miter Saw

Mfr.: Makita USA
Item #: I098064
Mfr. #: LS0816F
*
Pickup at Corona | Change Delivering to 90001 | Change

Price: $569.00
i h h

Description

Compact and lightweight (30.6 lbs.) slide compound miter saw with powerful 10.5 AMP motor delivering 5,000 RPM. Ideal for finish carpentry, crown molding, and general construction.

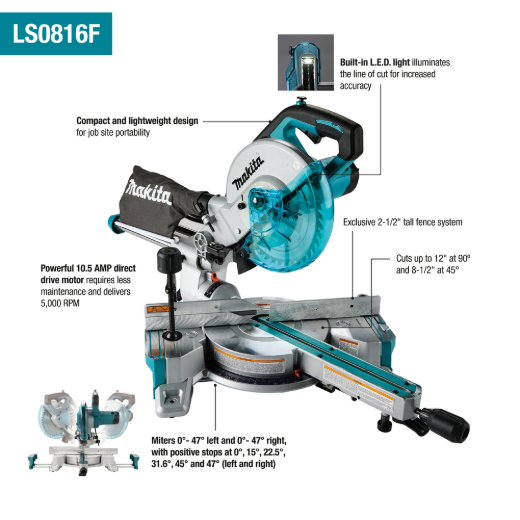

  • Compact and lightweight design (30.6 lbs.) for portability
  • Cuts up to 12 inch at 90 and 8-1/2 inch at 45
  • Linear ball bearing system for accurate cuts
  • Built-in LED light illuminates line of cut
  • Electric brake for maximum productivity

Features

  • Powerful 10.5 AMP direct drive motor, 5,000 RPM
  • Miters 0-47 left and right with positive stops
  • Dual rear handle bevel lock, 0-47 left, 0-2 right
  • Soft start for smooth start-ups
  • Exclusive 2-1/2 inch tall fence system

Includes

  • 8-1/2 inch C.T. Blade 40T
  • Hex Wrench
  • Dust Bag
  • Vertical Vise

Specifications


Blade Diameter8-1/2 inchArbor5/8 inch
Max Cutting Capacity (90)12 inchMax Cutting Capacity (45)8-1/2 inch
No Load Speed5,000 RPMDimensions (LxWxH)27-3/4 inch x 18-3/4 inch x 20-1/2 inch
AMPS10.5Net Weight30.6 lbs.
Cord Length6.6Electric BrakeYes
LED lightYesSoft startYes
Stand includedNoPower TypeCorded
Products specifications
Amps 10.5 A
Arbor Size 5/8 in
Blade Diameter 8-1/2 in
Cordless/Corded Corded
Country of Origin Varies (subject to change)
Cutting Capacity (at 45 degrees) 3-9/16 x 8-7/16 in
Cutting Capacity (at 90 degrees) 3-9/16 x 12 in
Max Bevel Angle 45 degrees Left / 5 degrees Right
Max Miter Angle 47 degrees Left / 57 degrees Right
Miter Saw Type Slide Compound
No-Load Speed 5000 RPM
Tool Weight 27.2 lb
*
*
*
