Max USA Corp. Rebar Tying Tool RB518

Mfr.: Max USA Corp
Item #: I077374
Mfr. #: RB518
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $3,667.20
i h h

Description

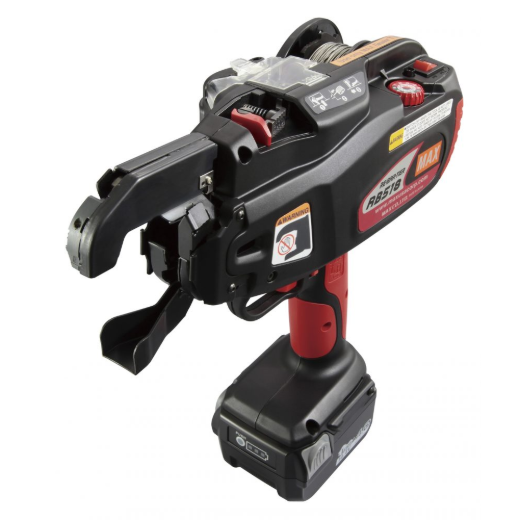

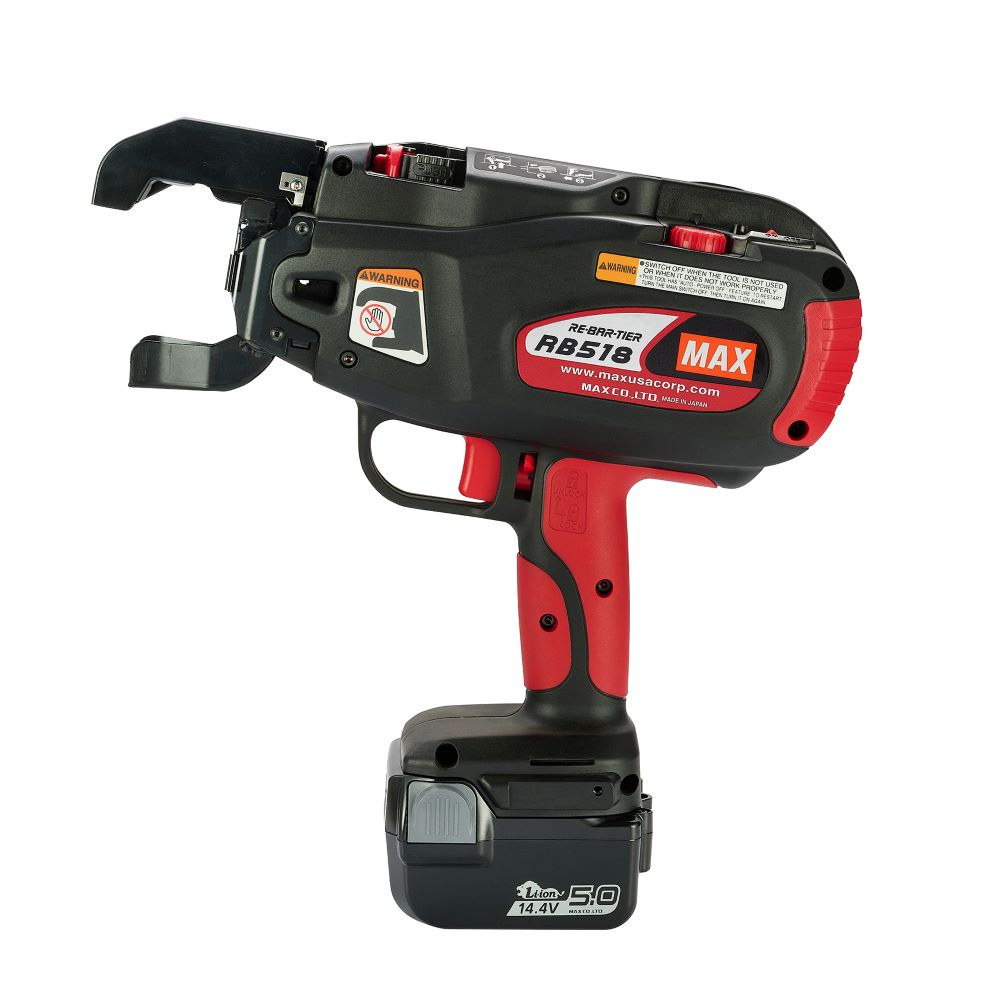

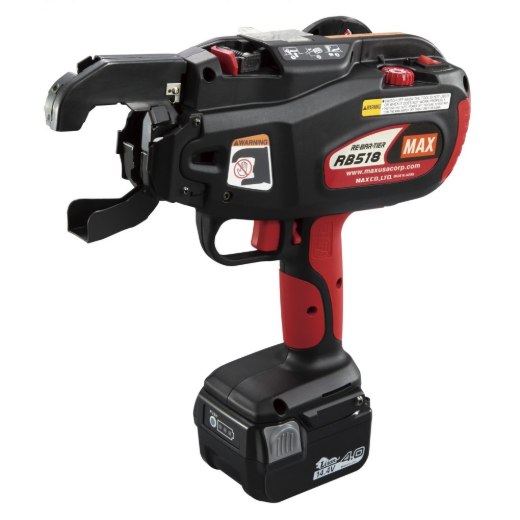

The Max RB518 is a high-performance, battery-operated rebar tying tool designed to handle large rebar combinations from #5 x #5 up to #7 x #8. This cordless tool operates approximately five times faster than manual tying, completing a consistent tie in less than one second. Its ergonomic, lightweight design allows for one-handed operation, significantly reducing physical strain and the risk of musculoskeletal injuries while increasing jobsite productivity.
  • Fast Tying Speed (Under 1 Second)
  • Large Capacity Tying up to #7 x #8
  • One-Handed Operation
  • Brushless Twisting Motor

Features

  • Adjustable wrapping allows the user to select between 3 or 4 wraps per tie for varying project requirements.
  • The brushless motor provides higher energy efficiency and a longer tool life compared to traditional brushed motors.
  • Compatible with 21-gauge TW898 series tie wire, including Buy America compliant options.
  • Ergonomic design helps prevent carpal tunnel syndrome and other repetitive strain injuries.

Includes

  • RB518 Rebar Tying Tool
  • 14.4V Lithium-Ion Battery (JPL91440A)
  • Battery Charger (JC928)
  • Belt Hook
  • Plastic Carrying Case
  • Owner's Manual
Products specifications
Weight 5.3 lbs
Dimensions 12 inch(H) x 4-1/8 inch(W) x 12 inch(L)
Rebar Size Capacity #5 x #5 to #7 x #8
Wire Gauge 21 Gauge
Tie Speed Less than 1 second
Wraps per Tie 3 or 4 wraps
Battery Type 14.4V Lithium-Ion
Ties per Coil 75 to 90 ties
Ties per Charge Approx. 2,200 to 3,200 ties
Motor Type Brushless
*
*
*
