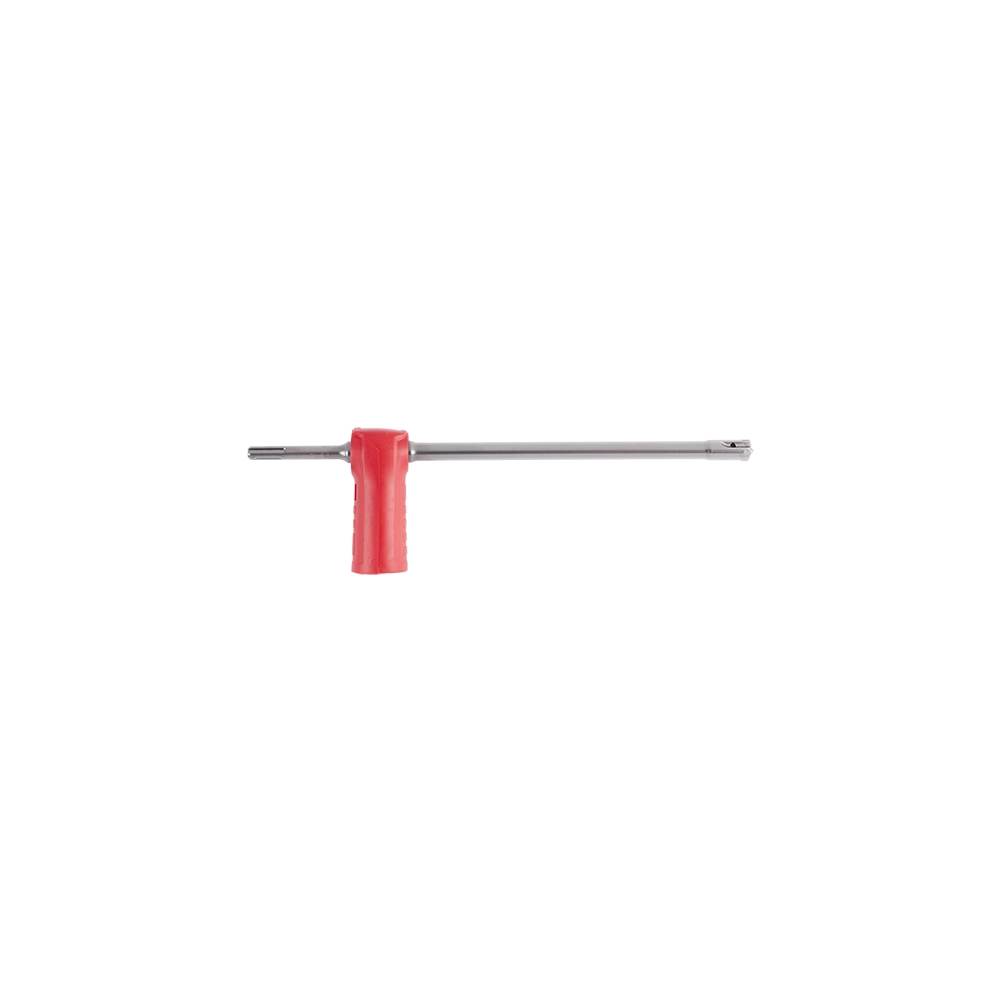

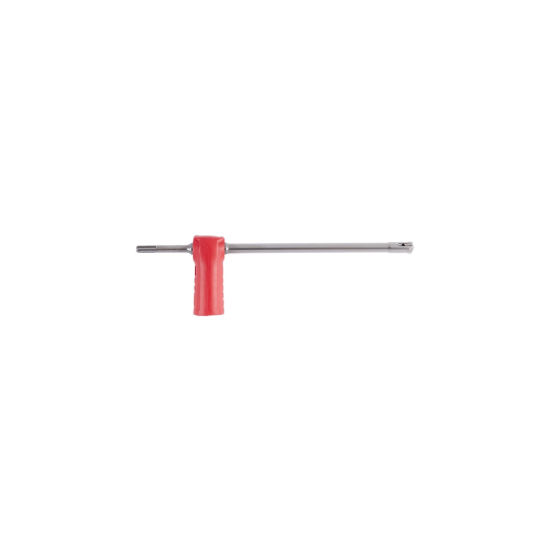

Milwaukee SDS Plus Vacuum Drill Bit - 1/2" x 7-7/8" x 13"

Item #: I052735
Mfr. #: 48-20-2106
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: Call for pricing
i h h

Description

The Milwaukee SDS+ Vacuum Bit (48-20-2106) is engineered to significantly reduce airborne silica dust during chemical anchor preparation, enhancing both safety and productivity. Its innovative design features dust extraction holes at the bit tip and a hollow shaft that effectively removes dust as you drill, meeting OSHA Table 1 compliance for respirable crystalline silica dust when used with a vacuum. This bit streamlines the process by creating clean holes ready for anchor installation, eliminating the need for traditional cleaning methods and potentially doubling preparation speed. The durable 4-cutter carbide tip ensures longevity in concrete and rebar applications, while the universal adapter provides compatibility with most common dust extractors.
  • Reduces airborne silica dust
  • OSHA Table 1 compliant
  • Up to 2x faster chemical anchor preparation

Features

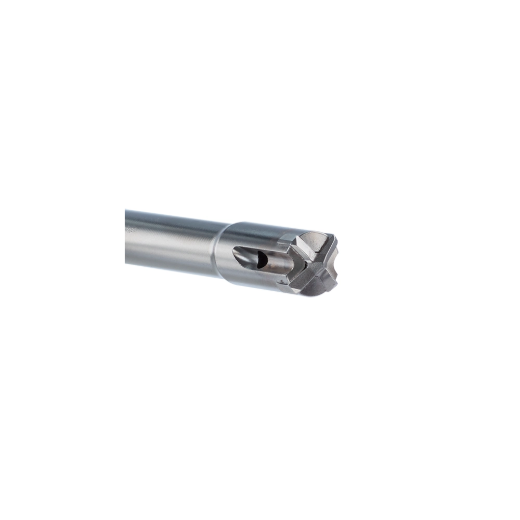

  • Combination of dust extraction holes at the bit tip and hollow shaft design for effective dust removal during drilling.
  • 4-Cutter carbide tip for durability in concrete and concrete with rebar applications.
  • Universal adapter fits most common dust extractor attachments.
  • Leaves clean holes ready for chemical anchor installation, eliminating the 'blow-brush-blow' cleaning method.

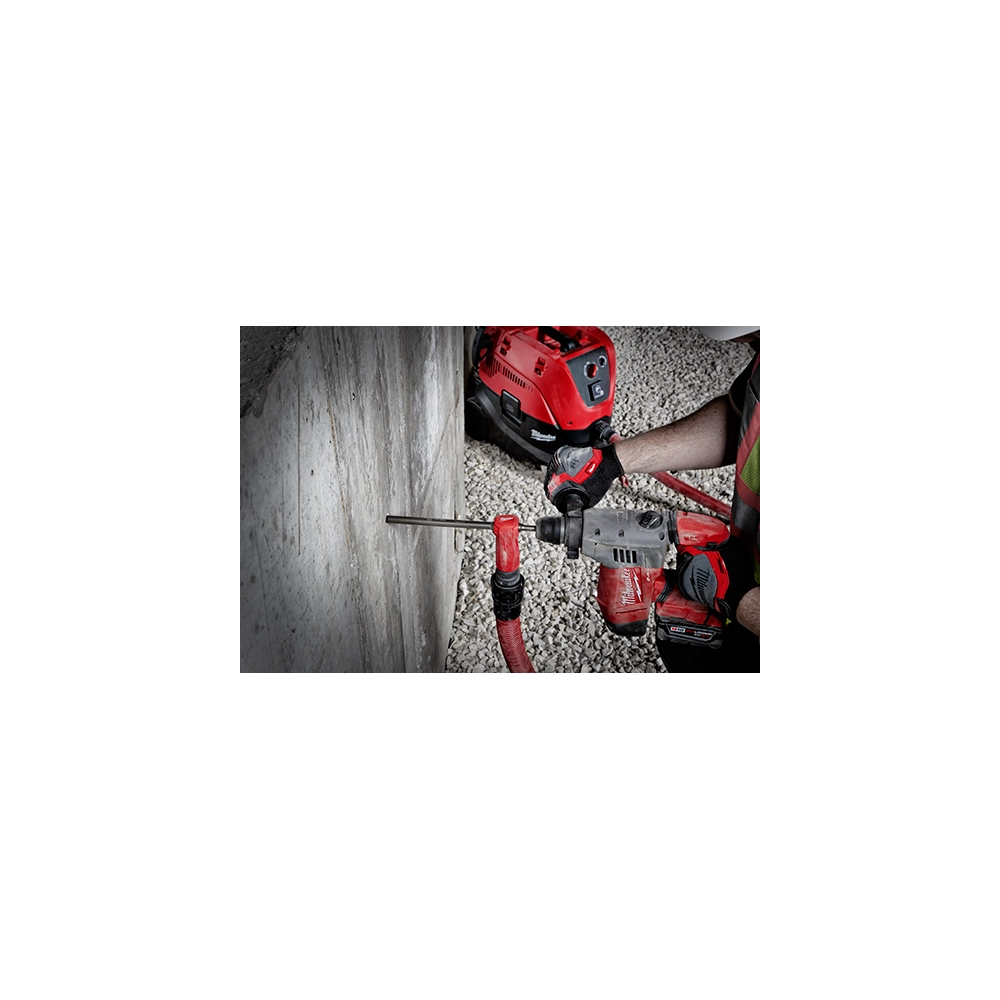

  • Use in SDS-Plus Rotary Hammers in rotary hammer mode.

Includes

  • (1) SDS+ VAC BIT 1/2' x 7-7/8' x 13' (48-20-2106)
  • (1) SDS+ Vacuum Bit Adapter (48-20-2100)
Products specifications
Shank Diameter (Decimal Inch) 0.5000
Shank Diameter (Inch) 1/2
Flute Length (Decimal Inch) 1.0000
Flute Length (Inch) 1
Minimum dust extractor power rating 1200 W
Minimum air flow 82 CFM
Minimum air pressure 92 water lift
Maximum dust extractor hose length 16ft. 5 inch (5 m)
Dust extractor hose diameter 1.25 (32 mm) or larger
Drill Bit Size (Inch) 1/2
Diameter 1/2 inch
Usable Length 7-7/8 inch
Part Number 48-20-2106
Shank Type SDS PLUS
Overall Length 13 inch
Standards ANSI B212.15
Drill Bit Size (Decimal Inch) 0.5625
Material Carbide Tipped
Number of Flutes 4
*
*
*
