Minnich A-1-24 Series Single Gang On-Grade Drill

Mfr.: Minnich Manufacturing
Item #: I070725
Mfr. #: A-1-24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $12,095.00
i h h

Description

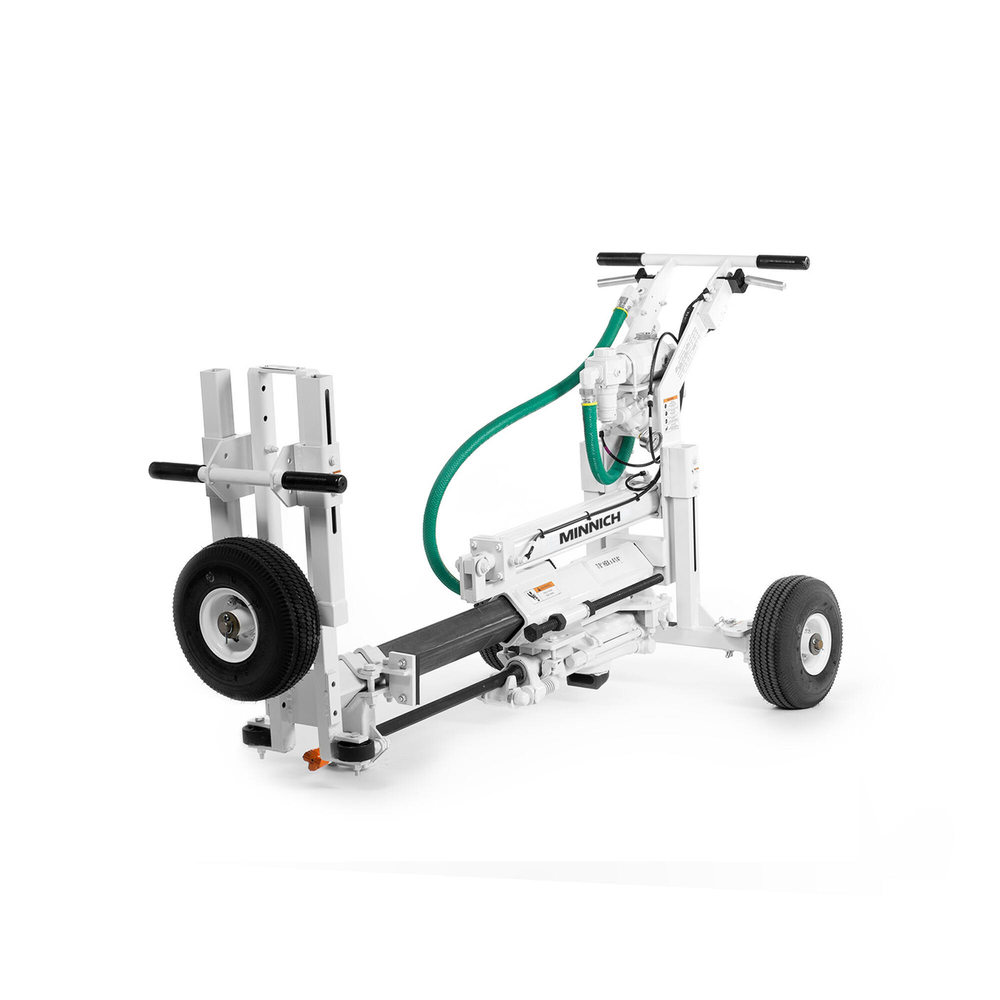

The Minnich A-1-24 is a versatile and efficient single-drill, on-grade pneumatic unit specifically designed for drilling dowel bars and anchors in mass concrete. This compact machine is engineered to maximize productivity in tight spaces, fitting comfortably into cutouts as narrow as 24 inches without removing its wheels. By allowing for horizontal, vertical, wall, and corner drilling configurations, it eliminates the need for expensive conversion kits while significantly reducing labor costs and operator fatigue.
  • Fits 24-inch cutouts with wheels on for easy repositioning
  • Four-way drilling capability: Horizontal, Vertical, Wall, and Corner

Features

  • Equipped with a dual-trigger grip system that enhances safety by requiring active engagement to facilitate movement and drilling.
  • Features pivoting wheels that allow for lateral movement within the cutout, ensuring precise positioning with minimal strain.
  • Low maintenance design with adjustable drill height and depth to suit varying project specifications.
  • Eliminates Hand-Arm Vibration (HAV) by providing a stable, wheeled platform for the 15 lb rock drill.

Includes

  • 15 lb Pneumatic Rock Drill
  • Pivoting Wheel Kit for mobile repositioning
  • Dual Trigger Safety Grips
  • Operator/Service Manual
Products specifications
Model A-1-24
Drill Steel Shank .875 inch x 3.25 inch
Drill Steel Length 9 inch (Under Collar)
Drill Bit Diameter .625 inch - 1.00 inch
Maximum Hole Depth 7 inch
Minimum Cutout Width 24 inch
Distance From Top of Slab 3 inch - 12 inch
Required Air (SCFM) 36
Required PSIG 90 - 100
Weight 150 lbs
*
*
*
