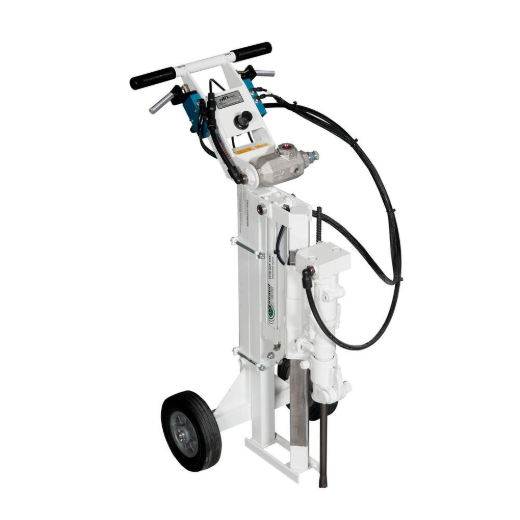

Minnich A-1-24 UTL Utility Pneumatic Concrete Drill

Mfr.: Minnich Manufacturing
Item #: I070722
Mfr. #: A-1-24 UTL
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $9,440.00
i h h

Description

The Minnich A-1-24 UTL is a powerful and compact pneumatic concrete drill specifically engineered for the utilities sector and confined space applications. Its lightweight design and minimal air requirements make it a superior alternative to electric hammer drills for pinning temporary concrete barriers and precision drilling in tight quarters. Capable of both horizontal and vertical drilling, this versatile unit eliminates the need for multiple machines on-site, significantly boosting productivity and reducing labor costs.
  • Lightweight and Portable Design

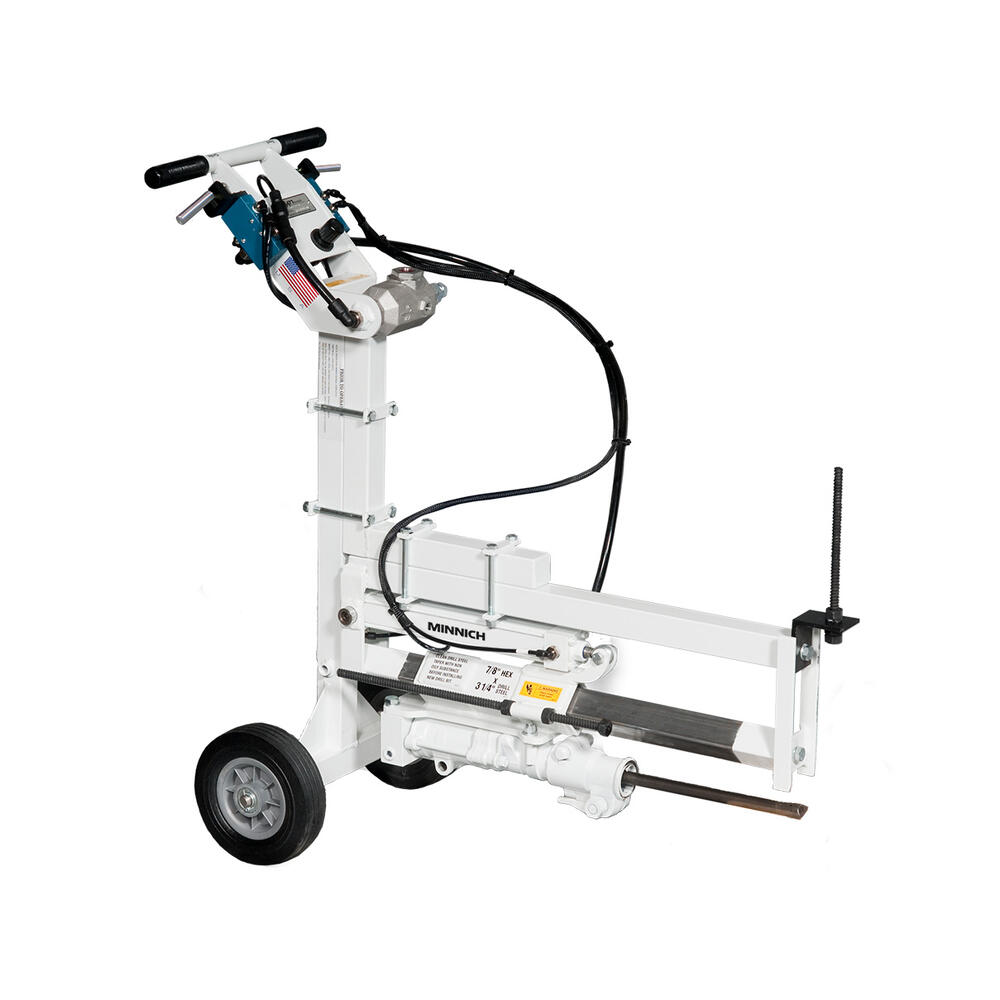

  • Dual-Position Drilling (Horizontal & Vertical)
  • Low Air Consumption for Maximum Efficiency

Features

  • Compact footprint designed to fit perfectly within a 24-inch opening for utility trenches and barriers.
  • Equipped with a 15 lb hammer for reliable performance in standard concrete applications.
  • Integrated swivel wheel kit allows for effortless lateral movement and rapid repositioning between drill sites.
  • Optional dust collection system available to minimize jobsite debris and meet silica dust regulations.

Includes

  • A-1-24 UTL Utility Drill Unit
  • 15 lb Pneumatic Hammer
  • Integrated Swivel Wheel Kit
  • Dual-Trigger Safety Handle System
Products specifications
Drill Bit Diameter 0.625 inch - 1.00 inch (15.9 mm to 25.4 mm)
Drill Steel Length 9 inch (22.9 cm)
Drill Steel Shank .875 inch x 3.25 inch (22.2 mm x 82.6 mm)
Required Pressure (PSIG) 84.5 PSIG (5.8 BAR)
Drilling Positions Horizontal & Vertical
Required Air (SCFM) 32 SCFM (0.9 m3/min)
Hammer Weight 15 lbs
Series A-1 Series On-Grade Utility
Model A-1-24 UTL
Maximum Drill Depth 7 inch (177 mm)
Minimum Cutout Width 24 inch (609 mm)
Operating Weight 75 lbs (34 kg)
*
*
*
