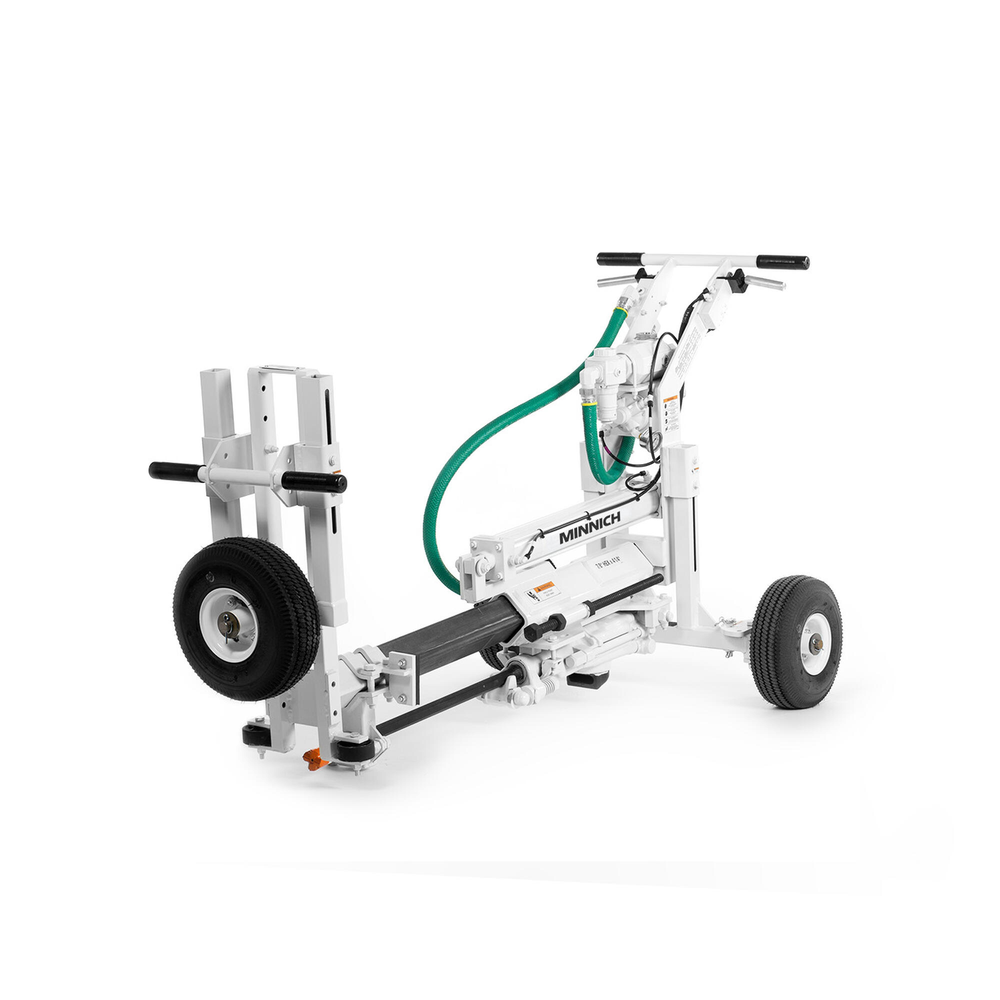

Minnich A-1-30 Single Gang On-Grade Drill

Mfr.: Minnich Manufacturing
Item #: I070726
Mfr. #: A-1-30
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $12,095.00
i h h

Description

The Minnich A-1-30 is a versatile, single-drill on-grade pneumatic unit designed to maximize productivity in confined spaces. Specifically engineered to fit into 30-inch openings, this compact powerhouse eliminates the need for expensive conversion kits by offering quick configuration for horizontal, vertical, wall, and corner drilling. Its lightweight design and included wheel kit make it easy for a single operator to maneuver and reposition on the job site. This drill is ideal for patchwork, full-depth repairs, and dowel bar installations where precision and speed are critical.
  • Four-Way Configuration: Easily switches between horizontal, vertical, wall, and corner drilling.
  • Compact Footprint: Specifically designed to operate effectively within 30-inch cutouts.
  • Dual-Trigger Safety: Features a safety-first grip system that allows operators to halt drilling action instantly by releasing the handle.

Features

  • Zero-Clearance Wall Drilling: Specialized configuration allows for precision drilling directly against vertical walls.
  • Corner Accuracy: Can be configured with a single wheel to drill as close as six inches from a corner.
  • Powerful 30 lb Drill: Utilizes a high-performance pneumatic hammer capable of delivering 2,700 blows per minute.
  • Durable Construction: Built with a rugged steel frame to withstand the demands of heavy-duty concrete applications.

Includes

  • 30 LB Pneumatic Drill Unit
  • On-Grade Wheel Kit
  • Hand Grip Controls
  • Operator/Service Manual
Products specifications
Model A-1-30
Drill Weight 30 lbs
Unit Total Weight 170 lbs
Minimum Cutout Width 30 inch
Drill Steel Shank (Chuck Size) 7/8 inch x 3-1/4 inch (.875 inch x 3.25 inch)
Drill Steel Length 12 inch under collar
Drill Bit Diameter Range 5/8 inch to 1-5/8 inch (.625 inch - 1.625 inch)
Maximum Drill Depth 10 inch
Drill Distance from Top of Slab 3 inch to 12 inch
Air Consumption 73 CFM (75 SCFM required)
Operating Pressure 90 PSIG
Blows Per Minute 2700
Air Inlet 3/4 inch NPT
*
*
*
