Minnich A-1-30 UTL 30LB Single Gang On-Grade Drill

Mfr.: Minnich Manufacturing
Item #: I070724
Mfr. #: A-1-30 UTL 30LB
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $10,030.00
i h h

Description

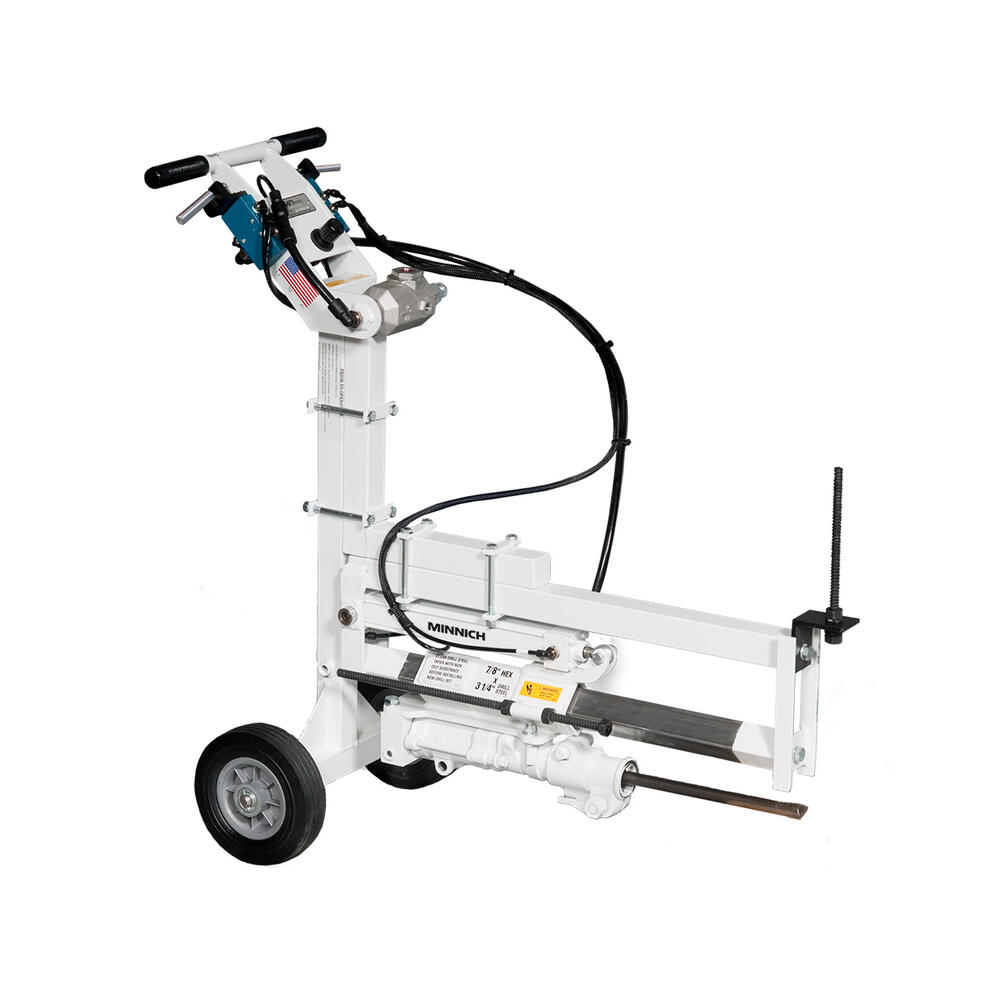

The Minnich A-1-30 UTL is a versatile, high-performance pneumatic single-gang concrete drill designed specifically for efficiency in confined spaces. This model is engineered to fit into 30-inch openings, making it an ideal choice for on-grade utility projects and dowel pin drilling. With its lightweight 30 lb hammer and flexible configuration, operators can achieve precise results in multiple orientations without the need for complex conversion kits.
  • Compact design fits into narrow 30' cutouts
  • Equipped with a high-impact 30 lb pneumatic hammer

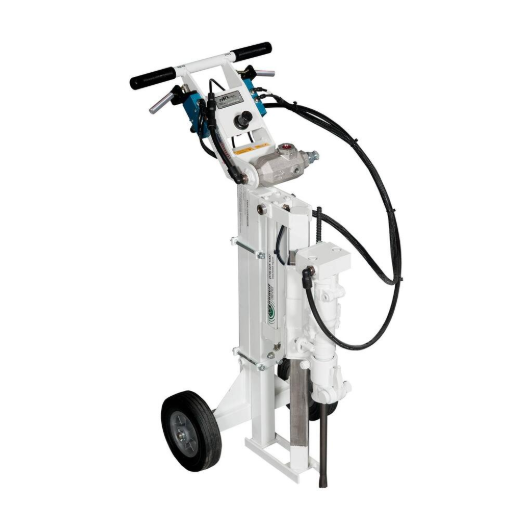

  • Dual-position drilling capability for horizontal and vertical applications

Features

  • Multi-Position Versatility: Can be easily adjusted for horizontal, vertical, wall, or corner drilling (up to 6' from corners).
  • Safety-First Control: Features a dual-trigger system that allows the operator to control drill movement and activation independently for enhanced safety.
  • Lateral Mobility: Includes a wheel kit with pivoting wheels to allow lateral movement within the cutout for more accurate hole alignment.
  • On-Grade Performance: Specifically designed for standard on-grade dowel pin drilling where speed and precision are critical.

Includes

  • 30 LB Pneumatic Hammer/Drill Tool
  • Integrated Wheel Kit with Pivoting Wheels
  • Dual-Trigger Safety Grip Handles
  • Adjustable On-Grade Frame
Products specifications
Drill Tool Weight 30 lbs
Minimum Cutout Width 30 inches
Maximum Drill Depth 10 inches
Drill Bit Diameter Range 0.625 inch - 1.625 inch (15.9mm - 41.3mm)
Drill Steel Shank Size 7/8 inch x 3-1/4 inch (.875 inch x 3.25 inch)
Drill Steel Length (Under Collar) 12 inches
Air Requirements (SCFM) 75 SCFM
Air Pressure Requirements (PSIG) 90 - 100 PSIG
Drilling Positions Horizontal, Vertical (4-way configurable)
Total Unit Weight Approx. 170 lbs
*
*
*
