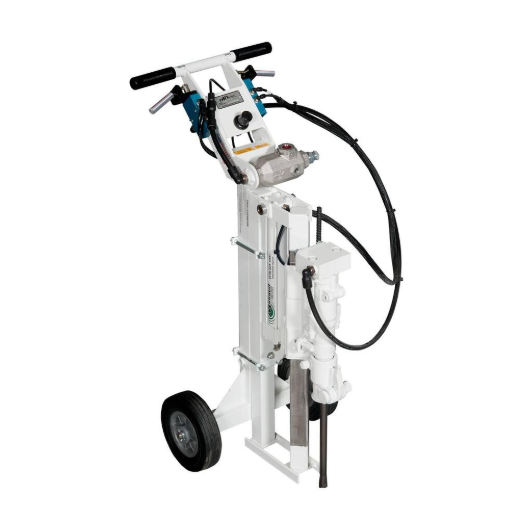

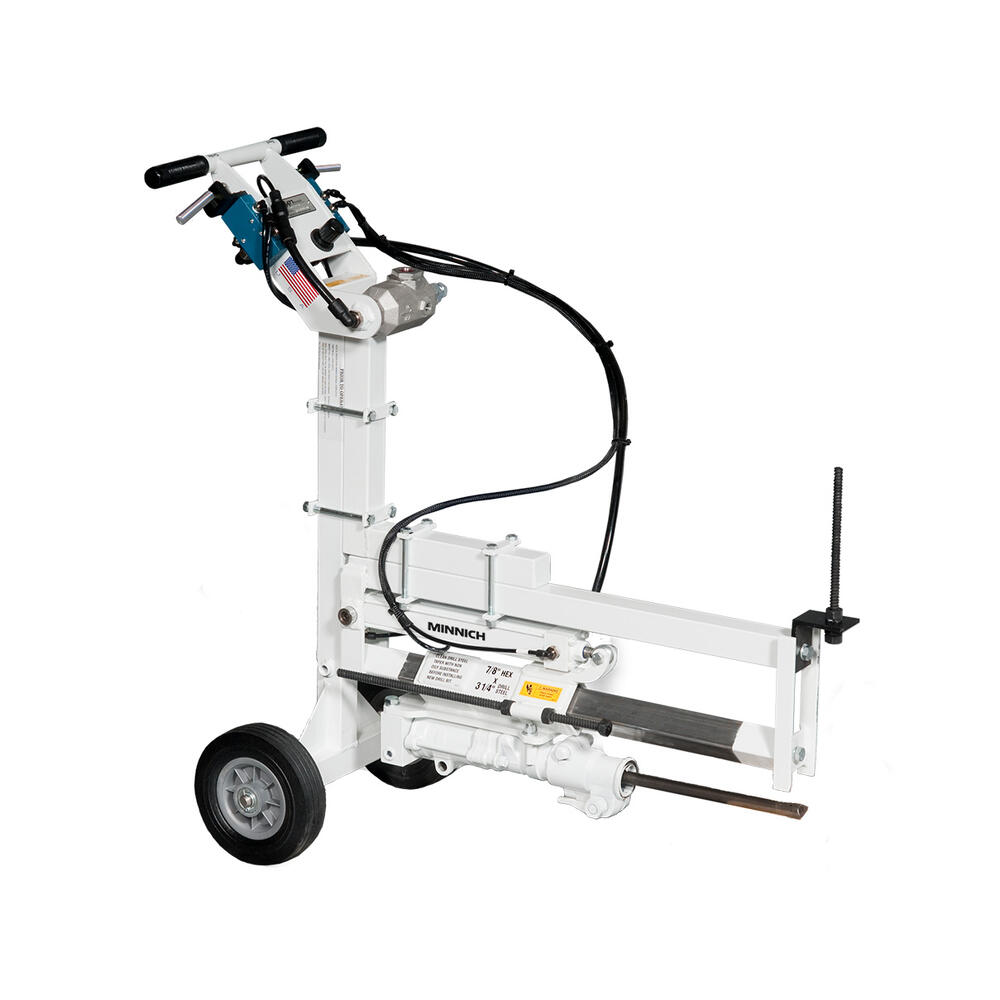

Minnich A-1-30 UTL Utility Pneumatic Concrete Drill

Mfr.: Minnich Manufacturing
Item #: I070723
Mfr. #: A-1-30 UTL
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $9,440.00
i h h

Description

The Minnich A-1-30 UTL is a versatile single pneumatic concrete drill specifically engineered for high performance in confined workspaces. This utility unit is designed to fit comfortably within a 30-inch opening and provides the flexibility of both horizontal and vertical drilling positions. By utilizing a lightweight 15 lb drill, it offers an efficient pneumatic alternative to electric hammer drills, making it ideal for installing anchor bolts, conduit, and HVAC ducts in tight quarters.
  • Dual-position drilling capability (Horizontal and Vertical)
  • Compact 30-inch cutout compatibility for tight-access jobs

Features

  • Configurable design eliminates the need for additional conversion kits for different drilling orientations.
  • Equipped with a dual-trigger system to enhance operator safety and provide precise control.
  • Low air consumption requirements allow for operation with smaller, more portable compressors.
  • Integrated dust collection system compatibility to maintain a cleaner and safer work environment.

Includes

  • Standard Wheel Kit for easy transport and lateral movement
  • Pneumatic Motor Unit (15 lb class)
  • Adjustable Speed Control and Quick-Change Chuck
Products specifications
Drill Bit Diameter Range 0.625 inch to 1.625 inch
Maximum Hole Depth 10 inches
Required Airflow 75 - 92.2 SCFM
Total Unit Weight Approx. 170 - 200 lbs
Required Pressure 75 - 100 PSIG
Drill Weight Class 15 lbs
Model A-1-30 UTL
Minimum Cutout Width 30 inches
Drill Steel Shank 7/8 inch x 3-1/4 inch (.875 inch x 3.25 inch)
Drill Positions Horizontal and Vertical
*
*
*
